Запчасти Case IH 1370 (258) - DECALS (09) - CHASSIS/ATTACHMENTS

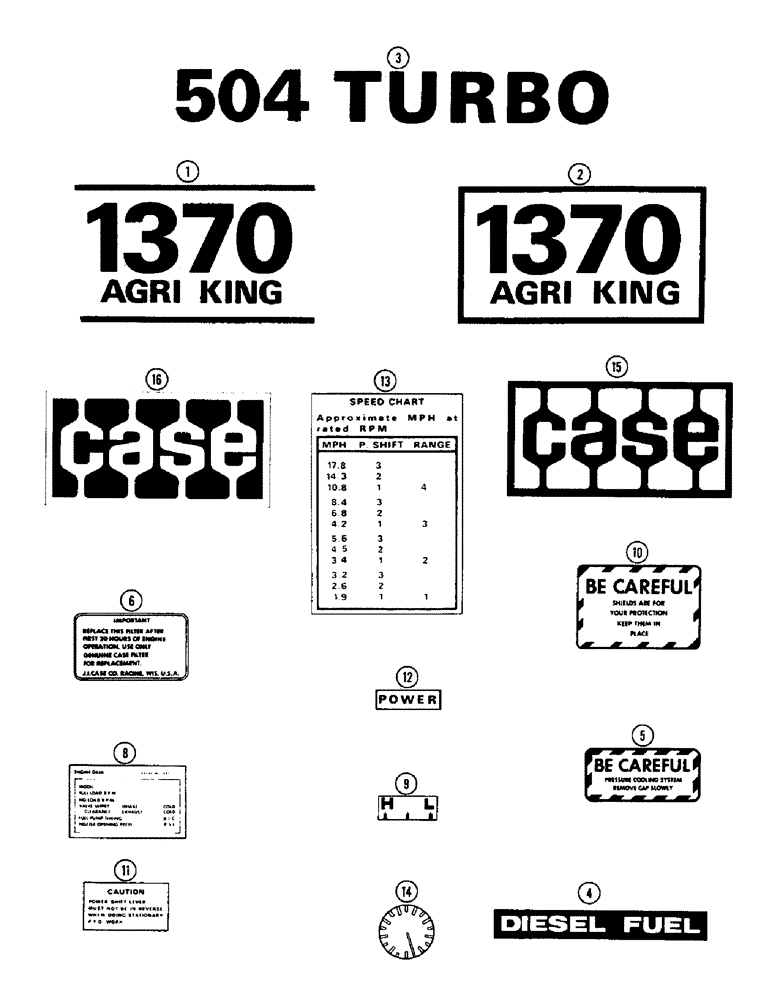

Схема запчастей Case IH 1370 - (258) - DECALS (09) - CHASSIS/ATTACHMENTS
15
14
16
2
4
10
12
6
1
11
9
13
3
5
8

Артикул

Название

Примечание

Количество

A43085

DECAL

KIT - 1370, Includes Ref: 1 - 16

1шт.

1

321-1987

DECAL

- 1370 Agri-King (Front side sheets)

2шт.

2

321-1966

DECAL

- 1370 Agri-King (Fuel tank)

1шт.

3

321-2061

DECAL

- 504 turbo (Decal panel)

2шт.

4

321-2168

X

DECAL - diesel fuel

1шт.

5

321-122

DECAL

- pressure cooling system

1шт.

6

321-367

DECAL

- engine oil filter change

2шт.

8

321-2321

DECAL

- engine data

1шт.

9

321-1335

DECAL

- seat adjustment indicator

1шт.

10

321-608

DECAL

- be careful (P.T.O.)

1шт.

11

321-1651

DECAL

- caution, power shift lever

1шт.

12

321-1623

DECAL

- power brake

1шт.

13

321-1968

DECAL

- 12 speed chart

1шт.

14

321-2056

DECAL

- flow control knob

1шт.

15

321-2600

DECAL

- "CASE" (On fuel tank)

1шт.

16

321-2163

DECAL

- "CASE" (On front side panel)

2шт.

20

321-2605

DECAL

- operating procedure, turbo engine

1шт.

Выбрано товаров: 17
