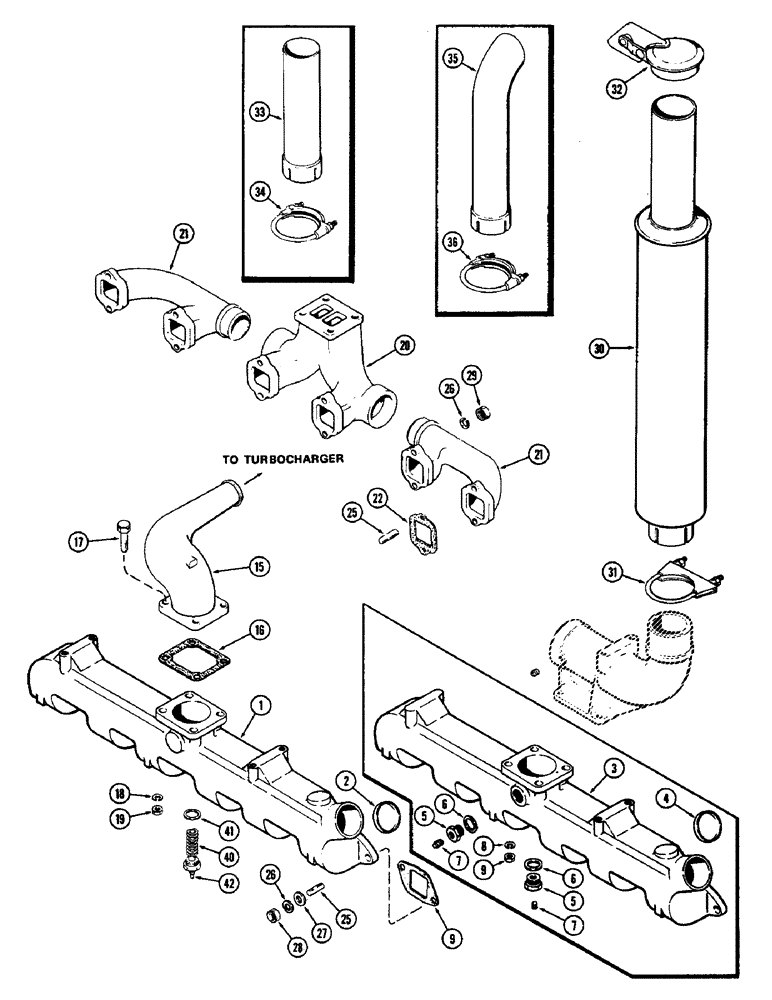

Запчасти Case IH 1370 (020) - MANIFOLDS AND MUFFLER, 504BDT, DIESEL ENGINE (02) - ENGINE

1

A62847

TUBE

MANIFOLD ASSY. - intake (Used prior to eng. ser. no. 2529467) (Order A66087), Includes Ref: 2

1шт.

2

41-1042

PLUG,Cup, 2 5/8"

- 2-5/8" cup

1шт.

3

A66087

MANIFOLD

ASSY. - intake, Includes Ref: 4 - 7

1шт.

4

41-1042

PLUG,Cup, 2 5/8"

- 2-5/8" cup

1шт.

5

L10283

PLUG

- heater hole (1-1/8"-12 N.F.)

2шт.

6

A20916

MANIFOLD GASKET

GASKET - plug

2шт.

7

221-41

PLUG

- pipe, 1/8" slotted headless

2шт.

9

A58662

MANIFOLD GASKET

- intake manifold

6шт.

15

A58903

ELBOW UNION

ELBOW - air intake, turbo-charger

1шт.

16

A58910

GASKET

- air intake elbow

1шт.

17

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

4шт.

18

92-6

LOCK WASHER,3/8"

4шт.

19

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex.

4шт.

20

A58906

TUBE

MANIFOLD - exhaust, center section

1шт.

21

A58907

EXHAUST MANIFOLD

MANIFOLD - exhaust, end section

2шт.

22

A58895

GASKET

- exhaust manifold

6шт.

25

A59077

STUD

- intake & exhaust manifolds

24шт.

26

92-6

LOCK WASHER,3/8"

24шт.

27

195-25

WASHER,3/8"

- 13/32 x 13/16 x 1/16"

12шт.

28

25-106

NUT,3/8"-16, G5

- 3/8" N.C. hex., intake manifold

12шт.

29

131-903

NUT,3/8"-16

NUT - 3/8" N.C. hex., Seezproof, exhaust manifold

12шт.

30

A64038

MUFFLER

1шт.

31

A17851

CLAMP

- muffler

1шт.

32

A62175

CYLINDER END CAP

CAP - muffler rain, w/o cab or canopy

1шт.

A62881

KIT

- extension, straight, Includes Ref: 33 and 34

1шт.

33

A61637

EXTENSION

- exhaust

1шт.

34

A62878

CLAMP

- muffler

1шт.

35

A62850

PIPE

EXTENSION - muffler, w/cab or canopy

1шт.

36

A62878

CLAMP

- muffler

1шт.

40

A37775

HEATER

ASSY. - intake manifold (12 V.)

1шт.

41

A20916

MANIFOLD GASKET

GASKET - heater, manifold

1шт.

42

129-503

NUT,1/4"-20, Brass

Manifold heater 1/4"-20, Brass

1шт.
