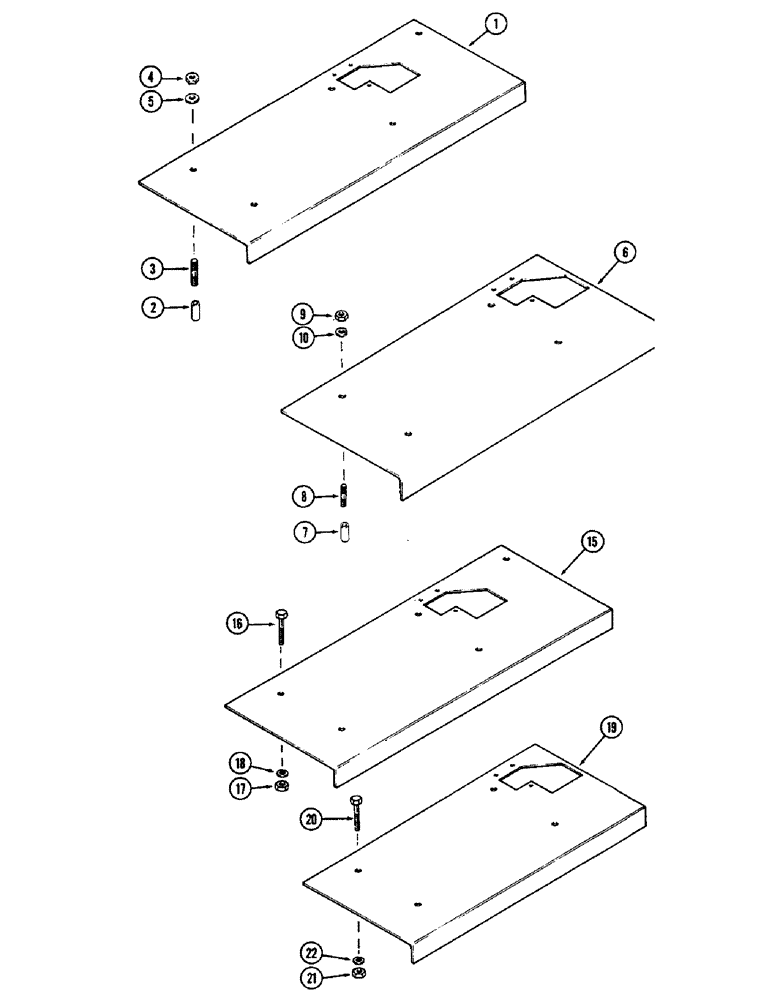

Запчасти Case IH 1370 (249A) - SEAT SUPPORT PLATE (09) - CHASSIS/ATTACHMENTS

1

A63647

PLATE

- support, seat suspension (See A63649), used prior to Trac. Ser. No. 8725979

1шт.

2

A65472

SPACER

- platform (13/32" I.D. x 2" high), used prior to Trac. Ser. No. 8725979

5шт.

3

A66428

PLATE

STUD - plate to platform (3/8" N.C. x 3-1/2"), used prior to Trac. Ser. No. 8725979

5шт.

4

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Used prior to tractor S/N 8725979 3/8"-16, G5

5шт.

5

195-104

WASHER,3/8"

- plain (7/16 x 1 x 5/64"0, used prior to Trac. Ser. No. 8725979

5шт.

6

A63649

PLATE

- support, seat suspension (w/L.H. control console), used prior to Trac. Ser. No. 8725979

1шт.

7

A65472

SPACER

- platform (13/32" I.D. x 2" high), used prior to Trac. Ser. No. 8725979

4шт.

8

A66428

PLATE

STUD - plate to platform (3/8" N.C. x 3-1/2"), used prior to Trac. Ser. No. 8725979

4шт.

9

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Used prior to tractor S/N 8725979 3/8"-16, G5

4шт.

10

195-104

WASHER,3/8"

- plain (7/16 x 1 x 5/64"), used prior to Trac. Ser. No. 8725979

4шт.

15

A63646

SUPPORT

ASSY. - seat suspension (See A63648), 1st used Trac. Ser. No. 8725979

1шт.

16

113-294

BOLT - (3/8 x 2-3/4" N.C. hex.), 1st used Trac. Ser. No. 8725979

5шт.

17

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.), 1st used Trac. Ser. No. 8725979

5шт.

18

92-6

LOCK WASHER,3/8"

1st used Trac. Ser. No. 8725979 3/8"

5шт.

19

A63648

SUPPORT

ASSY. - seat suspension (w/L.H. control console), 1st used Trac. Ser. No. 8725979

1шт.

20

113-294

BOLT - (3/8 x 2-3/4" N.C. hex.), 1st used Trac. Ser. No. 8725979

4шт.

21

25-106

NUT,3/8"-16, G5

- (3/8" N.C. hex.), 1st used Trac. Ser. No. 8725979

4шт.

22

92-6

LOCK WASHER,3/8"

1st used Trac. Ser. No. 8725979 3/8"

4шт.
