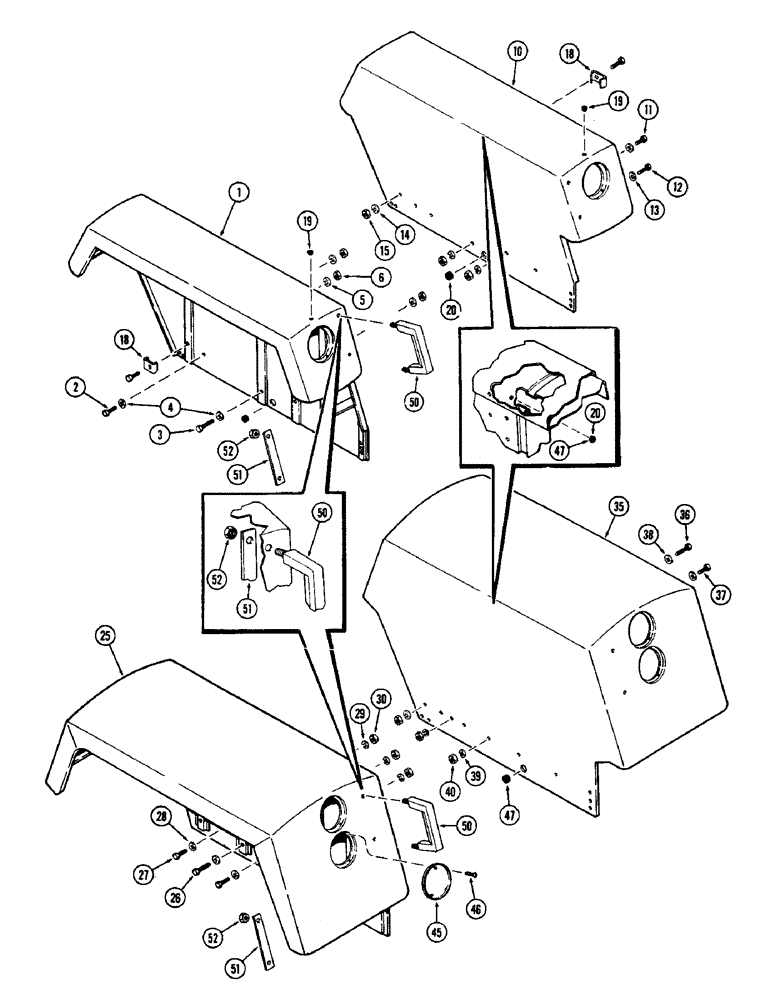

Запчасти Case IH 1370 (246) - FENDERS (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A64890
FENDER
ASSY. - 12" R.H. (Replaces A63774)
1шт.
2
113-262
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd
12" fender Hex, 3/8"-16 x 1 1/8", G5, Full Thd
1шт.
3
113-233
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
12" fender Hex, 3/8"-16 x 1 3/4", G5
6шт.
4
195-526
WASHER,7/16" x 7/8" x .083"
- 7/16 x 7/8 x 3/32",12" fender
7шт.
5
192-21
LOCK WASHER,3/8"
WASHER, LOCK, , 12" fender 3/8"
7шт.
6
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, , 12" fender 3/8"-16, G5
7шт.
10
A64891
FENDER
ASSY. - 12", L.H. (Replaces A63775)
1шт.
11
113-262
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd
12" fender Hex, 3/8"-16 x 1 1/8", G5, Full Thd
3шт.
12
113-233
BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5
12" fender Hex, 3/8"-16 x 1 3/4", G5
4шт.
13
195-526
WASHER,7/16" x 7/8" x .083"
- 7/16 x 7/8 x 3/32", 12" fender
5шт.
14
192-21
LOCK WASHER,3/8"
WASHER, LOCK, , 12" fender 3/8"
5шт.
15
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, , 12" fender 3/8"-16, G5
5шт.
18
A59318
BRACKET
- fender side sheet mounting, 12"
8шт.
19
353-405
PLUG,Dome, .562" hole, Nylon
- 9/16" button, 12" fender
2шт.
19
A63779
HOLE PLUG BUTTON,17/32"
PLUG - button (R.H. fender), 12" 17/32"
1шт.
20
A59722
GROMMET
- wire harness, 12" fender
2шт.
25
A64892
FENDER
ASSY. - 24", R.H. (Replaces A63780)
1шт.
26
113-257
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
24" fender Hex, 3/8"-16 x 2 1/2", G5
6шт.
27
113-262
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd
24" fender Hex, 3/8"-16 x 1 1/8", G5, Full Thd
1шт.
28
195-526
WASHER,7/16" x 7/8" x .083"
- 7/16 x 7/8 x 3/32", 24" fender
7шт.
29
192-21
LOCK WASHER,3/8"
WASHER, LOCK, , 24" fender 3/8"
7шт.
30
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, , 24" fender 3/8"-16, G5
7шт.
35
A64893
FENDER
ASSY. - 24", L.H. (Replaces A63781)
1шт.
36
113-219
BOLT,Hex, 3/8" - 16 x 2", Gr 5
24" fender Hex, 3/8"-16 x 2", G5
2шт.
37
113-257
BOLT,Hex, 3/8" - 16 x 2-1/2", Gr 5
- 3/8 x 2-1/4" N.C. hex., 24" fender
4шт.
37
113-262
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5, Full Thd
24" fender Hex, 3/8"-16 x 1 1/8", G5, Full Thd
1шт.
38
195-526
WASHER,7/16" x 7/8" x .083"
- 7/16 x 7/8 x 3/32", 24" fender
5шт.
39
192-21
LOCK WASHER,3/8"
WASHER, LOCK, , 24" fender 3/8"
5шт.
40
129-103
NUT,Hex, 3/8" - 16, Gr 5
NUT, , 24" fender 3/8"-16, G5
5шт.
45
A59330
COVER
- cultivator light opening, 24" fender
2шт.
46
187-1050
SCREW
- #10 x 1/2" N.C. type "T" tap, 24" fender
6шт.
47
A59722
GROMMET
- wire harness, 24" fender
2шт.
A63779
HOLE PLUG BUTTON,17/32"
PLUG - button (R.H. fender), 24" 17/32"
1шт.
50
A60530
HANDLE
- L.H. fender, used prior to Trac. SN 8693037
1шт.
51
A59338
PLATE
- handle mounting, used prior to Trac. SN 8693037
1шт.
52
230-4216
LOCK NUT,3/8"-16, GA
NUT - 3/8" N.C. hex., lock, handles, used prior to Trac. S/N 8693037
4шт.
175-467
BOLT,Sl Truss Hd, 3/8" - 16 x 5/8"
SCREW - 3/8 x 5/8" N.C. sltd. truss hd. (See note), handles, used prior to Trac. SN 8693037
1шт.
92-6
LOCK WASHER,3/8"
(See note), handles, used prior to Trac. SN 8693037 3/8"
1шт.
25-106
NUT,3/8"-16, G5
- 3/8" N.C. hex. (See note), handles, used prior to Trac. SN 8693037
1шт.
353-403
PLUG,Dome, .437" hole, Nylon
Lower hole (RH 12" fender) (Used w/o handle), Used prior to Trac. S/N 8693037 Dome, .437" hole, Nylon
1шт.
Выбрано товаров: 40
