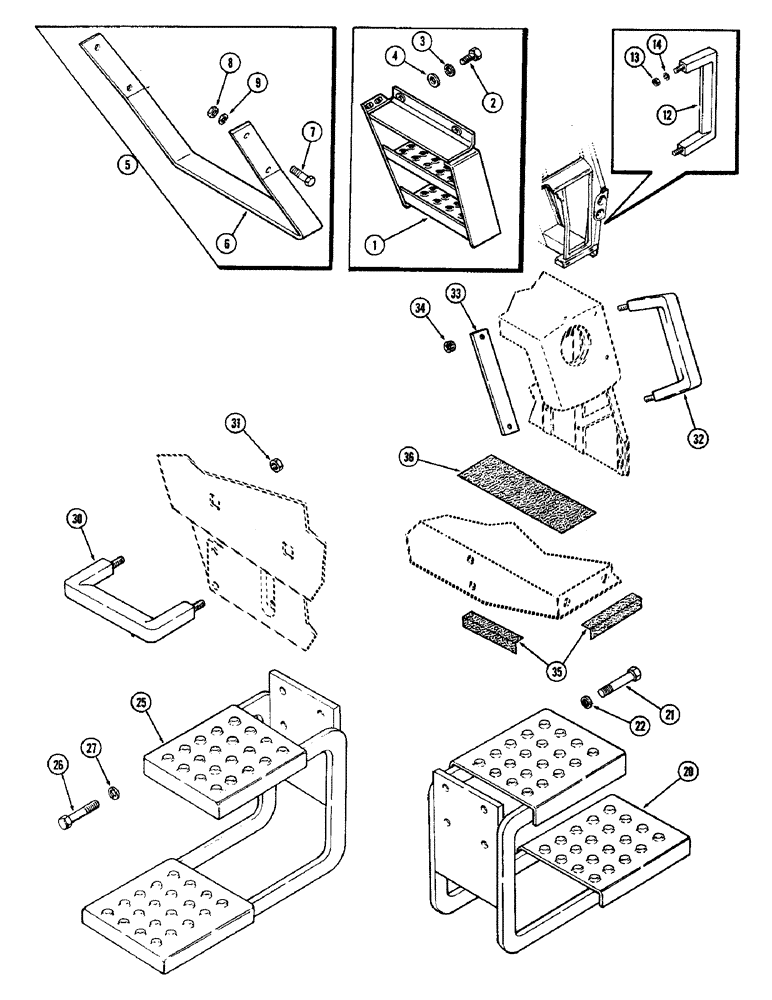

Запчасти Case IH 1370 (244) - STEPS (09) - CHASSIS/ATTACHMENTS

1

F89730

STEP

- cab mounting, with

1шт.

2

113-206

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

with cab Hex, 3/8"-16 x 3/4", G5, Full Thd

4шт.

3

193-21

WASHER - lock (3/8"), with cab

4шт.

4

195-526

WASHER,7/16" x 7/8" x .083"

- plain, 7/16 x 7/8 x 3/32", with cab

4шт.

5

A65003

STEP

ATTACHMENT - extension, step lowering (Mach. item), with cab, Includes Ref: 6 - 9

1шт.

6

NSS

NOT SOLD SEPARAT

STEP - extension (Order A65003), with cab

1шт.

7

113-410

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5, Full Thd

w/ Cab Hex, 1/2"-13 x 1 1/2", G5, Full Thd

4шт.

8

129-105

NUT,Hex, 1/2" - 13, Gr 5

w/Cab 1/2"-13, G5

4шт.

9

192-23

LOCK WASHER,1/2"

WASHER, LOCK, , w/Cab 1/2"

4шт.

12

A60530

HANDLE

- cab mounting, with

1шт.

13

129-770

NUT,3/8"-16, G5

- (3/8" N.C. hex.), with cab

2шт.

14

192-46

LOCK WASHER,3/8"

WASHER, LOCK, , w/Cab 3/8"

2шт.

20

A63285

SHAFT

STEP - L.H., tractor mounting, without cab

1шт.

21

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

without cab Hex, 5/8"-11 x 3", G5

4шт.

22

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , without Cab 5/8"

4шт.

A63824

ATTACHMENT - R.H. mounting step (Mach. item), without cab, Includes Ref: 25 - 36

1шт.

25

A63825

STEP

- R.H. mounting, without cab

1шт.

26

13-1048

BOLT,Hex, 5/8" - 11 x 3", Gr 5

without cab Hex, 5/8"-11 x 3", G5

4шт.

29

92-10

LOCK WASHER,5/8"

WASHER, LOCK, , without Cab 5/8"

4шт.

30

A63828

HANDLE

- mounting, hood R.H., without cab

1шт.

31

230-4216

LOCK NUT,3/8"-16, GA

NUT - lock (3/8" N.C. hex.), without cab

2шт.

32

A60530

HANDLE

- mounting, R.H. fender, without cab

1шт.

33

A59338

PLATE

- mounting, fender handle, without cab

1шт.

34

230-4216

LOCK NUT,3/8"-16, GA

NUT - lock (3/8" N.C. hex.), without cab

2шт.

35

A62468

TREAD

- non-slip (2 x 6"), without cab

2шт.

36

A62469

COVER

TREAD - non-slip (4 x 12"), without cab

1шт.
