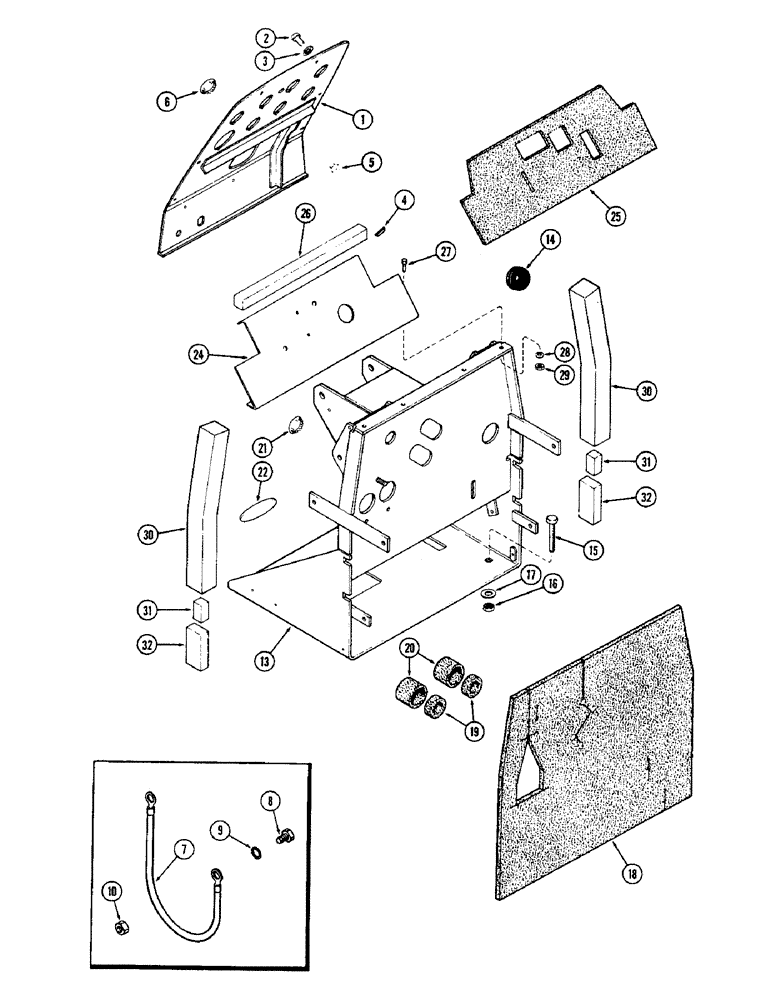

Запчасти Case IH 1370 (240) - INSTRUMENT PANEL (09) - CHASSIS/ATTACHMENTS

1

A64901

PANEL

ASSY. - instrument

1шт.

2

A63896

SCREW,Hex, #10 - 32 x 7/8"

- #10 x 7/8" N.F. hex. hd., mach. (Brass)

6шт.

3

193-93

LOCK WASHER,#10

WASHER - Shakeproof, int. #10

6шт.

4

195-103

WASHER,5/16"

- 3/8 x 7/8 x 3/32"

6шт.

5

A63897

NUT

- #10 N.F. well (Neoprene)

6шт.

6

353-411

PLUG,Dome, 1.000" hole, Nylon

1шт.

7

A64704

STRAP

- grounding

1шт.

8

113-1

BOLT,Hex, 1/4" - 20 x 1/2", Gr 5

1шт.

9

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, Ext-Int Tooth, 1/2"

2шт.

10

7770

NUT,Hex, 1/4 - 20, Cl 5

1/4"-20, G5

1шт.

13

A64157

ASSEMBLY

FIREWALL ASSY.

1шт.

14

A59719

GROMMET

- firewall, 1-1/8 x 2-1/2 x 1/2"

1шт.

15

13-832

BOLT,Hex, 1/2" - 13 x 2", Gr 5

Firewall Hex, 1/2"-13 x 2", G5

4шт.

16

25-108

NUT,1/2"-13, G5

- 1/2" N.C. hex., firewall

4шт.

17

92-8

LOCK WASHER,1/2"

firewall 1/2"

4шт.

18

A63055

PAD

- acoustical, firewall

1шт.

19

A61287

COLLAR

- inner, brake cylinder seal, firewall

2шт.

20

A61288

COLLAR

- outer, brake cylinder seal, firewall

2шт.

21

205-61

HOLE PLUG BUTTON,1 1/2"

PLUG - 1-1/2" button, firewall

2шт.

22

A63059

COVER

- diff. lock (Used w/o diff. lock only), firewall

1шт.

24

A64159

BAFFLE

ASSY. - engine firewall, Includes Ref: 25 and 26

1шт.

25

A64160

PAD

- acoustical, baffle (See note), firewall

1шт.

26

A64161

BAFFLE

- air (See note), firewall

1шт.

27

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Firewall Hex, 1/4"-20 x 3/4", G5, Full Thd

4шт.

28

92-4

LOCK WASHER,1/4"

WASHER, LOCK, , Firewall 1/4"

4шт.

29

25-104

NUT,1/4"-20, G5

Firewall 1/4"-20, G5

4шт.

30

A64129

BAFFLE

- firewall, upper (See note)

2шт.

31

A63056

BAFFLE

- firewall, center (See note)

2шт.

32

A65939

SEAL

BAFFLE - firewall, lower (See note) (Replaces A63057)

2шт.
