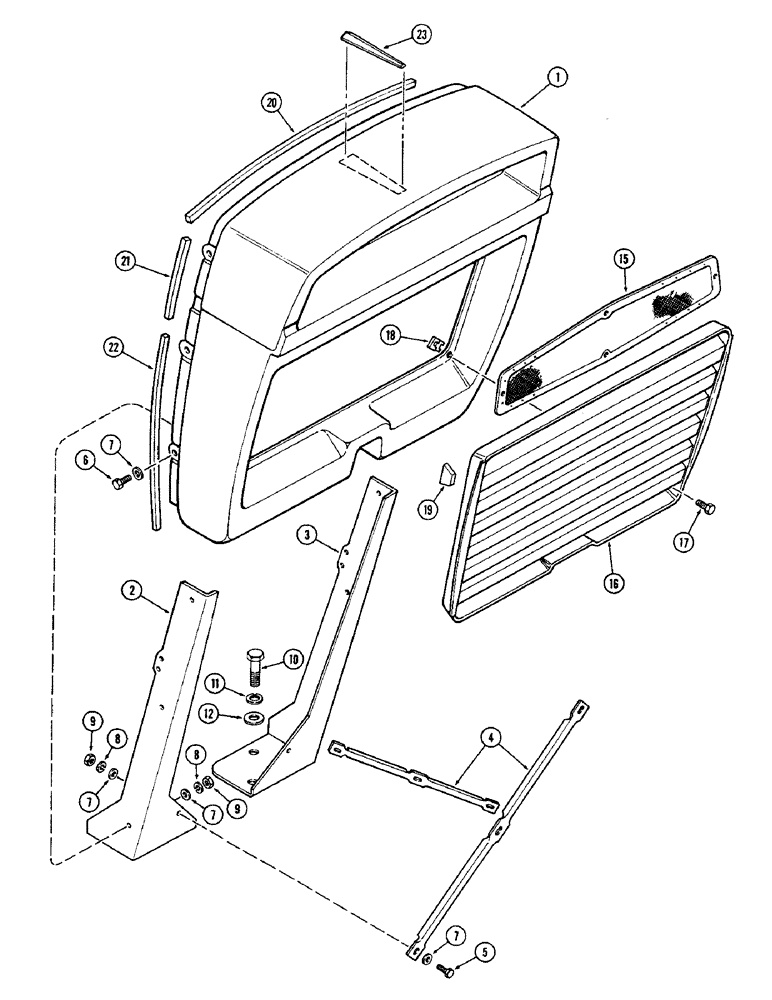

Запчасти Case IH 1370 (238) - GRILLE (09) - CHASSIS/ATTACHMENTS

1

A63962

NO LONGER SERVICED

GRILLE ASSY. - fiberglass, Includes Ref: 2 - 9

1шт.

2

NSS

NOT SOLD SEPARAT

SUPPORT - grille, R.H.

1шт.

3

NSS

NOT SOLD SEPARAT

SUPPORT - grille, L.H.

1шт.

4

NSS

NOT SOLD SEPARAT

BRACE - grille support

2шт.

5

113-102

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

Hex, 5/16"-18 x 3/4", G5, Full Thd

5шт.

6

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

6шт.

7

195-522

WASHER,5/16"

- 3/8 x 3/4 x 1/16"

22шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

11шт.

9

129-518

NUT,5/16"-18, G5

- 5/16" N.C. hex.

11шт.

10

13-1232

BOLT,Hex, 3/4" - 10 x 2", Gr 5

4шт.

11

192-67

WASHER,3/4"

LOCK, 3/4"

4шт.

12

195-45

WASHER,3/4"

4шт.

15

A63832

AIR CLEANER

SCREEN - upper

1шт.

16

A63835

SCREEN

- lower

1шт.

17

169-154

SCREW,Phil Fil Hd, 5/16" - 18 x 3/4"

- 5/16 x 3/4" N.c. hex., sltd.

8шт.

18

131-616

NUT,Ret, J, 5/16"-18

RETAINER - Tinnerman, "J" type

8шт.

19

A63839

FOAM - grille screen

12шт.

20

A63831

STRIP

SEAL - grille, center (See note) (13/16 x 1/2 x 26")

1шт.

21

A59747

GASKET

SEAL - grille side, upper (See note) (13/16" sq. x 8-1/2")

2шт.

22

A59748

GASKET

SEAL - grille, lower (See note) (13/16" sq. x 20-3/4")

2шт.

23

A62690

GUARD

TRIM - grille, sight gauge

1шт.
