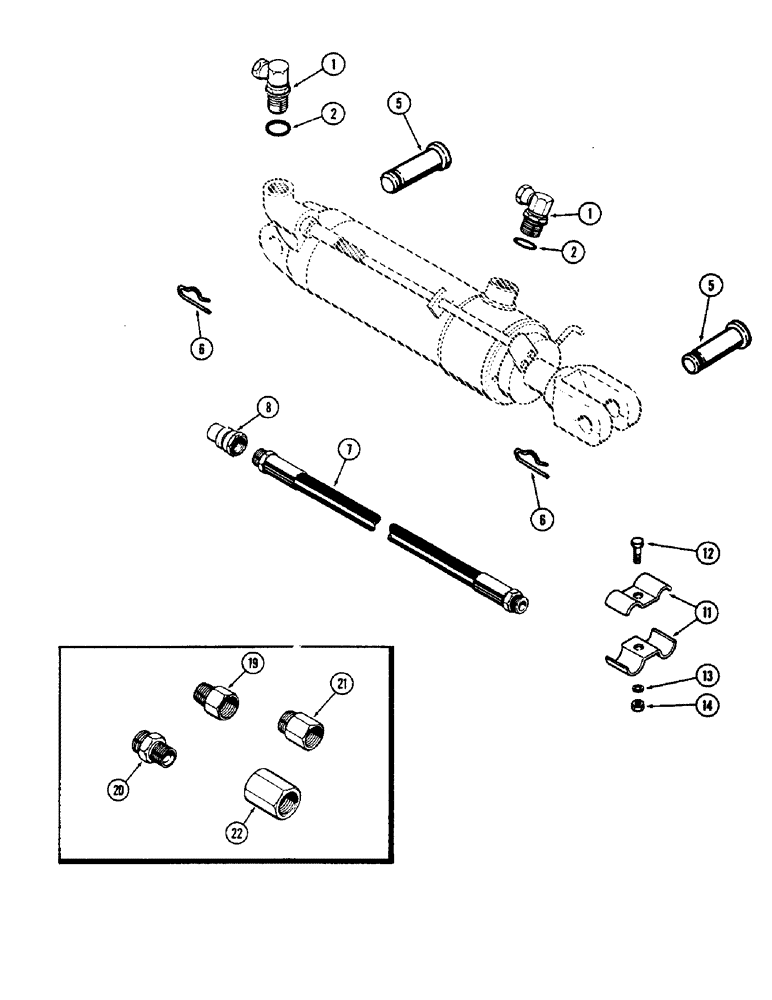

Запчасти Case IH 1370 (233A) - D.O.M. SYSTEM, HYDRAULIC CYLINDER ATTACHING PARTS (09) - CHASSIS/ATTACHMENTS

1

218-5201

90 ELBOW,90 Degree, 7/8"-14 O-Ring x 1/2" NPSM Fem

ASSY. - 90 degrees adapter, Includes Ref: 2

2шт.

2

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - 3/4 x 15/16 x 3/32"

1шт.

5

A27347

PIN

- cylinder retaining

2шт.

6

A29054

HAIR PIN COTTER

- internal hair

2шт.

7

A20816

HOSE

- hydraulic, 106" long

1шт.

7

A20817

HOSE

- hydraulic, 118" long

1шт.

8

A28541

COUPLING, BREAK AWAY

COUPLING ASSY. - break-away, male half (See Figure 180)

1шт.

11

A27440

CLAMP

- hose

2шт.

12

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

1шт.

13

92-5

LOCK WASHER,5/16"

1шт.

14

9635082

NUT,5/16" - 18, Gr 5

- 5/16" N.C. hex.

1шт.

15

A65953

HYDRAULIC VALVE

KIT - flow regulator, Includes Ref: 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

ELBOW - 90 degrees, 1/2" P.T. x 7/8"-14 (Order A65953)

1шт.

17

A57369

SPOOL

POPPET - flow restrictor

1шт.

19

A11161

ADAPTER,7/8" - 18 NPT x 1/2" NPT

- (7/8"-18 female to 1/2" male), hydraulic hose

1шт.

20

A27359

ADAPTER

- (7/8"-18 male to 1/2" P.T. male), hydraulic hose

1шт.

21

A27744

ADAPTER,7/8" - 18 x 1/2" NPT

- (7/8"-18 male to 1/2" P.T. female), hydraulic hose

1шт.

22

A34928

ADAPTER,1/2" NPT Fem x 7/8"-18 Fem

- (7/8"-18 female to 1/2" P.T. female), hydraulic hose

1шт.
