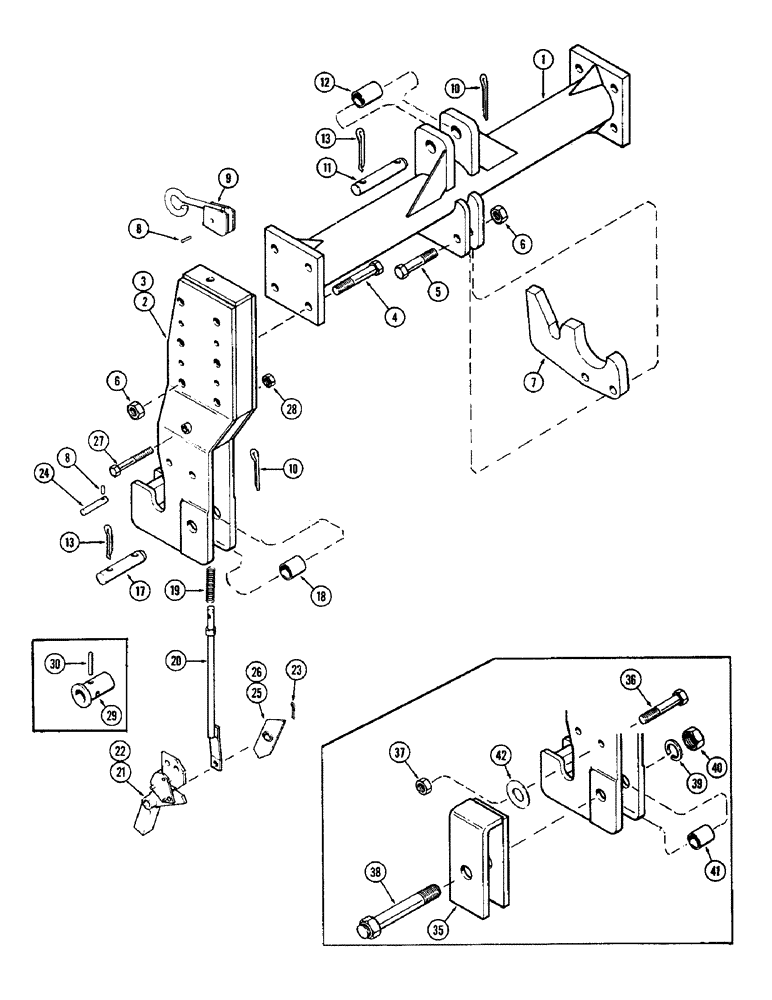

Запчасти Case IH 1370 (228) - QUICK HITCH COUPLER, FIRST USED TRACTOR SERIAL NUMBER 8726932 (09) - CHASSIS/ATTACHMENTS

A66281

NO LONGER SERVICED

ATTACHMENT - hitch coupler (Mach. item) (Replaces T87847), Includes Ref: 1 - 42

1шт.

NSS

NOT SOLD SEPARAT

COUPLER ASSY. - hitch (Order A66281), Includes Ref: 1 - 30

1шт.

1

NSS

NOT SOLD SEPARAT

HITCH - upper arm tube

1шт.

2

A44595

HITCH ASSY

HITCH - lower arm bracket (L.H.)

1шт.

3

A44594

HITCH ASSY

HITCH - lower arm bracket (R.H.)

1шт.

4

113-736

BOLT,Hex, 3/4" - 10 x 4-1/4", Gr 5

- (3/4 x 4-1/4" N.C. hex.)

8шт.

5

113-716

BOLT,Hex, 3/4" - 10 x 3", Gr 5

2шт.

6

129-108

NUT,3/4"-10, G5

10шт.

7

A44600

PLATE

LUG - upper arm hitch

1шт.

8

138-94

LOCK PIN,3/16" x 7/8", Slotted

PIN, 3/16" x 7/8", Slotted

4шт.

9

A44472

HANDLE

- hitch release

2шт.

10

132-202

COTTER PIN,3/8" x 2 1/2"

Pin, Split (Cotter), 3/8" x 2 1/2"

3шт.

11

A44599

AXLE PIN

PIN - upper hitch

1шт.

12

A44474

SLEEVE

- upper draft arm pin

1шт.

13

T50113

PIN

CLINCH PIN - hitch pin

3шт.

17

A43540

AXLE PIN

PIN - draft arm, lower

2шт.

18

A43542

SLEEVE

- coupler arm

2шт.

19

A44476

VALVE SPRING

SPRING - release rod

2шт.

20

A44598

ROD

- handle to tripping devices

2шт.

21

A44596

LEVER

- lock, R.H.

1шт.

22

A44597

LEVER

- lock (L.H.)

1шт.

23

132-93

COTTER PIN,3/16" x 1 1/4"

Pin, Split (Cotter), 3/16" x 1 1/4"

2шт.

24

A44473

PIN

- trip ratchet lever pin

2шт.

25

A44470

LEVER

- lower to ratchet (R.H.)

1шт.

26

A44471

LEVER

- lower trip ratchet (L.H.)

1шт.

27

86505993

BOLT,Hex, 1/2" - 13 x 4", Gr 5

2шт.

28

131-165

NUT,1/2"-13, GA

NUT - lock (1/2" N.C. Gripco Crownlock)

2шт.

29

T32995

ADAPTER

- hitch coupler (For cat. II implements)

2шт.

30

138-188

LOCK PIN,7/16" x 1 1/2", Slotted

Pin, , Includes Ref: 35 - 42 7/16" x 1 1/2", Slotted

2шт.

A66283

KIT

- hitch coupler adapter (Mach. item)

1шт.

35

A66284

BRACKET

- adapter

2шт.

36

113-777

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 8

- (3/4 x 4-1/4" N.C. hex.)

2шт.

37

131-385

LOCK NUT,3/4"-10, GA

NUT - lock (3/4" N.C. Gripco Toplock)

2шт.

38

A66285

BOLT

- adapter attaching

2шт.

39

192-33

LOCK WASHER,1 1/8"

1 1/8"

2шт.

40

129-131

NUT,1 1/8"-12, G5

- (1-1/8" N.F. hex.)

2шт.

41

A43542

SLEEVE

- coupler arm

2шт.

42

195-109

WASHER,3/4"

- flat (13/16 x 2 x 5/32")

2шт.
