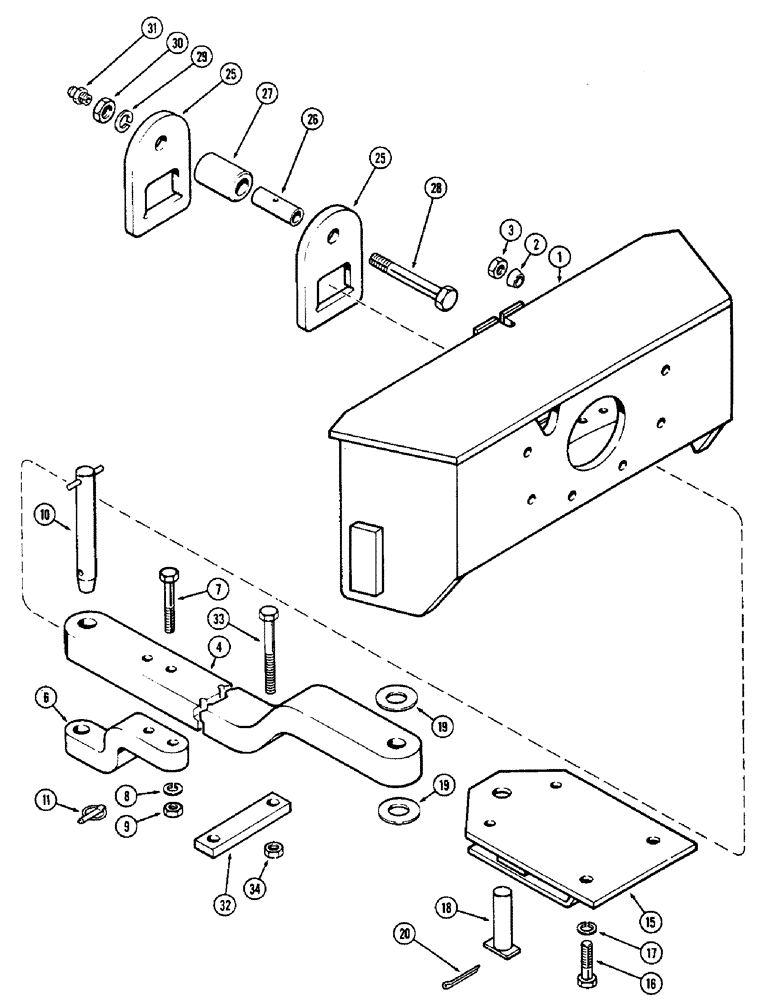

Запчасти Case IH 1370 (226) - D.O.M. SYSTEM, DRAWBAR, WITHOUT HITCH (09) - CHASSIS/ATTACHMENTS

1

A64164

SUPPORT

ASSY. - drawbar

1шт.

2

A64167

PIN

DOWEL - support mounting

6шт.

3

129-563

NUT,5/8"-11, G8

- 5/8" N.C. hex. (Gr.8)

6шт.

4

A63591

BAR

DRAWBAR - (2" thick) (Used prior to trac. ser. no. 8717277) (Order A65753, (2) A65754 & 195-2120)

1шт.

4

A65753

SWINGING DRAWBAR

DRAWBAR - (1-3/4" thick) (1st used trac. ser. no. 8717277)

1шт.

A61836

KIT

- drawbar yoke (Machinery attachment), Includes Ref: 6 - 11

1шт.

6

A61557

DRAWBAR CLAMP

STRAP - hammer

1шт.

7

13-1272

BOLT,Hex, 3/4" - 10 x 4-1/2", Gr 5

2шт.

8

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

2шт.

9

25-1012

NUT,3/4"-10, G5

2шт.

10

A65760

PIN

ASSY. - drawbar (Replaces A61558), Includes Ref: 11

1шт.

11

A61560

LOCK PIN

PIN - klik

1шт.

15

A63554

BRACKET

- drawbar pivot

1шт.

16

26-1240

BOLT,Hex, 3/4" - 10 x 2-1/2", Gr 8

- 3/4 x 2-1/2" N.C. hex.

4шт.

17

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

4шт.

18

A65748

PIN

- drawbar pivot (Replaces A63592)

1шт.

19

A63595

WASHER

- anti-rattle

2шт.

20

132-319

COTTER PIN,1/4" x 3"

Pin, Split (Cotter), 1/4" x 3"

1шт.

25

A63596

PLATE - drawbar hanger (Used prior to trac. ser. no. 8717277)

2шт.

25

A65754

PLATE

- drawbar hanger (1st used trac. ser. no. 8717277)

2шт.

26

A63597

BUSHING

SLEEVE - roller

1шт.

27

A63598

ROLLER

- drawbar

1шт.

28

A63599

BOLT

- roller, drilled

1шт.

29

92-16

LOCK WASHER,1"

WASHER, LOCK, 1"

1шт.

30

25-1016

NUT,1"-8, G5

1шт.

31

219-22

LUBE NIPPLE,1/8" - 27 NPTF

FITTING - grease, 1/8" P.T., straight

1шт.

32

A63600

STRAP

- drawbar clamp

1шт.

33

13-1092

BOLT,Hex, 5/8" - 11 x 5-3/4", Gr 5

- 5/8 x 5-3/4" N.C. hex.

2шт.

34

25-1010

NUT,5/8"-11, G5

2шт.
