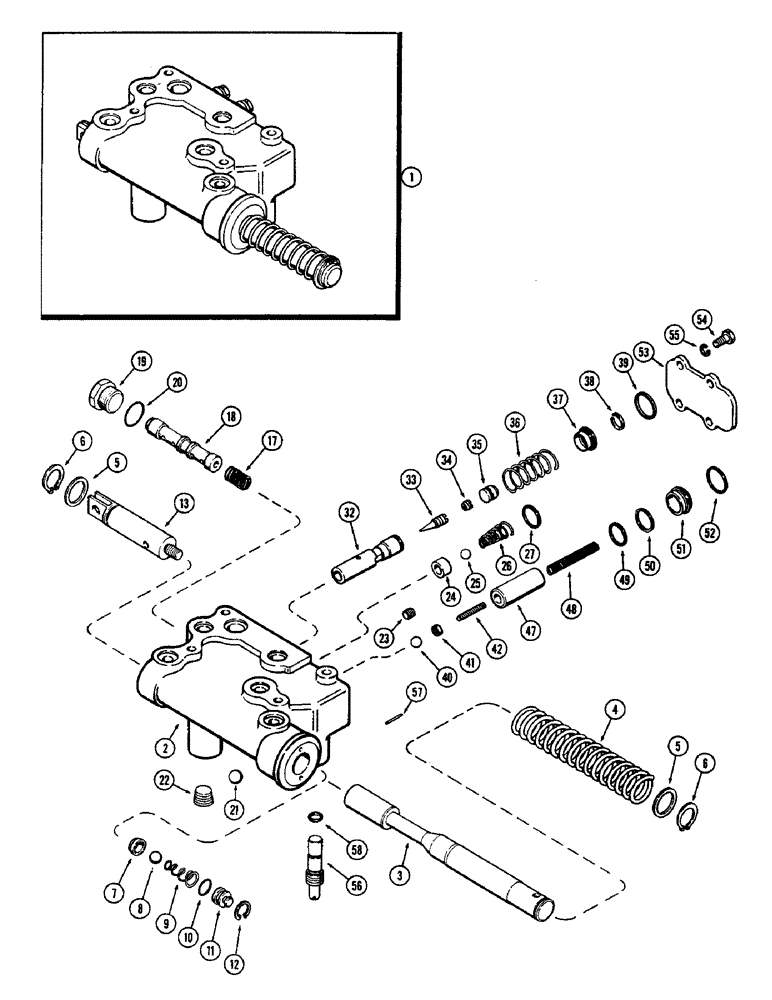

Запчасти Case IH 1370 (218) - D.O.M. SYSTEM, A63470 DEPTH AND POSITION VALVE ASSEMBLY (09) - CHASSIS/ATTACHMENTS
№
Артикул
Название
Примечание
Количество
1
A63470
VALVE
ASSY. - depth & position, Includes Ref: 2 - 58
1шт.
2
NSS
NOT SOLD SEPARAT
BODY - control valve (Order A63470)
1шт.
3
A58363
SPOOL
- control valve
1шт.
4
A58366
SPRING
- spool return
1шт.
5
A58365
WASHER
- spring retaining
2шт.
6
A35094
SNAP RING,#81, Ext
Ring, Snap, , spool #81, Ext
2шт.
7
L10120
SEAT
- load check ball
1шт.
8
211-12
BALL,7/16 Dia
- load check (7/16" dia.)
1шт.
9
A35099
SPRING
- pressure, check valve
1шт.
10
A27410
O-RING,0.487" ID x 0.693" OD x 0.103"
"O" RING - (1/2 x 11/16 x 3/32")
1шт.
11
A35693
PLUG
- check valve
1шт.
12
A35694
SNAP RING,0.688", Int, #68
Ring, Snap, 0.688", Int, #68
1шт.
13
A63471
END
- valve spool
1шт.
17
A35700
SPRING
- flow control
1шт.
18
A32984
PISTON
- flow control
1шт.
19
A34215
PLUG
ASSY. - (7/8"-14), Includes Ref: 20
2шт.
20
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
"O" RING - (5/8 x 3/4 x 3/32")
1шт.
21
211-7
BALL,1/4" Dia
1шт.
22
221-843
PLUG,Hex Soc, 3/8"-18
- pipe (3/8" hex. socket head)
1шт.
23
221-849
PLUG,Hex Soc, 1/8"-27
- pipe (1/8" hex. socket head)
2шт.
24
L10120
SEAT
- load check
1шт.
25
211-12
BALL,7/16 Dia
- (7/16" dia.)
1шт.
26
A57166
SPRING
- load check
1шт.
27
A35547
RING
- seal, rectangular
1шт.
32
A32982
PISTON
- trigger valve
1шт.
33
A35784
VALVE
- needle, trigger poppet
1шт.
34
A35785
SET SCREW,5/16" - 18 x 1/4"
- lock, needle valve
1шт.
35
A35097
PLUG
- open center poppet
1шт.
36
A35691
SPRING
- trigger valve
1шт.
37
A35689
RETAINER
- snap ring
1шт.
38
A35690
RING
- snap, seat retaining
1шт.
39
A35548
RING
- seal, rectangular
1шт.
40
211-13
BALL,1/2" Dia
1шт.
41
A35102
NUT
- lock (#10 N.F. hex.)
1шт.
42
A35101
SET SCREW,Hex Skt, #10 - 32 x 1 1/4", Gr 5
- set (#10 x 1-1/4" N.F. slotted headless)
1шт.
47
A35695
PISTON
- lowering poppet
1шт.
48
A35103
SPRING
- lowering poppet
1шт.
49
A27365
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
"O" RING - (3/4 x 15/16 x 3/32")
1шт.
50
A35698
BACK-UP RING
WASHER - "O" ring back-up
1шт.
51
A35696
SLEEVE
- lowering poppet
1шт.
52
A35104
O-RING,0.103" Thk x 0.862" ID, -118, Cl 5, 75 Duro
"O" RING - (7/8 x 1-1/16 x 3/32")
1шт.
53
A35105
COVER
- control valve
1шт.
54
13-512
BOLT,Hex, 5/16" - 18 x 3/4", Gr 5
4шт.
55
92-5
LOCK WASHER,5/16"
4шт.
56
A32363
SPOOL
- throttle
1шт.
57
138-39
LOCK PIN,3/32" x 5/8", Slotted
PIN, 3/32" x 5/8", Slotted
1шт.
58
A40109
O-RING,0.07" Thk x 0.364" ID, -12, Cl 6, 90 Duro
"O" RING - (3/8 x 1/2 x 1/16")
1шт.
A43518
KIT
- seal (Includes ref. 10, 20, 27, 37, 39, 49, 50 & 58)
1шт.
Выбрано товаров: 48
