(204) - HYDRAULICS, A64174 OPTIONAL INDEPENDENT, LEFT HAND VARIABLE REMOTES HYDRAULIC PUMP

Запчасти Case IH 1370 (204) - HYDRAULICS, A64174 OPTIONAL INDEPENDENT, LEFT HAND VARIABLE REMOTES HYDRAULIC PUMP (08) - HYDRAULICS

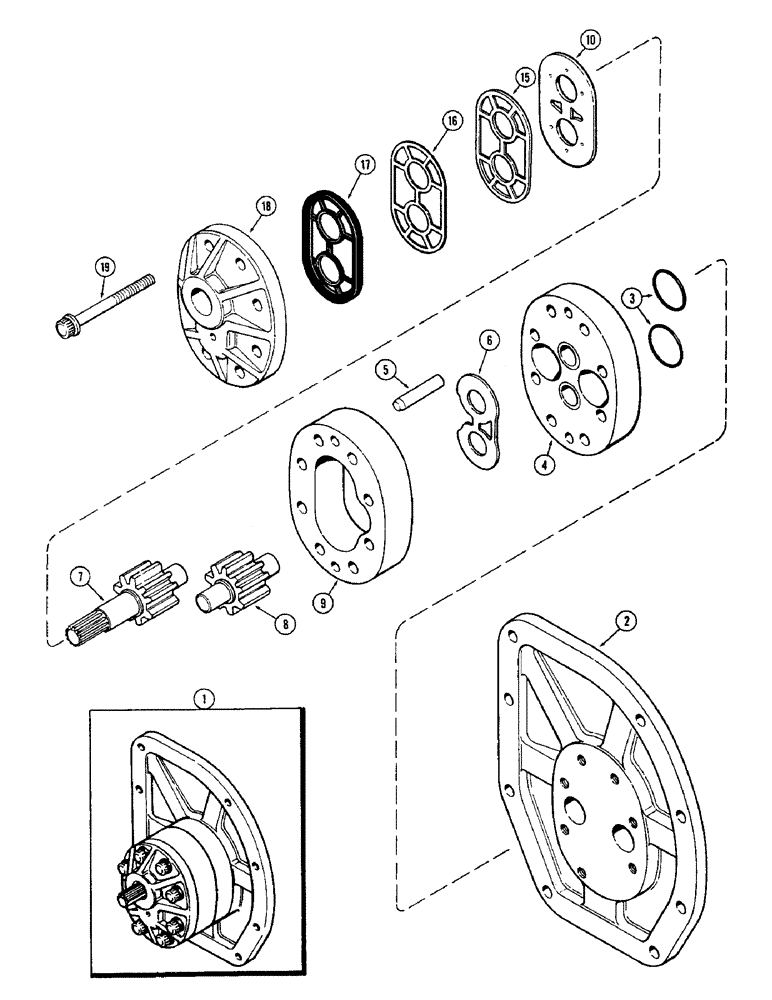

Схема запчастей Case IH 1370 - (204) - HYDRAULICS, A64174 OPTIONAL INDEPENDENT, LEFT HAND VARIABLE REMOTES HYDRAULIC PUMP (08) - HYDRAULICS
16
18
8
3
10
2
6
9
7
19
4
17
5
1
15
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A64174

PUMP

ASSY. - hydraulic, optional independent L.H. variable remotes, Includes Ref: 2 - 20

1шт.

2

NSS

NOT SOLD SEPARAT

FLANGE - pump port cover plate

1шт.

3

A43669

O-RING,1.299" ID x 1.505" OD x 0.103"

"O" RING - flange port

2шт.

4

NSS

NOT SOLD SEPARAT

PLATE - bearing

1шт.

5

NSS

NOT SOLD SEPARAT

PIN - dowel, pump body alignment

2шт.

6

D41322

PLATE

- thrust

1шт.

7

NSS

NOT SOLD SEPARAT

GEAR - pump drive with spline

1шт.

8

NSS

NOT SOLD SEPARAT

GEAR - idler, driven

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - gear

1шт.

10

D41321

DIAPHRAGM

- gear seal (Replaces D31400)

1шт.

15

A42303

GASKET

- protector back up

1шт.

16

H260935

GASKET

PROTECTOR - gasket (Replaces A42305)

1шт.

17

A42174

SEAL

- diaphragm

1шт.

18

NSS

NOT SOLD SEPARAT

HOUSING - front drive bearing pilot

1шт.

19

166-56

BOLT - (3/8 x 4" N.C., 12 pt. flanged)

8шт.

20

A43668

SEAL,0.103" Thk x 1.299" ID, -125, Cl 6, 90 Duro

KIT - repair (Includes items 3, 6, 10, 15, 16 & 17)

1шт.
