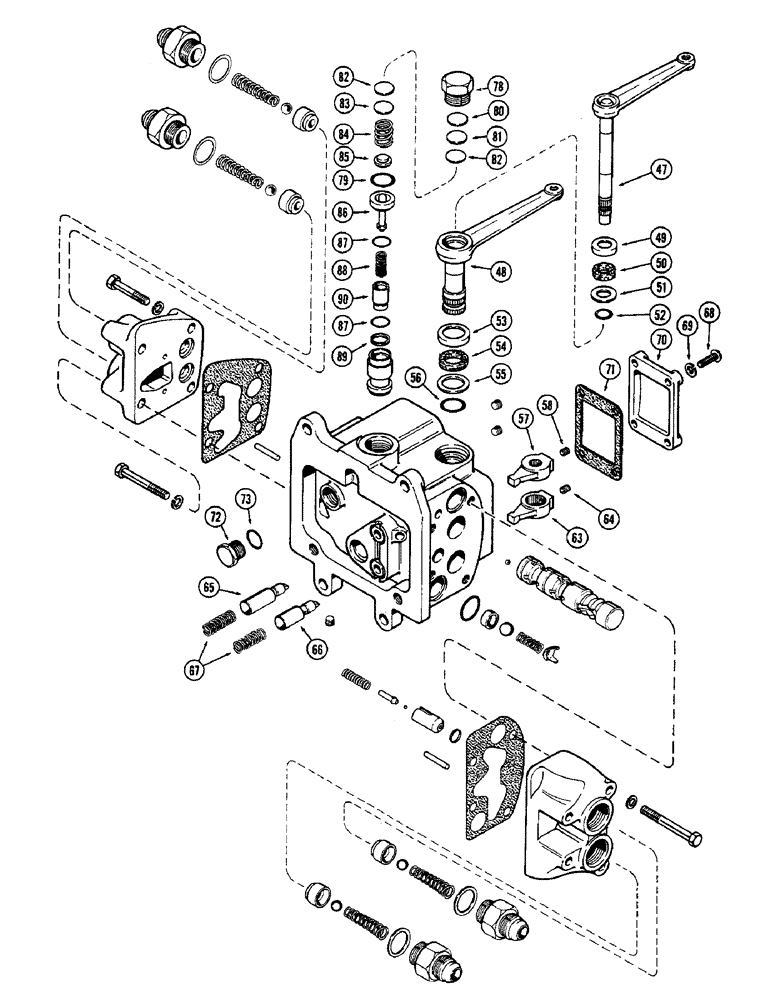

Запчасти Case IH 1370 (203A) - HYDRAULICS, A63534 LEFT HAND VARIABLE REMOTE HYDRAULICS VALVE (08) - HYDRAULICS

A63534

VALVE

ASSY. - L.H. variable remote (Cont'd from Figure 202)

1шт.

47

A57605

LEVER

- shifter shaft (Outer)

1шт.

48

A57604

LEVER

- shifter shaft (Inner)

1шт.

49

A30875

RETAINER

- felt washer

1шт.

50

A30853

WASHER

- felt

1шт.

51

A27409

WASHER

- seal, spool

1шт.

52

A64836

O-RING,0.487" ID x 0.693" OD

"O" RING - outer handle (1/2 x 11/16 x 3/32")

1шт.

53

A30880

RETAINER

- felt washer

1шт.

54

A30879

WASHER

- felt

1шт.

55

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - seal, spool

1шт.

56

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - seal, shaft (3/4 x 15/16 x 3/32")

1шт.

57

A57546

ARM

ASSY. - valve spool shifter lever (Inner), Includes Ref: 58

1шт.

58

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set (1/4 x 1/4" N.C. hex. socket cup pt.)

1шт.

63

A57547

ARM

ASSY. - valve spool shifter lever (Outer), Includes Ref: 64

1шт.

64

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set (1/4 x 1/4" N.C. hex. socket cup pt.)

1шт.

65

A57554

PLUNGER

- valve spool (Inner)

1шт.

66

A57555

PLUNGER

- valve spool (Outer)

1шт.

66

A30883

SPRING

- valve spool plunger

2шт.

68

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

4шт.

69

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

70

A57552

CAP

- valve body

1шт.

71

A76374

GASKET

- valve body cap (Replaces A30854)

1шт.

72

86512512

PLUG,7/8" - 14 ORB

Incl. Ref 73 Hex Hd, 7/8"-14 ORB

1шт.

73

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (5/8 x 3/4 x 3/32")

1шт.

78

A34392

PLUG

- pilot relief valve

1шт.

79

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

80

A34694

SHIM,.0201" Thk

Pilot relief spring (See note) .0201" Thk

1шт.

81

A34817

SHIM,.0149" Thk

Pilot relief spring (Blue) (See note) .0149" Thk

1шт.

82

A34391

SHIM,.0149" Thk

Pilot relief spring (See note) .0149" Thk

1шт.

82

A34390

SHIM,.0329" Thk

Pilot relief spring (See note) .0329" Thk

1шт.

83

A34849

SHIM,.0105" Thk

Pilot relief spring (See note) .0105" Thk

1шт.

84

A34492

SPRING

- pilot relief

1шт.

85

A57558

RETAINER

- pilot spring

1шт.

86

A57556

PISTON

ASSY. - pilot

1шт.

87

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

"O" RING - pilot relief spring (5/8 x 3/4 x 1/16")

2шт.

88

A34382

SPRING

- pilot relief valve, Includes Ref: 89

1шт.

89

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- pilot relief valve

1шт.

90

A57553

PISTON

- pilot relief valve

1шт.

A43086

SEAL

KIT - seal, hyd. valve (Includes items 9, 16, 22, 36, 37, 49 thru 56, 71, 73, 79, 87 & 89)

1шт.

A42888

KIT

- seal, relief valve (Includes items 79, 87 & 89)

1шт.
