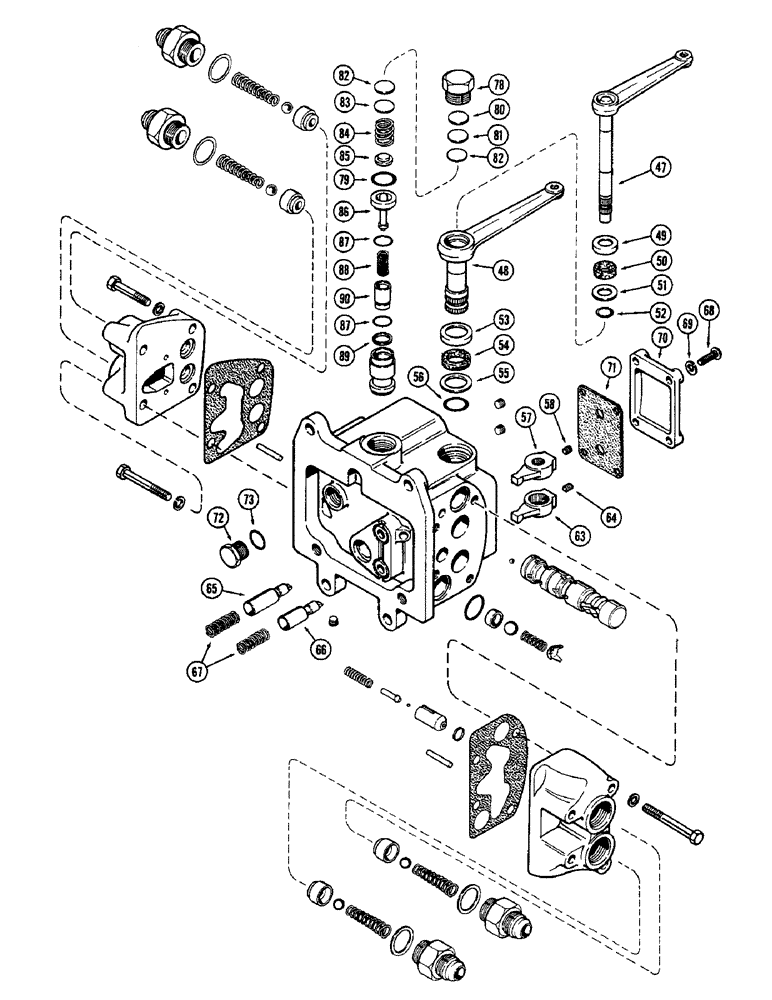

Запчасти Case IH 1370 (201A) - HYDRAULICS, A66467 LEFT HAND VARIABLE REMOTE HYDRAULICS VALVE (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
A66467
VALVE
ASSY. - L.H. variable remote (Cont'd from Figure 200)
1шт.
47
A57605
LEVER
- shifter shaft (Outer)
1шт.
48
A57604
LEVER
- shifter shaft (Inner)
1шт.
49
A30875
RETAINER
- felt washer
1шт.
50
A30853
WASHER
- felt
1шт.
51
A27409
WASHER
- seal, spool
1шт.
52
A64836
O-RING,0.487" ID x 0.693" OD
"O" RING - outer handle (1/2 x 11/16 x 3/32")
1шт.
53
A30880
RETAINER
- felt washer
1шт.
54
A30879
WASHER
- felt
1шт.
55
A30881
SEALING WASHER,19.45mm ID x 31.35mm OD
WASHER - seal, spool
1шт.
56
A64837
O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro
"O" RING - seal, shaft (3/4 x 15/16 x 3/32")
1шт.
57
A57546
ARM
ASSY. - valve spool shifter lever (Inner), Includes Ref: 58
1шт.
58
178-875
SET SCREW,Hex Soc, 1/4"-20 x 1/4"
SCREW - set (1/4 x 1/4" N.C. hex. sckt., cup pt.)
1шт.
63
A57547
ARM
ASSY. - valve spool shifter lever (Outer), Includes Ref: 64
1шт.
64
178-875
SET SCREW,Hex Soc, 1/4"-20 x 1/4"
SCREW - set (1/4 x 1/4" N.C. hex. sckt., cup pt.)
1шт.
65
A57554
PLUNGER
- valve spool (Inner)
1шт.
66
A57555
PLUNGER
- valve spool (Outer)
1шт.
67
A66472
SPRING
- valve spool plunger
2шт.
68
13-414
BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd
4шт.
69
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
4шт.
70
A66435
CAP
- valve body
1шт.
71
A76374
GASKET
- valve body cap
1шт.
72
86512512
PLUG,7/8" - 14 ORB
Incl. Ref 73 Hex Hd, 7/8"-14 ORB
1шт.
73
237-6010
O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro
"O" RING - (5/8 x 3/4 x 3/32")
1шт.
78
A34392
PLUG
- pilot relief valve
1шт.
79
218-5008
O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro
"O" RING - (3/4 x 59/64 x 1/8")
1шт.
80
A34694
SHIM,.0201" Thk
Pilot relief spring (See note) .0201" Thk
1шт.
81
A34817
SHIM,.0149" Thk
Pilot relief spring (Blue) (See note) .0149" Thk
1шт.
82
A34391
SHIM,.0149" Thk
Pilot relief spring (See note) .0149" Thk
1шт.
82
A34390
SHIM,.0329" Thk
Pilot relief spring (See note) .0329" Thk
1шт.
83
A34849
SHIM,.0105" Thk
Pilot relief spring (See note) .0105" Thk
1шт.
84
A34492
SPRING
- pilot relief
1шт.
85
A57558
RETAINER
- pilot spring
1шт.
86
A57556
PISTON
ASSY. - pilot
1шт.
87
A17526
O-RING,0.614" ID x 0.754" OD x 0.7"
"O" RING - pilot relief sleeve (5/8 x 3/4 x 1/16")
2шт.
88
A34382
SPRING
- pilot relief valve
1шт.
89
A34493
RING,16.33mm ID x 19.02mm OD x 1.25mm Thk
- pilot relief valve, Includes Ref: 90
1шт.
90
A57553
PISTON
- pilot relief valve
1шт.
A43086
SEAL
KIT - seal hyd. valve (Includes items 9, 16, 22, 36, 37, 49 thru 56, 71, 73, 79, 87 & 89)
1шт.
A42888
KIT
- seal, relief valves (Includes items 79, 87 & 89)
1шт.
Выбрано товаров: 40
