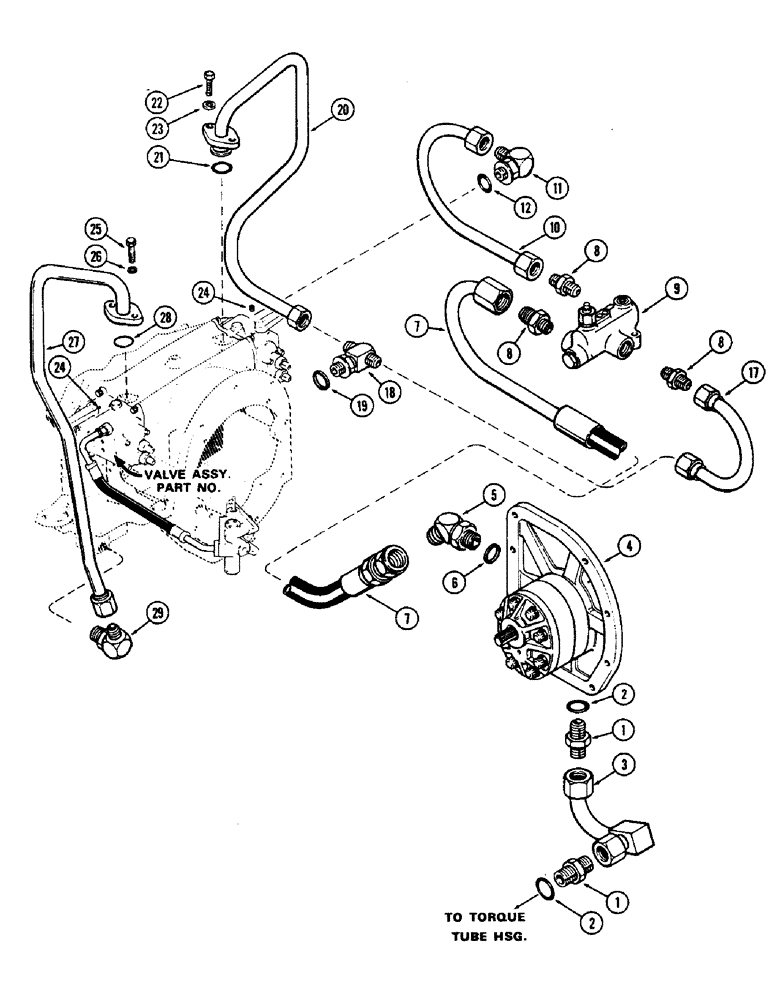

Запчасти Case IH 1370 (199A) - HYDRAULICS, RIGHT HAND STANDARD REMOTES, WITH OPTIONAL LEFT HAND REMOTES CIRCUITRY (08) - HYDRAULICS

1

218-5069

HYD CONNECTOR,1-5/16" - 12 Male JIC x 1-5/16" - 12 Male ORB

CONNECTOR ASSY. - straight, Incl. Ref: 2

2шт.

2

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - (1.71 x 1 x .116")

1шт.

3

A64183

TUBE

- torque, Serial Range: tube-pump

1шт.

4

A64174

PUMP

ASSY. - L.H. variable remotes (For repairs see Figure 204)

1шт.

5

218-5138

ELBOW,45 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSY. - 45 degrees, Includes Ref: 6

1шт.

6

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

7

A64184

TUBE

- pump to flow divider valve

1шт.

8

218-446

HYD CONNECTOR,1-1/16" - 12 Male JIC x 3/4" - 14 Male NPTF

ADAPTER - straight

3шт.

9

A64176

VALVE

ASSY. - flow divider (For repairs see Figure 205A)

1шт.

10

A64185

TUBE

- flow divider valve to L.H. remote hyds. valve

1шт.

11

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

Assy, 90 degrees adjustable, Incl. Ref: 12

1шт.

12

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

17

A64186

TUBE

- flow divider, Serial Range: valve-sump

1шт.

18

218-5185

TEE,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

ASSY. - branch (In trans. case), Includes Ref: 19

1шт.

19

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

20

A64437

TUBE

- remote, Serial Range: valve-sump

1шт.

21

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - (1-1/8 x 7/8 x 1/8")

1шт.

22

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N.C. hex.), Tube to trans. case

2шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

221-849

PLUG,Hex Soc, 1/8"-27

- pipe (1/8" hex. socket hd.)

2шт.

25

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N.C. hex.), Tube to trans. case

2шт.

26

92-5

LOCK WASHER,5/16"

2шт.

27

A64018

PIPE

TUBE -, Serial Range: trans.-manifold

1шт.

28

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - (1-1/8 x 7/8 x 1/8")

1шт.

29

A64020

ELBOW

- 90 degrees (In manifold)

1шт.
