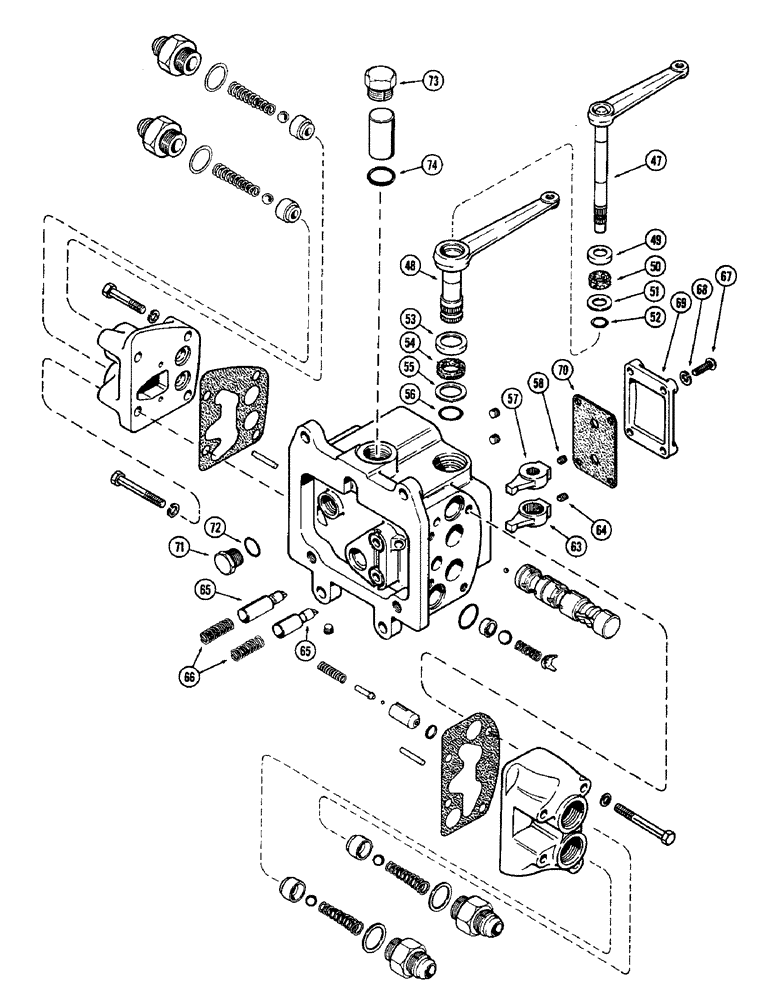

Запчасти Case IH 1370 (193A) - HYDRAULICS, A66474 LEFT HAND REMOTE HYDRAULICS VALVE (08) - HYDRAULICS

A66474

VALVE ASSY. - L.H. optional remote hydraulic (Cont'd from Figure 192)

1шт.

47

A57605

LEVER

- shifter shaft (Outer)

1шт.

48

A57604

LEVER

- shifter shaft (Inner)

1шт.

49

A30875

RETAINER

- felt washer

1шт.

50

A30853

WASHER

- felt

1шт.

51

A27409

WASHER

- seal, spool

1шт.

52

A64836

O-RING,0.487" ID x 0.693" OD

"O" RING - outer handle (1/2 x 11/16 x 3/32")

1шт.

53

A30880

RETAINER

- felt washer

1шт.

54

A30879

WASHER

- felt

1шт.

55

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - seal, spool

1шт.

56

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - seal, shaft (3/4 x 15/16 x 3/32")

1шт.

57

A57546

ARM

ASSY. - hyd. valve spool shifter lever (Inner), Includes Ref: 58

1шт.

58

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set (1/4 x 1/4" N.C. hex. sckt. hdless. cup pt.)

1шт.

63

A57547

ARM

ASSY. - hyd. valve spool shifter lever (Outer), Includes Ref: 64

1шт.

64

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set (1/4 x 1/4" N.C. hex. sckt. hdless. cup pt.)

1шт.

65

A63765

PLUNGER

- hyd. valve spool (Inner & outer)

2шт.

66

A66472

SPRING

- hyd. valve spool plunger

2шт.

67

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

4шт.

68

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

69

A66435

CAP

- hyd. valve body

1шт.

70

A76374

GASKET

- hyd. valve body cap

1шт.

71

86512512

PLUG,7/8" - 14 ORB

Incl. Ref 72 Hex Hd, 7/8"-14 ORB

1шт.

72

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (5/8 x 3/4 x 3/32")

1шт.

73

A34392

PLUG

- pilot relief valve

1шт.

74

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

A43086

SEAL

KIT - seal (Includes items 9, 16, 22, 36, 37, 49 thru 56, 70, 72 & 74)

1шт.
