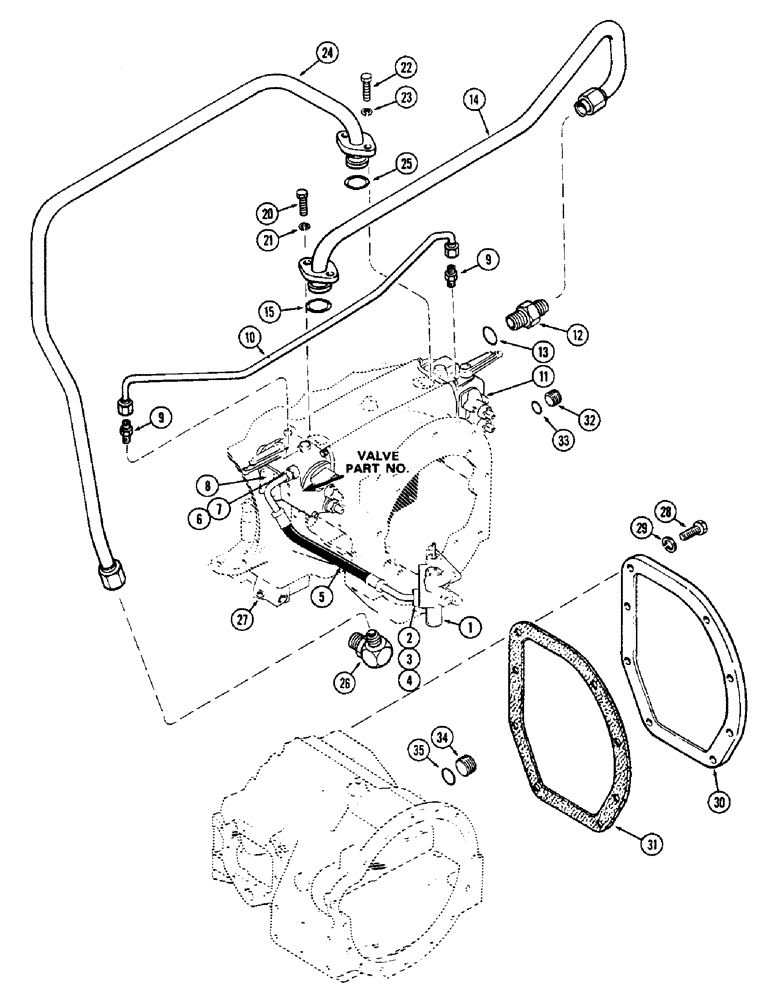

Запчасти Case IH 1370 (190) - HYDRAULICS, RIGHT HAND STANDARD REMOTES, WITH OPTIONAL LEFT HAND REMOTES CIRCUITRY (08) - HYDRAULICS

1

A65672

VALVE

ASSY. - P.T.O. & clutch regulator (Replaces A63353) (For repairs see Figure 158)

1шт.

2

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - (7/8 x 1-1/8 x 1/8")

1шт.

3

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N.C. hex.)

2шт.

4

92-5

LOCK WASHER,5/16"

2шт.

5

A64328

HYD TUBE

- pressure

1шт.

6

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., , Assy, Straight, Incl. Ref: 7 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

7

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

8

A63534

VALVE

ASSY. - R.H. standard remote hydraulics (For repairs see Figures 182 & 184)

1шт.

9

218-442

HYD CONNECTOR,1/2" - 20 Male JIC x 1/8" - 27 Male NPTF

CONNECTOR - (1/8" P.T. to 5/16" tube O.D.)

2шт.

10

A63770

PIPE

TUBE - detent crossover

1шт.

11

A63762

HYDRAULIC VALVE

VALVE ASSY. - L.H. optional remote hydraulics (For repairs see Figures 192 & 194)

1шт.

12

218-5064

HYD CONNECTOR,1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

CONNECTOR, HYD., , Assy, Straight (LH remote valve), Incl. Ref: 13 1 1/16"-12, 37º x 1 1/16"-12, O-Ring

1шт.

13

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

14

A64021

TUBE

ASSY. - valve pressure

1шт.

15

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - (1-1/8 x 7/8 x 1/8")

1шт.

20

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N.C. hex.), Tube to trans. case

2шт.

21

92-5

LOCK WASHER,5/16"

2шт.

22

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" N.C. hex.), Tube to trans. case

2шт.

23

92-5

LOCK WASHER,5/16"

2шт.

24

A64019

PIPE

TUBE ASSY. -, Serial Range: trans.-manifold

1шт.

25

A27352

O-RING,0.859" ID x 1.137" OD x 0.139"

"O" RING - (1-1/8 x 7/8 x 1/8")

1шт.

26

A64020

ELBOW

- 90 degrees (In manifold)

1шт.

27

A64013

MANIFOLD

- depth control valve

1шт.

28

13-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- (3/8 x 1-1/2" N.C. hex.)

8шт.

29

92-6

LOCK WASHER,3/8"

8шт.

30

A63792

PLATE

COVER - pump opening

1шт.

31

A63793

GASKET

- pump opening

1шт.

32

9841223

PLUG,1-1/16" - 12 ORB

ASSY. - hollow hex. (In trans. case), Incl. Ref: 33

1шт.

33

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

34

218-5214

PLUG,Hex Soc, 1 5/16"-12 ORB

Assy (in torque tube), Incl. Ref 35 Hex Soc, 1 5/16"-12 ORB

1шт.

35

218-5010

O-RING,0.116" Thk x 1.171" ID, -916, Cl 6, 90 Duro

"O" RING - (1.71 x 1 x .116")

1шт.
