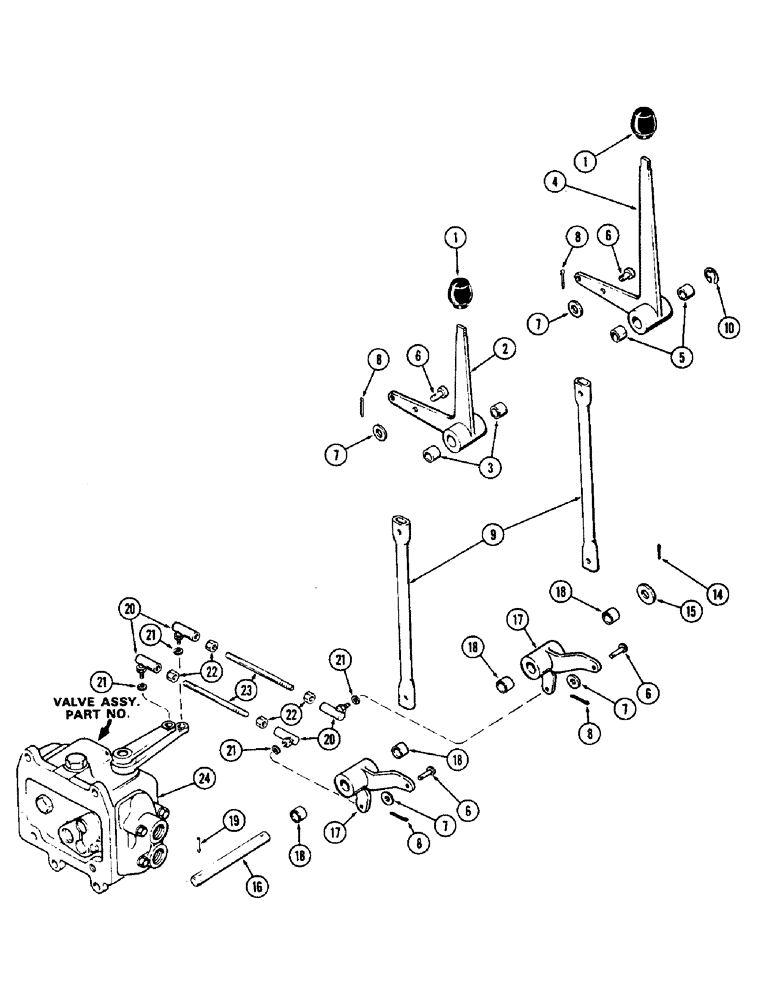

Запчасти Case IH 1370 (186) - HYDRAULICS, LEFT HAND OPTIONAL REMOTE HYDRAULICS CONTROLS (08) - HYDRAULICS

1

A65699

KNOB

- hyd. remote lever (Replaces A62078)

2шт.

2

A63543

LEVER

ASSY. - remote, inner, Includes Ref: 3

1шт.

3

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- remote inner lever

2шт.

4

A63542

LEVER

ASSY. - remote, outer, Includes Ref: 5

1шт.

5

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- remote outer lever

2шт.

6

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, 5/16" x .940"

4шт.

7

195-21

WASHER,5/16"

- plain () 5/16"

4шт.

8

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

9

A61659

ROD

LINK - remote lever, upper

2шт.

10

A27785

CIRCLIP,#62, .480" Dia, E-Type

Ring, Retaining, , remote levers #62, .480" Dia, E-Type

1шт.

14

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), , Shaft 3/32" x 1 1/4"

1шт.

15

195-41

WASHER,5/8"

1шт.

16

A59529

SHAFT

- remote bellcrank lever

1шт.

17

A63829

LEVER

ASSY. - remote bellcrank, Includes Ref: 18

2шт.

18

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- remote bellcrank lever

2шт.

19

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , Shaft to mtg. hub 1/8" x 1", Slotted

1шт.

20

A27382

BALL

JOINT - ball, remote lever lower rod

4шт.

21

92-5

LOCK WASHER,5/16"

4шт.

22

25-115

NUT,5/16"-24, G5

- hex (5/16" NF)

4шт.

23

A63548

ROD

- remote lever, lower

2шт.

24

A63762

HYDRAULIC VALVE

VALVE ASSY. - L.H. optional remote (Order A66474) (Part. no. stamped on body.) (Repairs Figure 194)

1шт.

24

A66474

VALVE ASSY. - L.H. optional remote (Replaces A63762) (Part no. stamped on body) (Repairs Figure 192)

1шт.

24

A63534

VALVE

ASSY. - L.H. optional variable remote (Order A66467) (Part no. stamped on body) (Repairs Figure 202)

1шт.

24

A66467

VALVE

ASSY. - L.H. optional variable remote (Replaces A63534) (Part. no. stamped on body) (Repairs Figure 200)

1шт.
