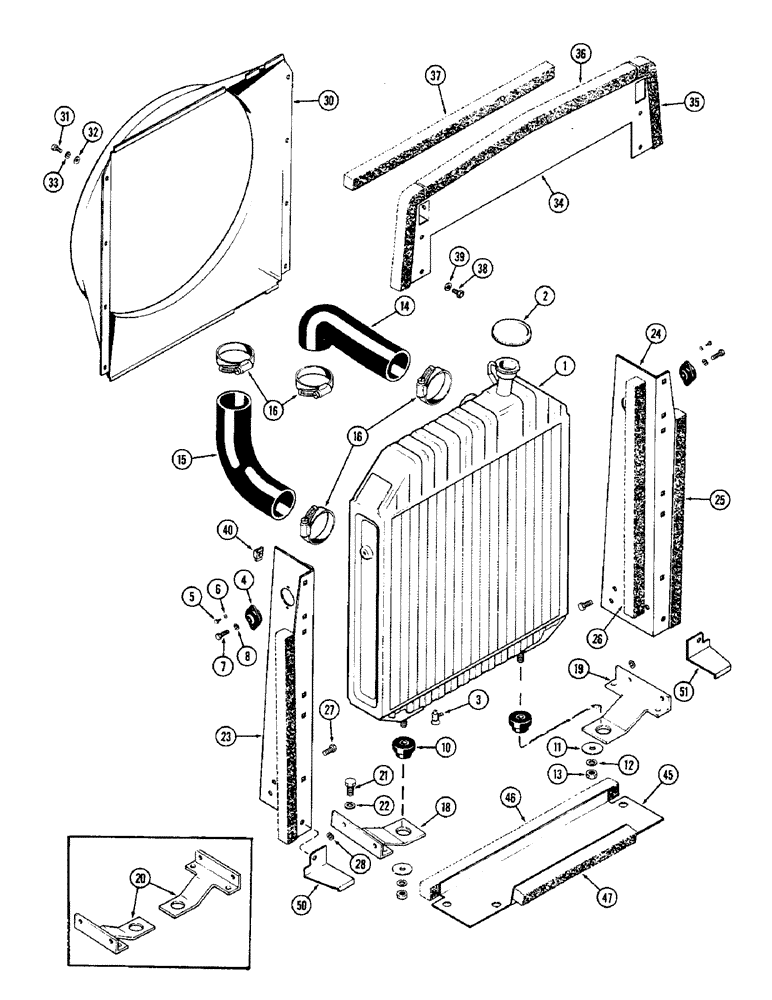

Запчасти Case IH 1370 (010) - RADIATOR AND ATTACHING PARTS, 504BDT, DIESEL ENGINE (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
A64484
RADIATOR
1шт.
2
A59861
RADIATOR
CAP - radiator, w/o air conditioner (7 PSI)
1шт.
2
A61784
CAP
- radiator, w/air conditioner (14 PSI)
1шт.
3
A23656
COCK, DRAIN
VALVE - radiator drain
1шт.
4
A64069
MOUNTING PARTS
MOUNT - radiator support
2шт.
5
187-1303
SELF-TAP SCREW,Hex Hd, #6 x 3/8"
SCREW - #6 x 3/8" N.F. rd. hd.
4шт.
6
192-5
LOCK WASHER,#6
WASHER, LOCK, #6
4шт.
7
13-426
BOLT,Hex, 1/4" - 20 x 1-5/8", Gr 5
- 1/4 x 1-5/8" N.C. hex.
2шт.
8
92-4
LOCK WASHER,1/4"
WASHER, LOCK, 1/4"
2шт.
10
A59863
MOUNTING PARTS
MOUNT - center bonded
2шт.
11
48560
BRAKE LINING
- center bonded mount snubber
2шт.
12
192-163
LOCK WASHER,1/2"
WASHER, LOCK, 1/2"
2шт.
13
129-105
NUT,Hex, 1/2" - 13, Gr 5
2шт.
14
A63727
LARGE HOSE,2.50" ID x 10.90", SAE 20R4 CLASS D2
RADIATOR HOSE, , Inlet 2.50" ID x 10.90", SAE 20R4 CLASS D2
1шт.
15
A63728
HOSE,2.62" ID x 7.90", SAE 20R4 CLASS R GRADE 1 OR 1A
RADIATOR HOSE, , Outlet 2.62" ID x 7.90", SAE 20R4 CLASS R GRADE 1 OR 1A
1шт.
16
214-262
HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm
CLAMP - hose, 2-5/16" to 3-1/4"
4шт.
18
A65098
BRACKET
- radiator R.H. (1st used trac. ser. no. 8706063)
1шт.
19
A65099
BRACKET - radiator L.H. (1st used trac. ser. no. 8706063)
1шт.
20
A63715
BRACKET - radiator, R.H. & L.H. (Used prior to trac. ser. no. 8706063)
2шт.
21
13-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
4шт.
22
92-6
LOCK WASHER,3/8"
4шт.
23
A63716
SUPPORT
ASSY. - radiator side, R.H. (Incl. items 25 & 26)
1шт.
24
A63717
SUPPORT
ASSY. - radiator side, L.H., Includes Ref: 25 and 26
1шт.
25
A63720
SEAL
- radiator, outside (See note)
1шт.
26
A63721
SEAL
- radiator, inside (See note)
1шт.
27
13-68
SCREW,Hex, 3/8" - 16 x 1/2", Gr 5
BOLT - 3/8 x 1/2" N.C. hex.
4шт.
28
92-6
LOCK WASHER,3/8"
4шт.
30
A63726
SHROUD
- fan
1шт.
31
113-1
BOLT,Hex, 1/4" - 20 x 1/2", Gr 5
8шт.
32
195-515
WASHER,#12
- 1/4 x 1/2 x 1/16"
8шт.
33
192-19
LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND
WASHER, LOCK, 1/4"
8шт.
34
A63722
BAFFLE
ASSY. - radiator front, Includes Ref: 35 - 37
1шт.
35
A63724
SEAL
- radiator, upper (See note)
2шт.
36
A63725
SEAL
- radiator, top upper (See note)
1шт.
37
A63720
SEAL
- radiator, top lower (See note)
1шт.
38
13-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5, Full Thd
4шт.
39
92-5
LOCK WASHER,5/16"
4шт.
40
1502286C2
NUT,Floating Cage, 5/16"-18
- 5/16" N.C. Tinnerman
4шт.
45
A63711
BAFFLE
ASSY. - radiator lower, Includes Ref: 46 and 47
1шт.
46
A63713
SEAL
- radiator, lower
1шт.
47
A63714
SEAL - radiator baffle, front
1шт.
50
A63870
BAFFLE
- radiator lower, R.H.
1шт.
51
A63871
BAFFLE
- radiator lower, L.H.
1шт.
Выбрано товаров: 43
