Запчасти Case IH 1370 (183A) - HYDRAULICS, A66467 RIGHT HAND REMOTE HYDRAULICS VALVE (08) - HYDRAULICS

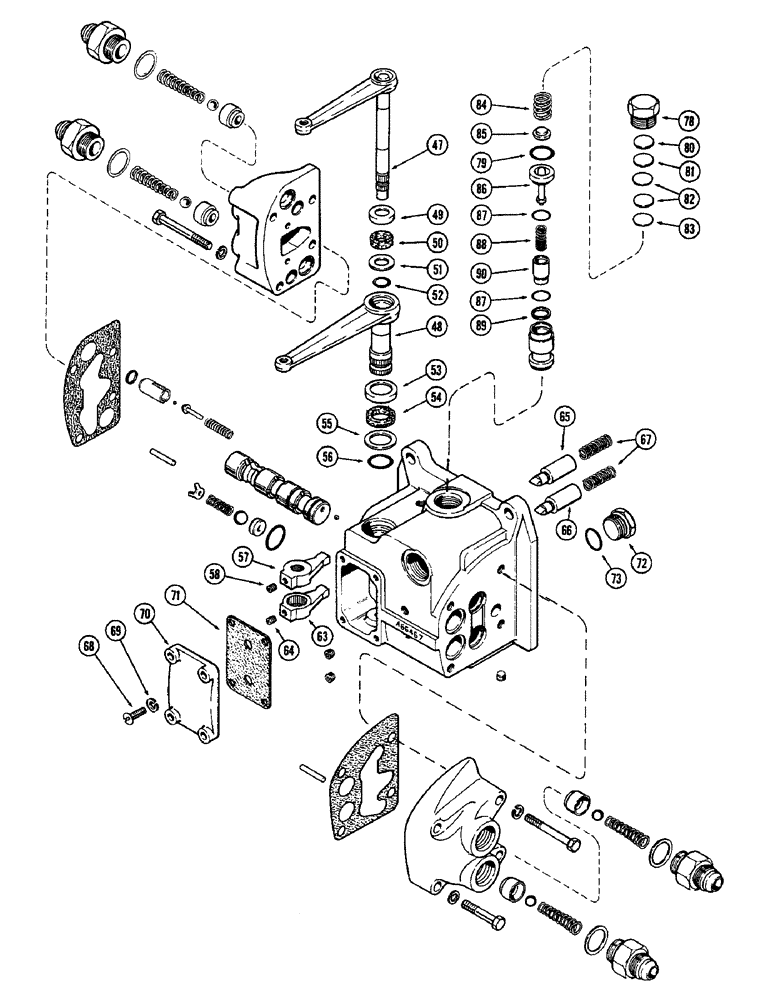

Схема запчастей Case IH 1370 - (183A) - HYDRAULICS, A66467 RIGHT HAND REMOTE HYDRAULICS VALVE (08) - HYDRAULICS
79
86
51
47
84
72
83
49
56
48
90
68
52
73
70
54
82
78
87
80
57
69
66
67
71
63
65
58
53
55
64
89
50
87
85
81
88

Артикул

Название

Примечание

Количество

A66467

VALVE

ASSY. - std. hydraulics (R.H.) (Cont'd from Figure 182)

1шт.

47

A57605

LEVER

- shifter shaft (Outer)

1шт.

48

A57604

LEVER

- shifter shaft (Inner)

1шт.

49

A30875

RETAINER

- felt washer

1шт.

50

A30853

WASHER

- felt

1шт.

51

A27409

WASHER

- spool seal

1шт.

52

A64836

O-RING,0.487" ID x 0.693" OD

"O" RING - outer handle

1шт.

53

A30880

RETAINER

- felt washer

1шт.

54

A30879

WASHER

- felt

1шт.

55

A30881

SEALING WASHER,19.45mm ID x 31.35mm OD

WASHER - spool seal

1шт.

56

A64837

O-RING,0.103" Thk x 0.75" ID, -116, Cl 5, 75 Duro

"O" RING - shaft seal

1шт.

57

A57546

ARM

ASSY. - valve spool shifter lever (Inner), Includes Ref: 58

1шт.

58

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set (1/4 x 1/4" N.C. hex. sckt., hdless, cup. pt.)

1шт.

63

A57547

ARM

ASSY. - valve spool shifter lever (Outer), Includes Ref: 64

1шт.

64

178-875

SET SCREW,Hex Soc, 1/4"-20 x 1/4"

SCREW - set (1/4 x 1/4" N.C. hex. sckt. hdless. cup pt.)

1шт.

65

A57554

PLUNGER

- hydraulic valve spool (Inner)

1шт.

66

A57555

PLUNGER

- hydraulic valve spool (Outer)

1шт.

67

A66472

SPRING

- plunger, hydraulic valve spool

2шт.

68

13-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5, Full Thd

4шт.

69

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

70

A66435

CAP

- hydraulic valve body

1шт.

71

A76374

GASKET

- hydraulic valve body cap

1шт.

72

86512512

PLUG,7/8" - 14 ORB

Incl. Ref 73 Hex Hd, 7/8"-14 ORB

1шт.

73

237-6010

O-RING,0.097" Thk x 0.755" ID, -910, Cl 6, 90 Duro

"O" RING - (5/8 x 3/4 x 3/32")

1шт.

78

A34392

PLUG

- pilot relief valve

1шт.

79

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

80

A34694

SHIM,.0201" Thk

Pilot relief spring (See note) .0201" Thk

1шт.

81

A34817

SHIM,.0149" Thk

Pilot relief spring (Blue) (See note) .0149" Thk

1шт.

82

A34391

SHIM,.0149" Thk

Pilot relief spring (See note) .0149" Thk

1шт.

82

A34390

SHIM,.0329" Thk

Pilot relief valve (See note) .0329" Thk

1шт.

83

A34849

SHIM,.0105" Thk

Pilot relief spring (See note) .0105" Thk

1шт.

84

A34492

SPRING

- pilot relief

1шт.

85

A57558

RETAINER

- pilot spring

1шт.

86

A57556

PISTON

ASSY. - pilot

1шт.

87

A17526

O-RING,0.614" ID x 0.754" OD x 0.7"

"O" RING - pilot relief sleeve

2шт.

88

A34382

SPRING

- pilot relief valve

1шт.

89

A34493

RING,16.33mm ID x 19.02mm OD x 1.25mm Thk

- pilot relief valve

1шт.

90

A57553

PISTON

- pilot relief valve

1шт.

A43086

SEAL

KIT - seal (Includes items 9, 16, 22, 36, 37, 49 thru 56, 71, 73, 79, 87 & 89)

1шт.

A42888

KIT

- seal (Includes items 79, 87 & 89)

1шт.

Выбрано товаров: 40
