(178) - HYDRAULICS, RIGHT HAND STANDARD REMOTE HYDRUALICS CONTROLS, USED PRIOR TO TRANSMISSION S/N 2403837

Запчасти Case IH 1370 (178) - HYDRAULICS, RIGHT HAND STANDARD REMOTE HYDRUALICS CONTROLS, USED PRIOR TO TRANSMISSION S/N 2403837 (08) - HYDRAULICS

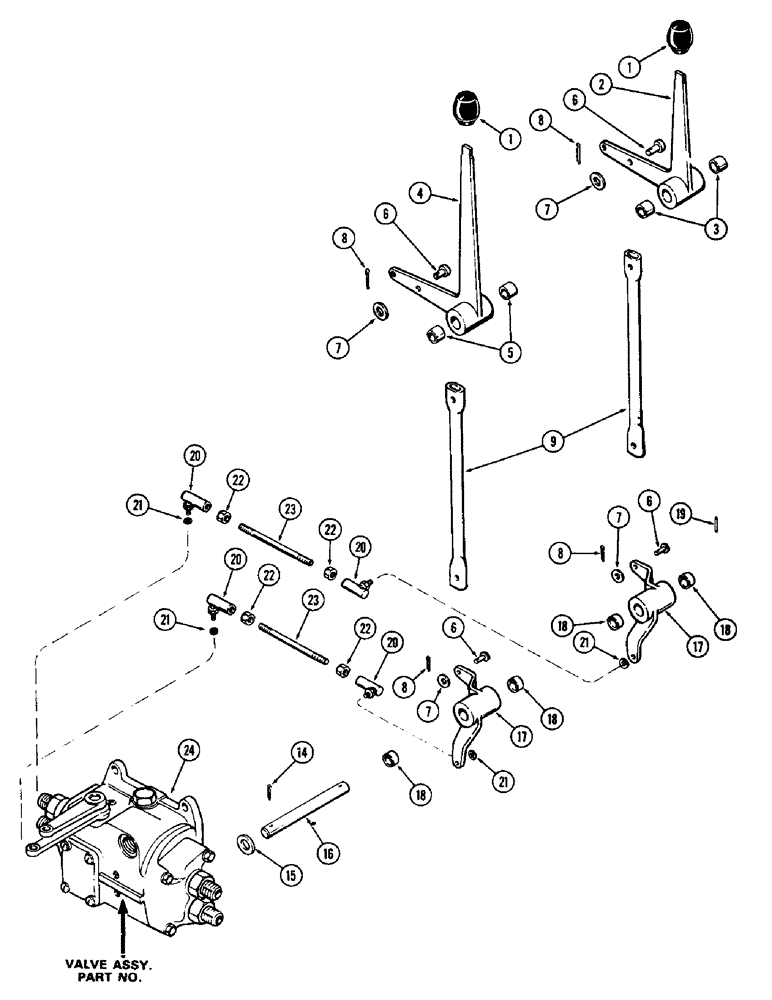

Схема запчастей Case IH 1370 - (178) - HYDRAULICS, RIGHT HAND STANDARD REMOTE HYDRUALICS CONTROLS, USED PRIOR TO TRANSMISSION S/N 2403837 (08) - HYDRAULICS
9
8
5
3
20
22
23
6
7
15
22
22
16
20
21
6
6
7
18
1
19
18
23
18
7
21
17
4
22
8
8
24
14
21
10
20
6
21
17
2
1
20
7
8
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

A65699

KNOB

- hyd. remotes lever (Replaces A62078)

2шт.

2

A63543

LEVER

ASSY. - remote, inner, Includes Ref: 3

1шт.

3

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- remote inner lever

2шт.

4

A63542

LEVER

ASSY. - remote, outer, Includes Ref: 5

1шт.

5

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- lever

2шт.

6

141-3

CLEVIS PIN,5/16" x .940"

PIN, CLEVIS, (Upper link to hand levers) 5/16" x .940"

4шт.

7

195-21

WASHER,5/16"

- plain () 5/16"

4шт.

8

132-25

COTTER PIN,3/32" x 5/8"

Pin, Split (Cotter), 3/32" x 5/8"

4шт.

9

A61659

ROD

LINK - remote levers, upper

2шт.

14

132-30

COTTER PIN,3/32" x 1 1/4"

Pin, Split (Cotter), 3/32" x 1 1/4"

1шт.

15

195-41

WASHER,5/8"

1шт.

16

A59529

SHAFT

- remote bellcrank lever

1шт.

17

A63544

LEVER

ASSY. - remote bellcrank, Includes Ref: 18

2шт.

18

A59429

BUSHING,15.95mm ID x 19.13mm OD x 12.83mm L

- remote bellcrank lever

2шт.

19

138-61

LOCK PIN,1/8" x 1", Slotted

PIN, , Shaft to mtg. hub 1/8" x 1", Slotted

1шт.

20

A27382

BALL

JOINT - ball, remote lever, lower

4шт.

21

92-5

LOCK WASHER,5/16"

4шт.

22

25-115

NUT,5/16"-24, G5

- hex (5/16" NF)

4шт.

23

A63548

ROD

- remote lever, lower

2шт.

24

A63534

VALVE

ASSY. - R.H. standard remote hyds. (For repairs see Figures 182 & 184)

1шт.
