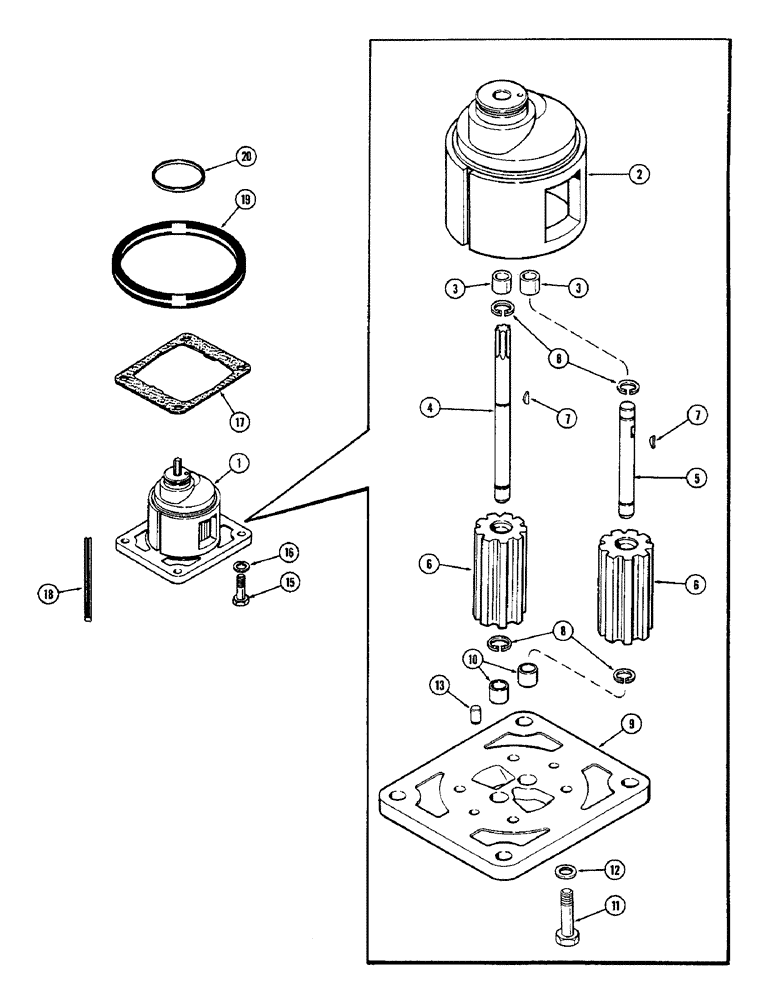

Запчасти Case IH 1370 (177A) - HYDRAULICS, A64092 HYDRAULIC OIL CHARGING PUMP ASSEMBLY (08) - HYDRAULICS

1

A64092

PUMP

ASSY. - charging, hyd. oil, Includes Ref: 2 - 20

1шт.

2

A64093

HOUSING

BODY ASSY. - pump, Includes Ref: 3

1шт.

3

A11521

BUSHING,11.89mm ID x 15.93mm OD x 12.83mm L

- pump body

2шт.

4

A64099

SHAFT

- drive gear

1шт.

5

A64097

SHAFT

- driven gear

1шт.

6

A64096

GEAR

- drive & driven (9T)

2шт.

7

126-9

WOODRUFF KEY,#3, 1/8" x 1/2"

2шт.

8

T37344

SNAP RING,#50, Ext

Ring, Snap, #50, Ext

4шт.

9

A63333

PLATE

COVER ASSY. - pump

1шт.

10

A11521

BUSHING,11.89mm ID x 15.93mm OD x 12.83mm L

- pump cover

2шт.

11

13-628

BOLT,Hex, 3/8" - 16 x 1-3/4", Gr 5

Cover to body Hex, 3/8"-16 x 1 3/4", G5

4шт.

12

A63335

WASHER

- seal, cover to body (3/8 x 21/32")

4шт.

13

A11528

PIN,7.81mm OD x 14.29mm L

- dowel, Serial Range: cover-body

2шт.

15

13-828

BOLT,Hex, 1/2" - 13 x 1-3/4", Gr 5

- pump to torque tube (1/2 x 1-3/4" N.C. hex.)

4шт.

16

92-8

LOCK WASHER,1/2"

4шт.

17

A63339

GASKET

- oil pump to torque tube

1шт.

18

A63336

OIL SEAL

- oil pump side (9/32" x 3-5/16" lg.)

2шт.

19

A63337

OIL SEAL

- oil pump to torque tube (4-3/16 x 4-1/2 x 13/64" sq.)

1шт.

20

A59001

O-RING,1.612" ID x 1.818" OD

"O" RING - oil pump to torque tube (1-39/64 x 13/16 x 3/32")

1шт.
