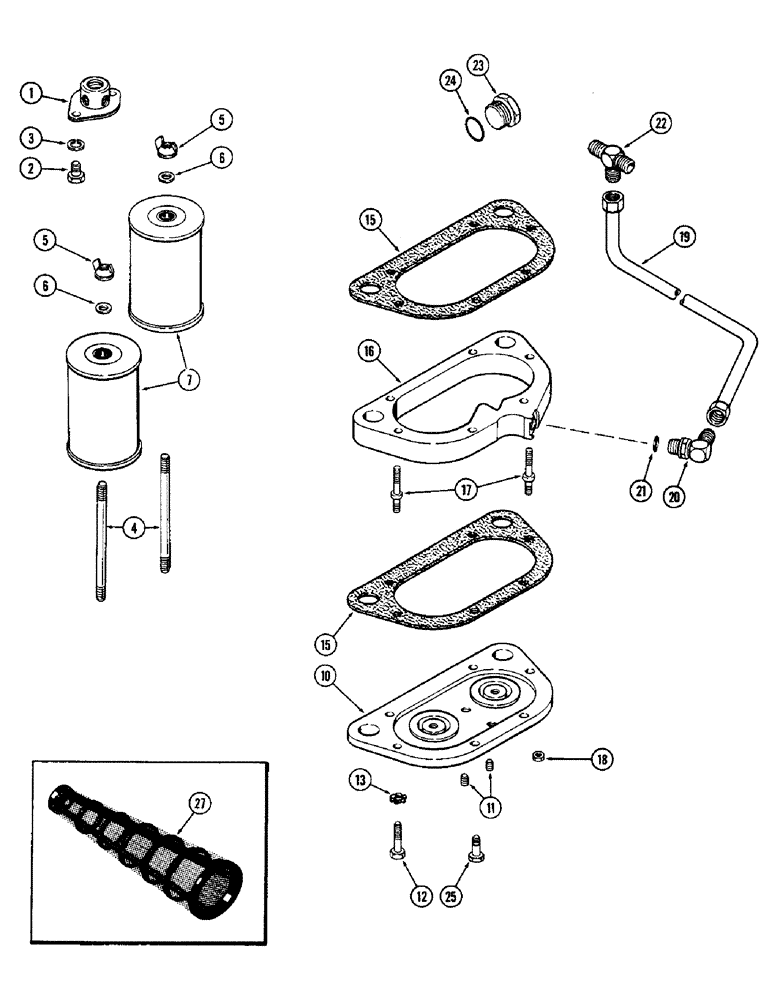

Запчасти Case IH 1370 (176) - HYDRAULICS, CHARGING PUMP, OIL FILTERS AND INLET FILTER (08) - HYDRAULICS

1

A63343

REGULATOR

- filter pressure

1шт.

2

13-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5, Full Thd

Regulator to torque tube Hex, 3/8"-16 x 3/4", G5, Full Thd

2шт.

3

92-6

LOCK WASHER,3/8"

2шт.

4

A63342

STUD

- oil filter element

2шт.

5

129-400

WING NUT,1/2"-13

NUT - wing (1/2")

2шт.

6

95-8

WASHER,1/2"

- plain (9/16 x 1-3/8 x 7/64") 1/2"

2шт.

7

NSS

NOT SOLD SEPARAT

ELEMENT - oil filter (Order A44012)

2шт.

A44012

HYDRAULIC OIL FILTER

KIT - hudraulic oil filter cartridge (Replaces A43702) (Includes 2 elements ref. 7 & 1 gasket ref. 15)

1шт.

10

A63340

MANIFOLD

- oil filter

1шт.

11

221-1010

PLUG,Sq Hd, 1/4"-18 NPTF

- pipe (1/4" square head) (In manifold)

2шт.

12

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

Manifold (w/o spacer) Hex, 3/8"-16 x 1 1/4", G5, Full Thd

4шт.

12

13-636

BOLT,Hex, 3/8" - 16 x 2-1/4", Gr 5

- manifold, 3/8 x 2-1/8" N.C. hex. (w/o spacer)

2шт.

13

193-46

LOCK WASHER,Ext-Int Tooth, 3/8"

WASHER - lock, 3/8" int.-ext. Shakeproof

6шт.

A42983

KIT

- hydraulic oil, variable volume circuit

1шт.

15

A63341

GASKET

- oil filter manifold & spacer

2шт.

16

A65913

SPACER - oil filter manifold

1шт.

17

A65914

STUD - spacer to trans. case

2шт.

18

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

19

A65915

TUBE -, Serial Range: spacer-tee

1шт.

20

218-5108

ELBOW,90 Degree Elbow, 1-1/16" - 12 Male JIC x 1-1/16" - 12 Male ORB

- tube to spacer, 3/4" tube, 90 degrees, Incl. Ref: 21

1шт.

21

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

22

218-596

TEE,1 1/16"-12 37 Degree

- 3/4" tube

1шт.

23

218-5158

PLUG,Hex Hd, 1 1/16"-12 ORB

Trans. case, Includes Ref 24 Hex Hd, 1 1/16"-12 ORB

1шт.

24

218-5008

O-RING,0.116" Thk x 0.924" ID, -912, Cl 6, 90 Duro

"O" RING - (3/4 x 59/64 x 1/8")

1шт.

25

13-644

BOLT,Hex, 3/8" - 16 x 2-3/4", Gr 5

- manifold & spacer (3/8 x 2-3/4" N.C. hex.)

2шт.

25

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- manifold & spacer (3/8 x 3-3/4" N.C. hex.)

2шт.

27

A64279

FILTER

- inlet

1шт.
