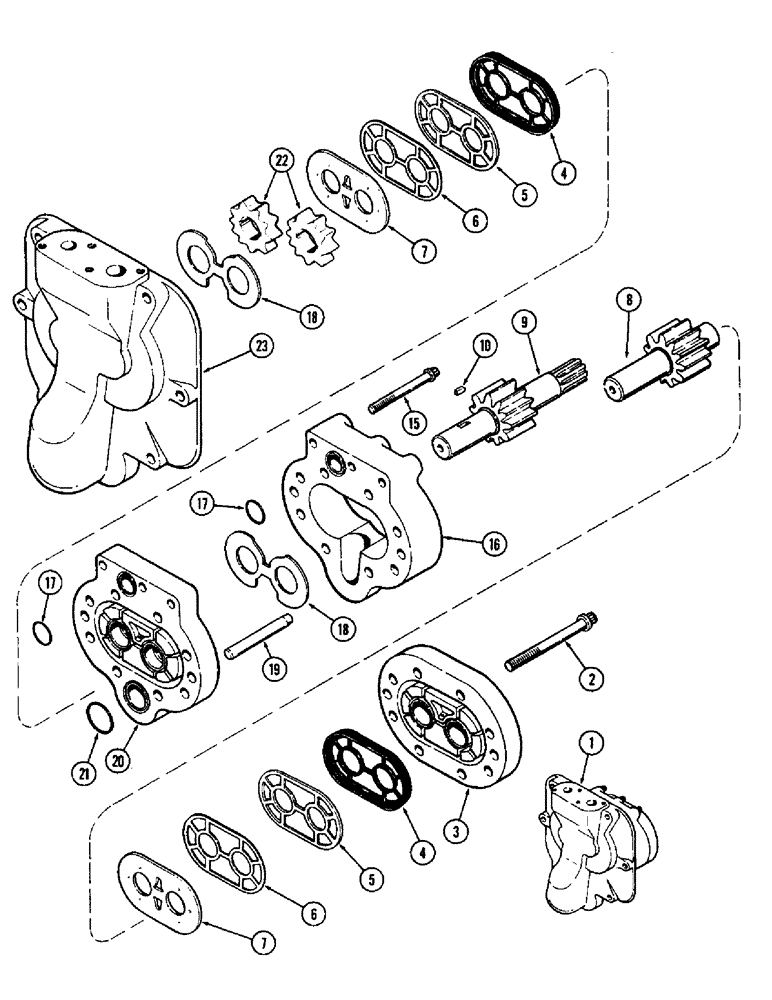

Запчасти Case IH 1370 (175A) - HYDRAULICS, A63302 DOUBLE GEAR HYDRAULIC PUMP ASSEMBLY (08) - HYDRAULICS

1

A63302

PUMP

PUMP ASY. - double gear, Includes Ref: 2 - 23

1шт.

1

AR63302

REMAN-HYD PUMP

Remanufactured, HYDRAULIC PUMP

1шт.

1

AC63302

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

166-59

12 PT SCREW,Flg, 3/8" - 16 x 3 3/4", Gr 8

SCREW - (3/8-16 x 3-3/4" Ferry hd. cap)

8шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - front drive bearing

1шт.

4

A42174

SEAL

SEAL - pump diaphragm

2шт.

5

H273920

GASKET

GASKET - gear cavity sealing backup

2шт.

6

H260935

GASKET

GASKET - pump gear cavity sealing

2шт.

7

D41321

DIAPHRAGM

DIAPHRAGM - pump

2шт.

8

NSS

NOT SOLD SEPARAT

GEAR - idler

1шт.

9

NSS

NOT SOLD SEPARAT

GEAR - drive, with splined shaft

1шт.

10

A43627

KEY

KEY - rear drive, Serial Range: gear-shaft

1шт.

15

166-33

12 PT SCREW,Flg, 5/16" - 18 x 2 3/4", Gr 8

SCREW - (5/16-18 x 2-3/4" Ferry hd. cap)

3шт.

16

NSS

NOT SOLD SEPARAT

BODY - main front pump

1шт.

17

A43626

O-RING,0.103" Thk x 0.799" ID, -117, Cl 6, 90 Duro

"O" RING - bearing port seal

2шт.

18

NSS

NOT SOLD SEPARAT

PLATE - thrust, rear pump

2шт.

19

NSS

NOT SOLD SEPARAT

PIN - dowel

1шт.

20

NSS

NOT SOLD SEPARAT

ADAPTER - center bearing

1шт.

21

A13184

O-RING,0.103" Thk x 0.987" ID, -120, Cl 5, 75 Duro

"O" RING - inlet port outer body to bearing

1шт.

22

A42797

GEAR

GEARS - rear pump

2шт.

23

NSS

NOT SOLD SEPARAT

HOUSING - rear backplate bearing

1шт.

A43635

KIT

KIT - seal (Includes items 4, 5, 6, 7, 17, 18 & 21)

1шт.
