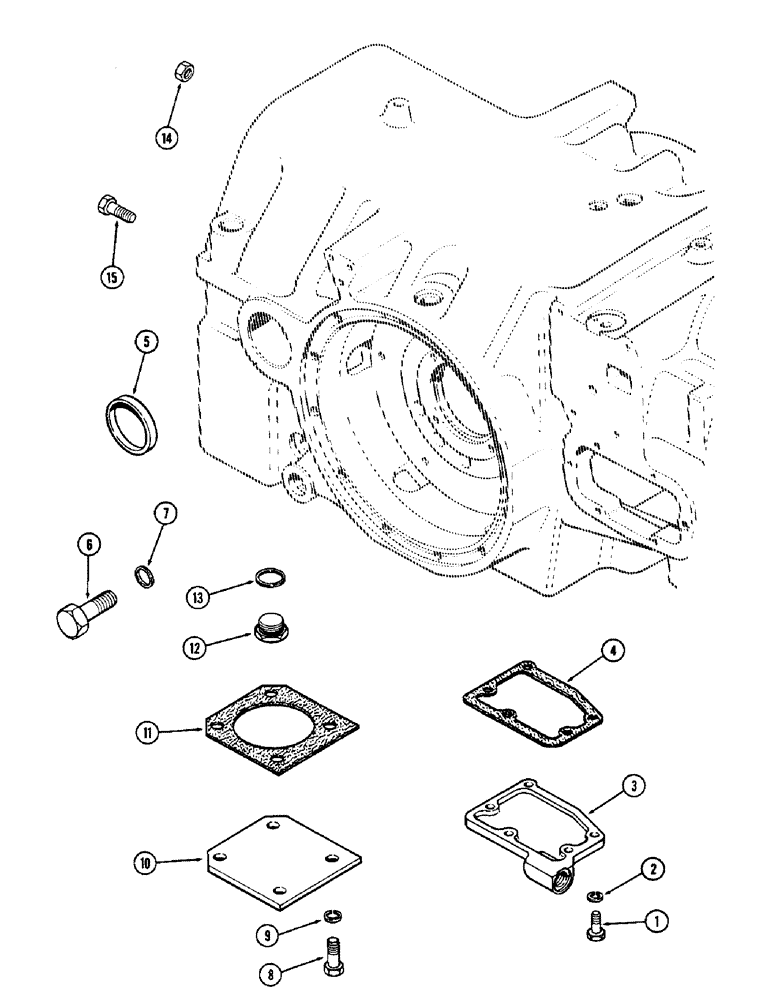

Запчасти Case IH 1370 (170) - HYDRAULICS, TRANSMISSION COVERS AND HYDRAULIC CIRCUITRY, USED WITHOUT HITCH (08) - HYDRAULICS

1

13-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5, Full Thd

5шт.

2

92-6

LOCK WASHER,3/8"

5шт.

3

A64015

COVER

- manifold

1шт.

4

A64016

GASKET

- manifold

1шт.

5

A63091

PLUG,Cup, 3 7/8"

- oil retaining (Rock shaft hole openings)

2шт.

6

13-1648

BOLT,Hex, 1" - 8 x 3", Gr 5

- (1 x 3" N.C. hex.) (Bellcrank stud hole)

1шт.

7

A27366

GASKET

- bolt

1шт.

8

13-1028

BOLT,Hex, 5/8" - 11 x 1-3/4", Gr 5, Full Thd

8шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

8шт.

10

A63496

COVER

- lift cylinder

2шт.

11

A63497

GASKET

- cylinder cover

2шт.

12

A63498

PLUG

- transmission D.O.M. linkage opening

1шт.

13

A63447

GASKET

- D.O.M. linkage plug

1шт.

14

129-563

NUT,5/8"-11, G8

- hex. (5/8" N.C. hex.) (P.T.O. stud)

2шт.

15

26-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

- (5/8 x 2" N.C. hex.), P.T.O. cover to hsg.

2шт.
