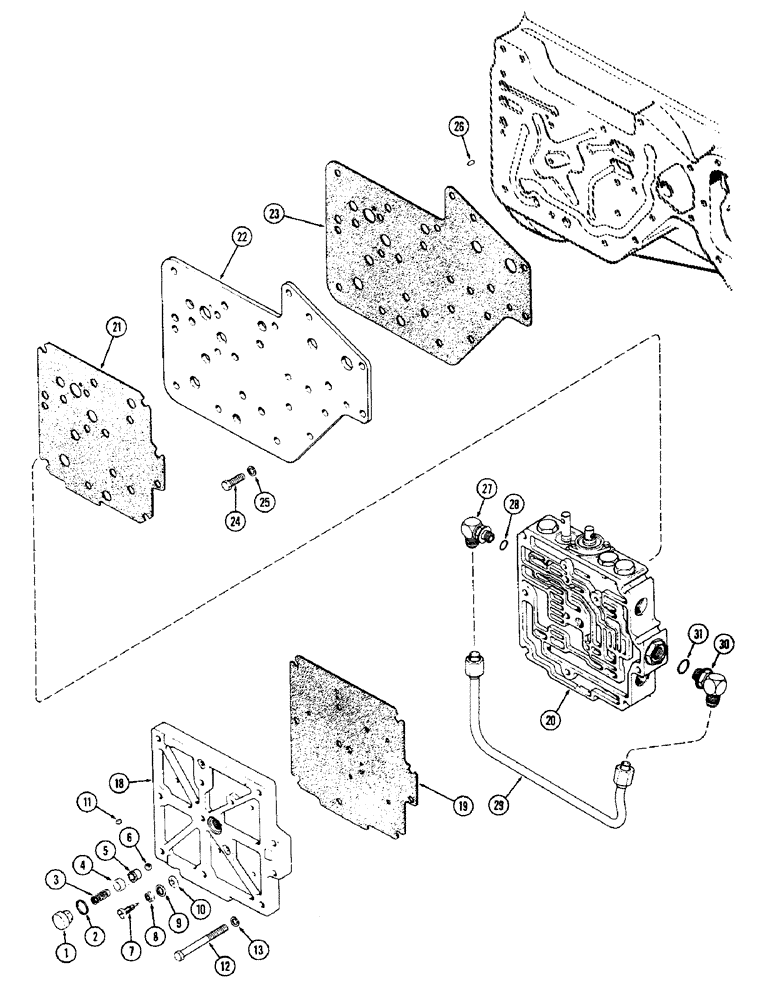

Запчасти Case IH 1370 (168) - HYDRAULICS, TRANSMISSION CONTROL VALVE AND ATTACHING PARTS (08) - HYDRAULICS
№
Артикул
Название
Примечание
Количество
1
A62588
PLUG
- detent
1шт.
3
A61696
SPRING
- detent ball
1шт.
4
A62107
SPACER
- detent
1шт.
5
A59062
SLEEVE
- detent
1шт.
6
211-12
BALL,7/16 Dia
- detent (7/16" dia. chrome steel)
1шт.
7
A59073
NEEDLE
- retard orifice
2шт.
8
25-154
JAM NUT,Jam, 1/4"-28, G5
- hex, jam (1/4"-28 NF)
2шт.
10
A59074
SEAL
- thread (1/4" I.D.)
2шт.
11
221-1011
DRAIN PLUG,Sq Hd, 1/8"-27 NPTF
PLUG - pipe, valve cover (1/8" square head)
5шт.
12
13-660
BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5
- (3/8 x 3-3/4" N.C. hex.), Cover to torque tube
10шт.
13
92-6
LOCK WASHER,3/8"
10шт.
18
A64321
COVER
- trans. control valve
1шт.
19
A66734
GASKET
- valve to valve cover (Replaces A66108)
1шт.
20
A64327
CONTROL VALVE
VALVE ASSY. - trans. control valve (For repairs see Figure 172)
1шт.
21
A66736
GASKET
- valve to manifold plate (Replaces A66111)
1шт.
22
A65309
PLATE
- manifold (Replaces A63300)
1шт.
23
A66112
GASKET
- manifold to torque tube (Replaces A63301)
2шт.
24
13-618
BOLT,Hex, 3/8" - 16 x 1-1/8", Gr 5
Manifold to torque tube Hex, 3/8"-16 x 1 1/8", G5, Full Thd
2шт.
25
92-6
LOCK WASHER,3/8"
2шт.
26
A63087
NEEDLE ROLLER
PIN - dowel (3/16 x 3/4") (Valve to manifold plate to torque tube)
1шт.
27
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
Assy, Adjustable (1/2" tube O.D.), Includes Ref: 28 90º, 3/4"-16, 37º x 3/4"-16, O-Ring
1шт.
29
A64332
TUBE
- pilot, reverse lock out
1шт.
30
A63295
ELBOW,90 Degree, 3/4"-16, 37 Degree x 9/16"-18 O-Ring
ASSY. - 90 degree adjustable (1/2" tube O.D.) (Includes locknut, washer & "O" ring)
1шт.
2
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
"O" RING - (41/64 x 1/2 x 5/64")
1шт.
28
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
"O" RING - (1/2 x 5/8 x 1/16")
1шт.
31
218-5006
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
"O" RING - (1/2 x 5/8 x 1/16")
1шт.
Выбрано товаров: 27
