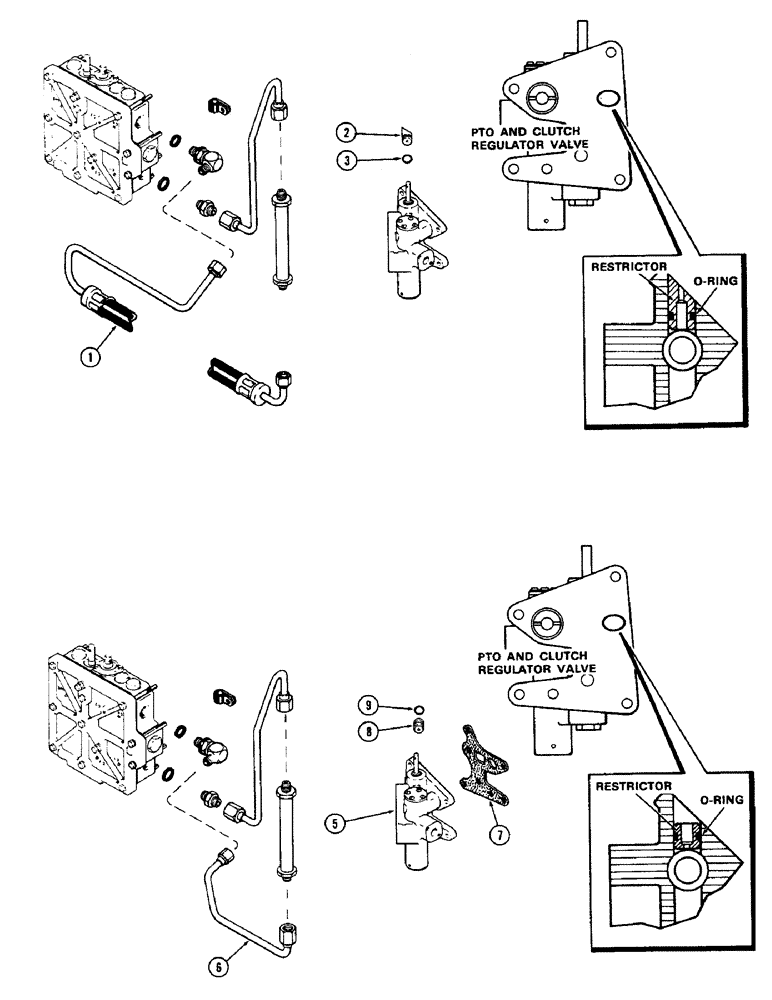

Запчасти Case IH 1370 (167A) - A137685 TRANSMISSION CONTROL VALVE KIT (08) - HYDRAULICS

A137685

KIT

- transmission control valve (See note), Includes Ref: 1 - 3

1шт.

1

A140102

TUBE ASSY.

HOSE - P.T.O. shock

1шт.

2

A67103

RESTRICTOR

- regulator (See inset)

1шт.

3

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O" RING - 7/16 x 5/8 x 3/32"

1шт.

A65826

LOCK VALVE

KIT - shuttle valve (See note), Includes Ref: 5 - 9

1шт.

5

A65308

VALVE

- shuttle, A65826, kit

1шт.

6

A65307

TUBE

- shuttle valve, A65826, kit

1шт.

7

A66113

GASKET

- regulator valve, A65826 shuttle, kit

1шт.

8

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O" RING - 7/16 x 5/8 x 3/32", A65826 shuttle valve kit

1шт.

9

A65827

RESTRICTOR

RESTRICTION - oil flow (See inset), A65826 shuttle valve kit

1шт.
