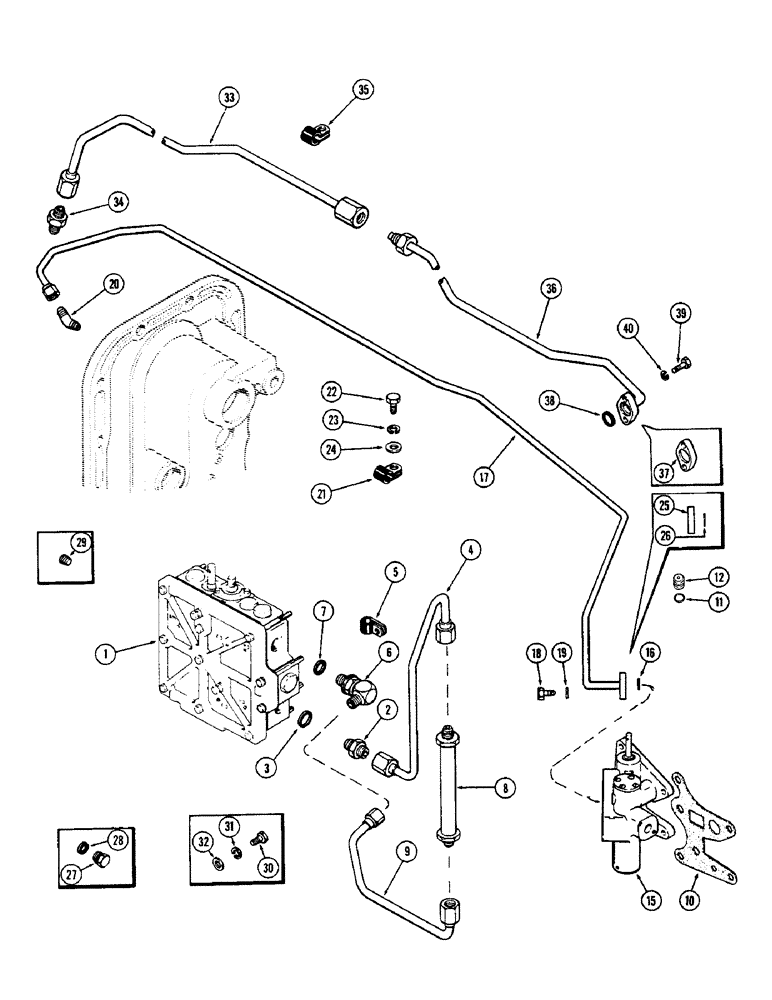

Запчасти Case IH 1370 (166) - HYDRAULICS, P.T.O. PLUMBING (08) - HYDRAULICS

1

A66707

VALVE

ASSY. - trans. control valve (Repairs Figure 172) (Replaces A64327)

1шт.

2

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

CONNECTOR Assy - straight, 3/4" N.F. x 1/2" tube, Incl. Ref 3

1шт.

4

A64347

TUBE

- shuttle valve (Upper)

1шт.

5

49838

CLAMP

- tube, upper shuttle valve tube to double pump

1шт.

6

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSY. - 3/4" N.F. x 1/2" tube, 90 degrees, Includes Ref: 7

1шт.

A65826

LOCK VALVE

KIT - shuttle valve (Replaces A64346 & A64348) (See Figure 167A for service information), Includes Ref: 8 - 12

1шт.

8

A65308

VALVE

- shuttle (Replaces A64346)

1шт.

9

A65307

TUBE

- shuttle valve (Lower) (Replaces A64348)

1шт.

10

A66113

GASKET

- regulator valve

1шт.

11

A29197

O-RING,0.424" ID x 0.63" OD x 0.103"

"O" RING - oil restrictor (7/16 x 5/8 x 3/32")

1шт.

12

A65827

RESTRICTOR

- oil flow

1шт.

15

A65672

VALVE

ASSY. - P.T.O. & clutch regulator (Replaces A63353) (For repairs see Figure 158)

1шт.

16

A27410

O-RING,0.487" ID x 0.693" OD x 0.103"

"O" RING - (11/16 x 1/2 x 3/32")

1шт.

17

A63530

TUBE

- P.T.O. actuating

1шт.

18

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Tube flange Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

19

92-5

LOCK WASHER,5/16"

2шт.

20

218-533

ELBOW,45 Degree, 9/16-18" 37 Degree x 1/4"-18, NPTF

(PTO housing) 45º, 9/16-18" 37º x 1/4"-18, NPTF

1шт.

21

49852

PTO SHAFT

- tube (P.T.O. actuating)

1шт.

22

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Clamp to trans. case top Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

23

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

24

95-4

WASHER,1/4"

- plain () 1/4"

1шт.

25

A63533

WASHER

CAP - P.T.O. valve lube opening hole (Used w/o P.T.O. & w & w/o differential lock)

1шт.

26

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - (13/16 x 5/8 x 3/32") (Used w/o P.T.O. & w & w/o differential lock)

1шт.

27

A62564

PLUG

- pressure regulator (3/4" N.F.) (In control valve) (Used w/o P.T.O. & w & w/o differential lock)

2шт.

30

13-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5, Full Thd

Tube clamp on L.H. side of torque tube) (Used w/o P.T.O. & w/diff. lock) Hex, 1/4"-20 x 3/4", G5, Full Thd

1шт.

31

92-4

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

32

95-4

WASHER,1/4"

- plain () 1/4"

1шт.

33

A64449

TUBE

- P.T.O. lube (Rear)

1шт.

34

218-455

HYD CONNECTOR,3/4" - 16 Male JIC x 1/4" - 18 Male NPTF

CONNECTOR - (1/4 P.T. x 1/2") (P.T.O. lube cover)

1шт.

35

49836

CLAMP

- P.T.O. rear lube tube (Held by L.H. remote valve mtg. bolt)

1шт.

36

A64448

TUBE - P.T.O. lube (Front)

1шт.

37

A63533

WASHER

CAP - 2 bolt flange (Used w/o P.T.O. & w & w/o diff. lock)

1шт.

38

A7982

O-RING,0.103" Thk x 0.612" ID, -114, Cl 5, 75 Duro

"O" RING - P.T.O. front lube tube

1шт.

39

13-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Front lube tube Hex, 5/16"-18 x 1", G5, Full Thd

2шт.

40

92-5

LOCK WASHER,5/16"

2шт.

3

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

7

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - (1/2 x 21/32 x 3/32")

1шт.

28

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

"O" RING - plug (1/2 x 21/32 x 3/32") (Used w/o P.T.O. & w & w/o differential lock)

2шт.
