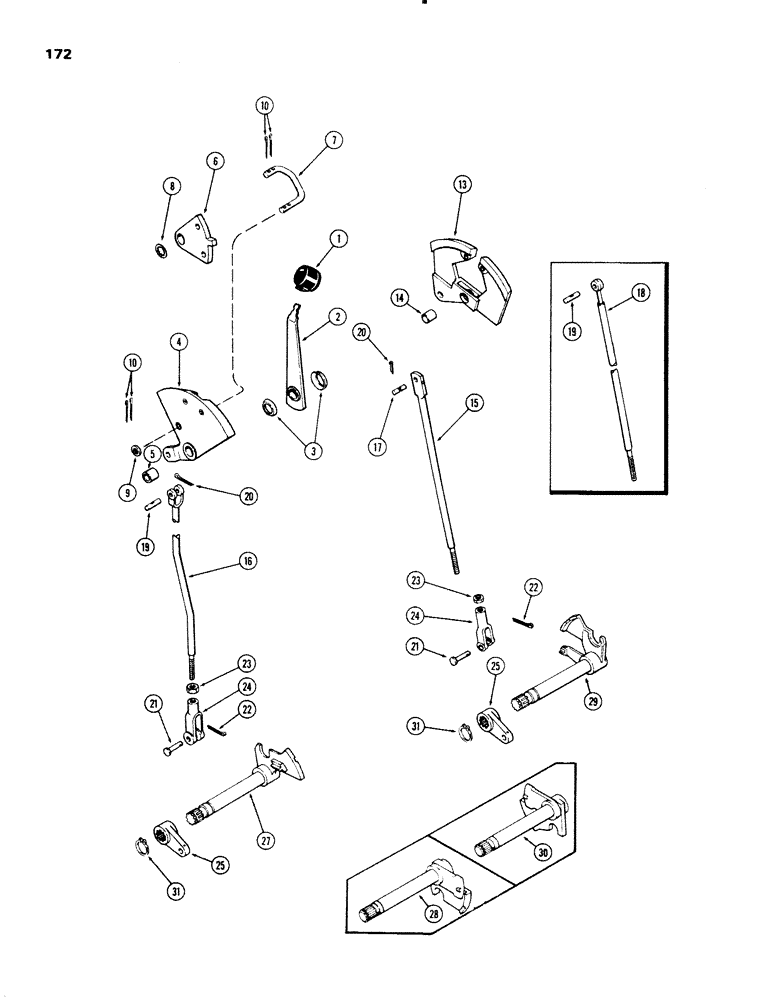

Запчасти Case IH 1270 (172) - RANGE SHIFT LINKAGE, FIRST USED TRANSMISSION SERIAL NUMBER 10028201 (06) - POWER TRAIN
№
Артикул
Название
Примечание
Количество
1
A137806
KNOB
- range shift hand lever
1шт.
2
A137816
LEVER
- hand, range shift
1шт.
3
A59662
WASHER
- range shift hand lever
2шт.
4
A135170
QUADRANT
ASSEMBLY - range shift (3rd & 4th), Includes Ref: 5
1шт.
5
A61866
BUSHING,15.95mm ID x 19.13mm OD x 18.41mm L
- quadrant, 5/8 x 3/4 x 3/4"
1шт.
6
A135501
LEVER
- reverse lockout
1шт.
7
A143350
ROD
LINK - reverse lockout (Replaces A135228)
1шт.
8
A64584
SNAP RING,#62, Ext
Ring, Snap, , reverse lockout link #62, Ext
1шт.
9
195-525
WASHER,3/8", SAE
- 13/32 x 13/16 x 1/16"
2шт.
10
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4"
4шт.
13
A61869
QUADRANT
ASSEMBLY - range shift (1st & 2nd), Includes Ref: 14
1шт.
14
A61871
BUSHING,15.95mm ID x 19.13mm OD x 6.48mm L
- quadrant, 5/8 x 3/4 x 1/4"
2шт.
15
A63019
ROD
- range shift (3rd & 4th)
1шт.
16
A147361
ROD
- range shift (1st & 2nd)
1шт.
17
A145484
PIN,9.46mm OD x 28.57mm L
-, Serial Range: rod-quadrant
1шт.
18
A135929
ROD
- range shift (1st & 2nd) (Order A147361 and A145484)
1шт.
19
A59258
PIN
- rod to quadrant (Use with A135929)
2шт.
20
132-30
COTTER PIN,3/32" x 1 1/4"
Pin, Split (Cotter), 3/32" x 1 1/4"
2шт.
21
141-54
CLEVIS PIN,3/8" x 1 1/16"
2шт.
22
132-26
COTTER PIN
Pin, Split (Cotter), 3/32" x 3/4"
2шт.
23
25-116
NUT,Hex, 3/8"-24, G5
- 3/8" N.F. hex.
2шт.
24
213-4
ADJUSTABLE CLEVIS,3/8"-24 x 2 1/2"
YOKE - range shift rod
2шт.
25
A64936
LEVER
- trans. range shift (1st & 2nd, 3rd & 4th)
2шт.
27
A146852
LEVER
- range (3rd & 4th) (1st used trans. ser. no. 10032099)
1шт.
28
A144099
LEVER
- range (3rd & 4th)(Used prior to trans. ser. no. 10032099) (Order A146851 & A146852)
1шт.
29
A146851
LEVER
- range (1st & 2nd) (1st used trans. ser. no. 10032099)
1шт.
30
A144098
LEVER
- range (1st & 2nd)(Used prior to trans. ser. no. 10032099) (Order A146851 & A146852)
1шт.
31
B18208
SNAP RING,#100, Ext
range shift lever #100, Ext
2шт.
Выбрано товаров: 28
