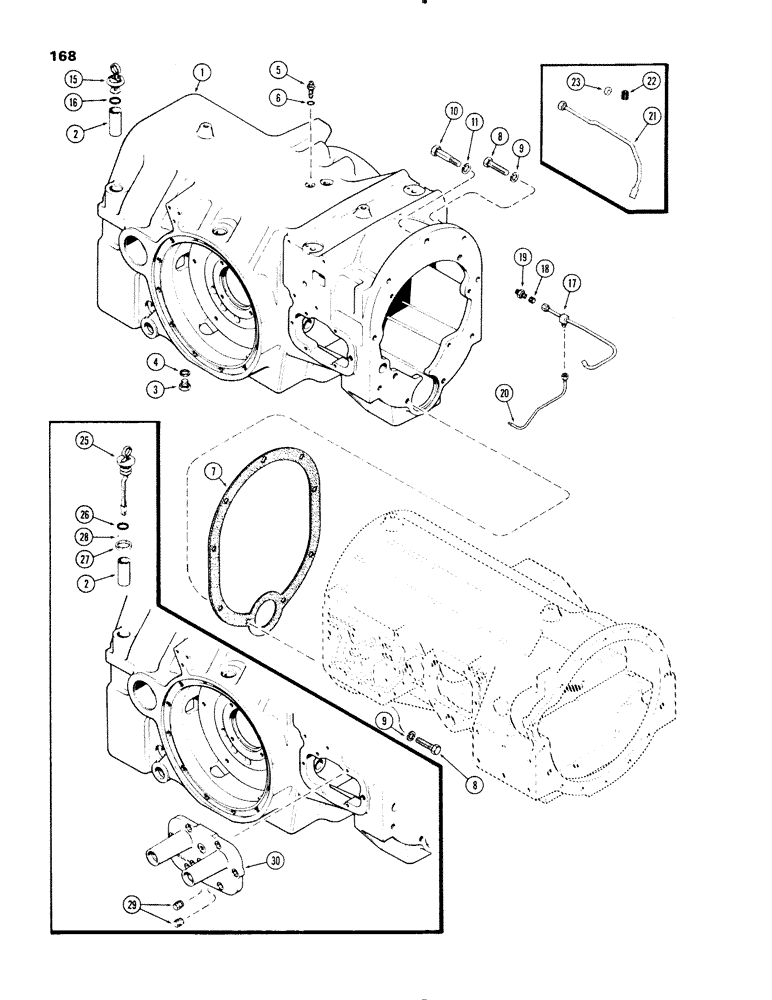

Запчасти Case IH 1270 (168) - TRANSMISSION HOUSING (06) - POWER TRAIN

1

A139888

HOUSING

ASSEMBLY - transmission (With 1-1/8" DOM mounting holes, See Figure: 374, (1st used transmission serial no. 2476547)

1шт.

1

A66172

HOUSING

ASSEMBLY - transmission (With 1" DOM mounting holes), See Figure: 374 (Used prior to transmision serial no. 2476547)

1шт.

2

A64405

TUBE

- oil filler

1шт.

3

A140222

PLUG

- drain

1шт.

4

A58608

GASKET

- drain plug

1шт.

5

218-671

FITTING,Blkhd, 7/16"-20, 37 Degree x 7/16"-20, 37 Degree

- bulkhead

1шт.

6

218-5003

O-RING,0.072" Thk x 0.351" ID, -904, Cl 6, 90 Duro

- fitting, 1/4 x 3/8 x 1/16"

1шт.

7

A150901

GASKET

- transmission housing to torque tube (Replaces A64087)

1шт.

8

13-1040

BOLT,Hex, 5/8" - 11 x 2-1/2", Gr 5

- 5/8 x 2-5/8" NC hex

1шт.

8

13-1044

BOLT,Hex, 5/8" - 11 x 2-3/4", Gr 5

- 5/8 x 3-1/8" NC hex

8шт.

9

92-10

LOCK WASHER,5/8"

WASHER, LOCK, 5/8"

9шт.

10

A63086

STEP BOLT

BOLT - dowel, 5/8" NC x 3-7/16")

1шт.

11

92-12

LOCK WASHER,3/4"

WASHER, LOCK, 3/4"

1шт.

15

A64404

BREATHER

ASSEMBLY - and oil filler cap (See oil level adjusting kit), Includes Ref: 16

1шт.

16

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- 1 x 1-1/4 x 1/8"

1шт.

17

A151748

PIPE

TUBE - lube line to (C1) clutch (1st used transmission serial no. 10059747)

1шт.

18

218-263

SPACER

SLEEVE - flared tube

1шт.

19

218-443

HYD CONNECTOR,9/16" - 18 Male JIC x 1/4" - 18 Male NPTF

FITTING

1шт.

20

A151885

TUBE

- countershaft lube (1st used transmission serial no. 10059747)

1шт.

21

A136811

TUBE

ASSEMBLY - lube line to (C1) clutch (Used prior to transmission serial no. 10059747)

1шт.

22

49845

CLAMP

CLIP - use with A136811

1шт.

23

R12644

BUSHING

SPACER - use with A136811

1шт.

A153332

KIT

ADJUSTING KIT - oil level, Includes Ref: 25-29

1шт.

25

A153269

DIPSTICK

ASSEMBLY - with breather and oil level clip, adjusting kit, Includes Ref: 26

1шт.

26

A7623

O-RING,0.139" Thk x 0.984" ID, -214, Cl 5, 75 Duro

- (1 x 1-1/4 x 1/8"), oil level adjusting kit

1шт.

27

A153275

RING

- filler tube, oil level adjusting kit

1шт.

28

138-37

LOCK PIN,3/32" x 1/2", Slotted

PIN, , Dipstick locating, oil level adjusting kit 3/32" x 1/2", Slotted

2шт.

29

221-664

PLUG,Hex Hd, 1/2"-14

- shifter housing (1/2" PT, hex head), oil level adjusting kit

2шт.

30

REF

INSTRUCTION

HOUSING - shifter, See Figure: 176, oil level adjusting kit

1шт.
