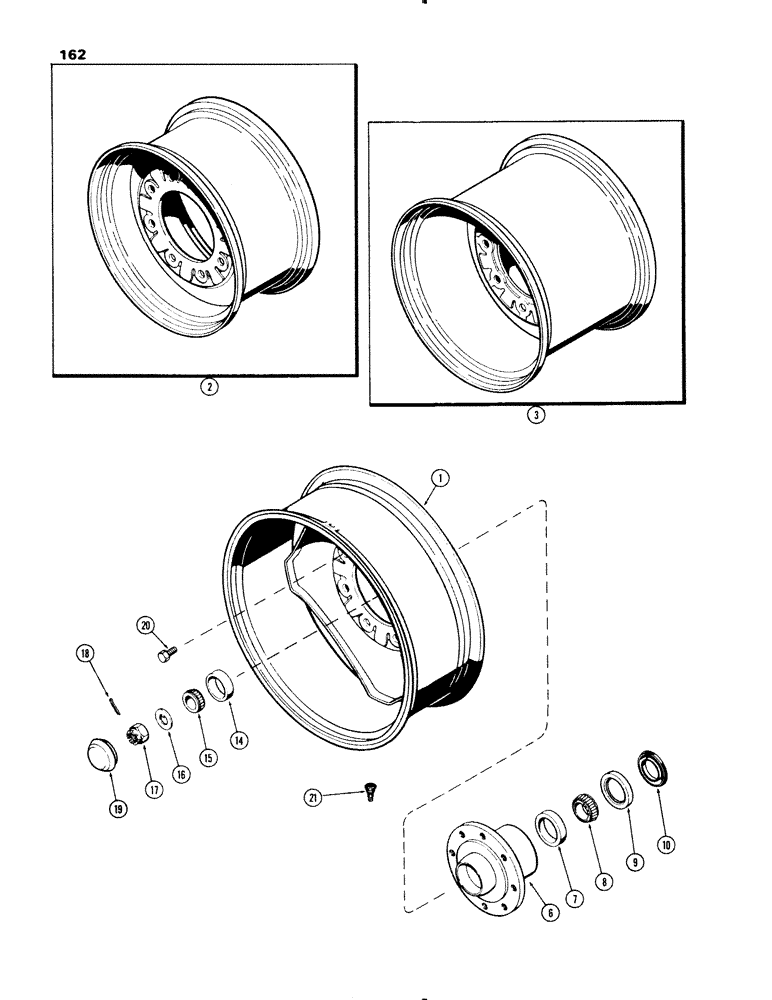

Запчасти Case IH 1270 (162) - FRONT WHEELS, FOR 16 INCH OR 20 INCH TIRE (05) - STEERING

1

A61574

WHEEL

- 1-1/2" offset (for 9.50 x 20 tire)

2шт.

2

A61570

WHEEL

- 1-1/4" offset (for 10.00 x 11.00 x 16 tire)

2шт.

3

A62132

WHEEL

- 1/2" offset (for 14L x 16 tire)

2шт.

6

A66759

HUB

ASSEMBLY - front wheel, Includes Ref: 7, 14

2шт.

7

A61446

BEARING CUP

CUP - bearing, inner (3-35/64" O.D.)

2шт.

8

A61447

ROLLER BEARING,2.1651" ID x 0.9045" Thk

CONE - bearing, inner (2-5/32" I.D.)

2шт.

9

A61448

OIL SEAL,67.26mm ID x 97.16mm OD x 12.7mm Thk

- oil, outer

2шт.

10

A61449

SEAL,64.97mm ID x 94.67mm OD x 12.45mm Thk

- oil, inner

2шт.

14

G15214

BEARING CUP

CUP - bearing, outer (3-1/16" O.D.)

2шт.

15

G15215

ROLLER BEARING

CONE - outer bearing (1-25/32" I.D.)

2шт.

16

A62919

WASHER

- steering spindle

2шт.

17

25-1918

SLOTTED NUT,1 1/8"-12, G5, Thk

NUT - slotted, 1-1/8" N.F. hex

2шт.

18

132-97

COTTER PIN,3/16" x 1 3/4"

Pin, Split (Cotter), 3/16" x 1 3/4"

2шт.

19

A61450

BEARING CAP,3.155" ID x 3.41" OD x 1.38"

CAP - oil retainer

2шт.

20

A62567

WHEEL BOLT

BOLT - lug, front wheel (5/8 x 2" N.F. special)

16шт.

21

A38261

VALVE

- tubeless tire

2шт.
