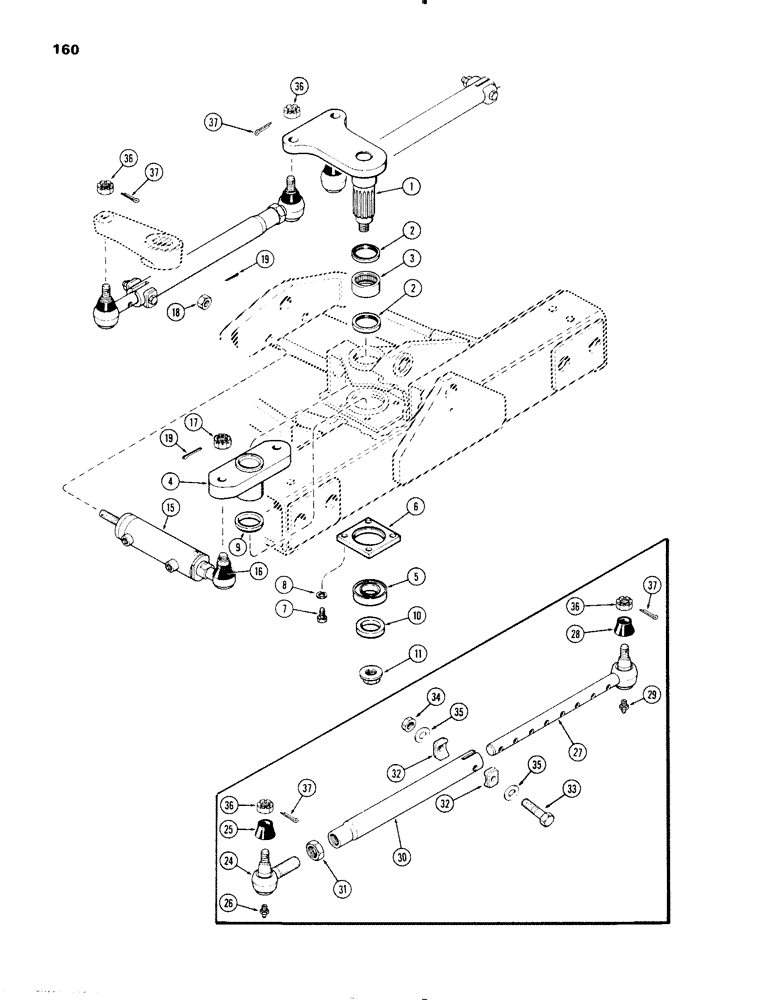

Запчасти Case IH 1270 (160) - CENTER STEERING ARMS AND CYLINDER (05) - STEERING

1

A65613

ARM

- center steering, upper

1шт.

2

A61414

OIL SEAL

- oil (2-1/8 x 2-1/2 x 3/16")

2шт.

3

A61415

NEEDLE BEARING,Needle, 53.96mm ID x 63.51mm OD x 25.4mm W

BEARING - needle

1шт.

4

A62231

ARM

- center steering, lower

1шт.

5

A137711

BALL BEARING,1.5748" ID x 3.1496" OD x 0.7037"

BEARING - ball (Replaces A61888)

1шт.

6

A62212

PLATE

- bearing end cap

1шт.

7

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

4шт.

8

92-6

LOCK WASHER,3/8"

4шт.

9

A65539

WASHER

- center steering shaft

1шт.

10

195-2098

WASHER,15/16" x 2" x .238"

- (15/16 x 1 x 3/16")

1шт.

11

A65435

LOCK NUT

- (7/8 N.C. hex. two-way lock w/flange)

1шт.

15

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering, See Figures: 154, 156

2шт.

16

A31186

BOOT

SEAL - weather

2шт.

17

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex. (5/8" N.F., slotted)

2шт.

18

25-1112

NUT,3/4"-16, G5

- hex. (3/4" N.F.)

4шт.

19

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), 1/8" x 1 1/8"

4шт.

24

A43376

JOINT

END ASSEMBLY - inner (R.H. thread), tie rods, Includes Ref: 25, 26

2шт.

25

A31186

BOOT

- dust (rubber), tie rods

1шт.

26

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - lube (1/8" P.T., straight), tie rods

1шт.

27

A43374

BALL JOINT

END ASSEMBLY - outer (L.H. thread), tie rods, Include Ref: 28, 29

2шт.

28

A31186

BOOT

- dust (rubber), tie rods

1шт.

29

219-86

LUBE NIPPLE,1/8" NPTF

FITTING - lube (1/8" P.T. straight), tie rods

1шт.

30

A137101

TUBE

- intermediate (w/2 slots) (Replaces A43378), tie rods

2шт.

30

A137101

TUBE

- intermediate (w/1 slot) (Order A137101), tie rods

2шт.

31

A43379

JAM NUT

- lock, tie rods

2шт.

32

A145857

CLAMP,9.91mm ID x 25.4mm OD x 7.365mm Thk

- tie rod tube

4шт.

33

114-260

BOLT,Hex, 3/8" - 24 x 2-1/2", Gr 8

- (3/8 x 2-1/2" N.F. hex. Grade 8), tie rods

2шт.

34

131-1133

NUT,3/8"-24, GC

NUT - lock (3/8" N.F. hex.), tie rods

2шт.

35

D26421

WASHER

- clamp bolt & nut, tie rods

4шт.

36

25-1310

SLOTTED NUT,5/8"-18, G5

NUT - hex. (5/8" N.F., slotted), tie rods

4шт.

37

132-49

COTTER PIN,1/8" x 1 1/8"

Pin, Split (Cotter), , Tie rods 1/8" x 1 1/8"

4шт.
