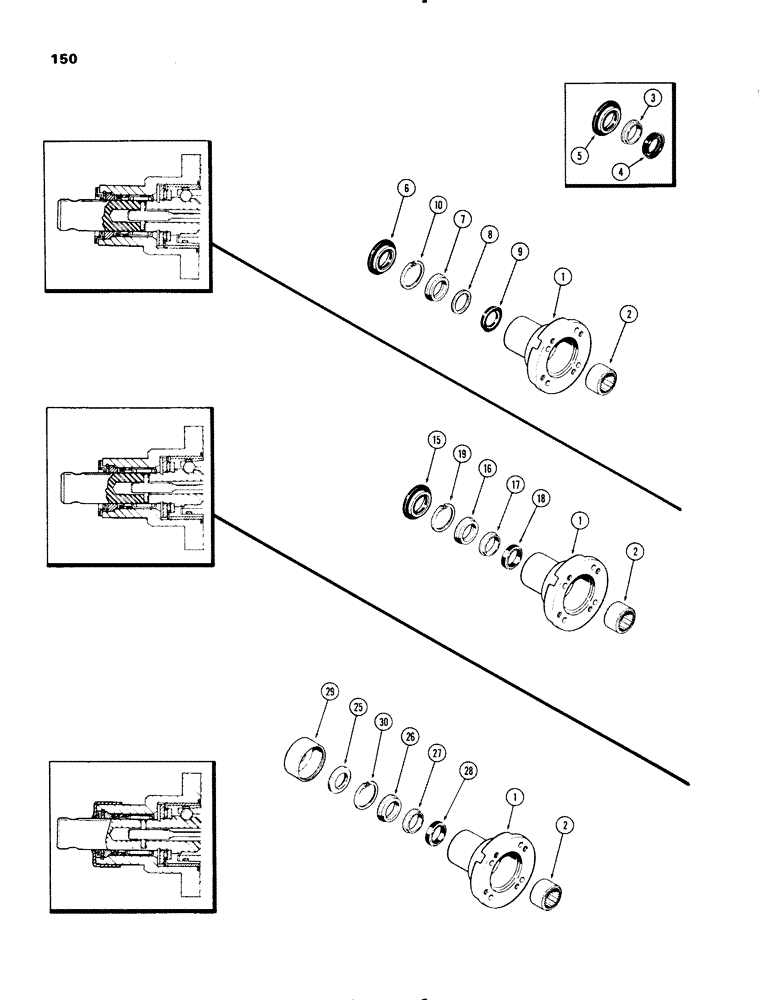

Запчасти Case IH 1270 (150) - STEERING PUMP UPPER COVER AND SEALS (05) - STEERING

1

D65139

COVER

ASSEMBLY - upper (Replaces A43562), Includes Ref: 2

1шт.

1

A43562

ASSEMBLY - upper (Order D65139), Includes Ref: 2

1шт.

2

A43564

NEEDLE BEARING,0.875" ID x 1.1255" OD x 0.75"

BEARING - needle (w/plastic cage)

1шт.

A47038

SEAL KIT,Pump Shaft

KIT - seal, drive shaft, Includes Ref: 3-5

1шт.

3

NSS

NOT SOLD SEPARAT

SPACER - seal

1шт.

4

NSS

NOT SOLD SEPARAT

SEAL - shaft

1шт.

5

NSS

NOT SOLD SEPARAT

SEAL - weather

1шт.

A45535

KIT

- seal, drive shaft (Order A47038), 1st used P.I.N. 8786191, with A141905 steering pump, Includes Ref: 6-9

1шт.

6

NSS

NOT SOLD SEPARAT

SEAL - dirt (plastic), 1st used P.I.N. 8786191, with A141905 steering pump

1шт.

7

NSS

NOT SOLD SEPARAT

SPACER - seal, 1st used P.I.N. 8786191, with A141905 steering pump

1шт.

8

NSS

NOT SOLD SEPARAT

RING - back-up,1st used P.I.N. 8786191, with A141905 steering pump

1шт.

9

NSS

NOT SOLD SEPARAT

RING - seal, 1st used P.I.N. 8786191, with A141905 steering pump

1шт.

10

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, seal, 1st used P.I.N. 8786191, with A141905 steering pump

1шт.

A45272

KIT

- seal, drive shaft (Order A47038), used with A139841 steering pump, Includes Ref: 15-18, Serial Range: -8786191

1шт.

15

NSS

NOT SOLD SEPARAT

SEAL ASSEMBLY - dirt (plastic), used with A139841 steering pump, Serial Range: -8786191

1шт.

16

NSS

NOT SOLD SEPARAT

SPACER - seal, used with A139841 steering pump, Serial Range: -8786191

1шт.

17

NSS

NOT SOLD SEPARAT

SEAL - pump shaft, used with A139841 steering pump, Serial Range: -8786191

1шт.

18

NSS

NOT SOLD SEPARAT

RING - seal, used with A139841 steering pump, Serial Range: -8786191

1шт.

19

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, seal washer, used with A139841 steering pump, Serial Range: -8786191

1шт.

A44582

REPAIR KIT

KIT - seal, drive shaft (Order A47038), used with A66390 steering pump, Includes Ref: 25-28, Serial Range: -8786191

1шт.

25

NSS

NOT SOLD SEPARAT

WASHER - felt, used with A66390 steering pump, Serial Range: -8786191

1шт.

26

NSS

NOT SOLD SEPARAT

SPACER - seal, used with A66390 steering pump, Serial Range: -8786191

1шт.

27

NSS

NOT SOLD SEPARAT

SEAL - pump shaft, used with A66390 steering pump, Serial Range: -8786191

1шт.

28

NSS

NOT SOLD SEPARAT

RING - seal, used with A66390 steering pump, Serial Range: -8786191

1шт.

29

D70586

SEAL,26.29mm ID x 41.66mm OD x 1.45mm Thk

SHIELD - end cover (Replaces A42057), used with A66390 steering pump, Serial Range: -8786191

1шт.

30

A21145

SNAP RING,1.25, Int, #125

Ring, Snap, 1.25", Int, #125, seal washer, used with A66390 steering pump, Serial Range: -8786191

1шт.
