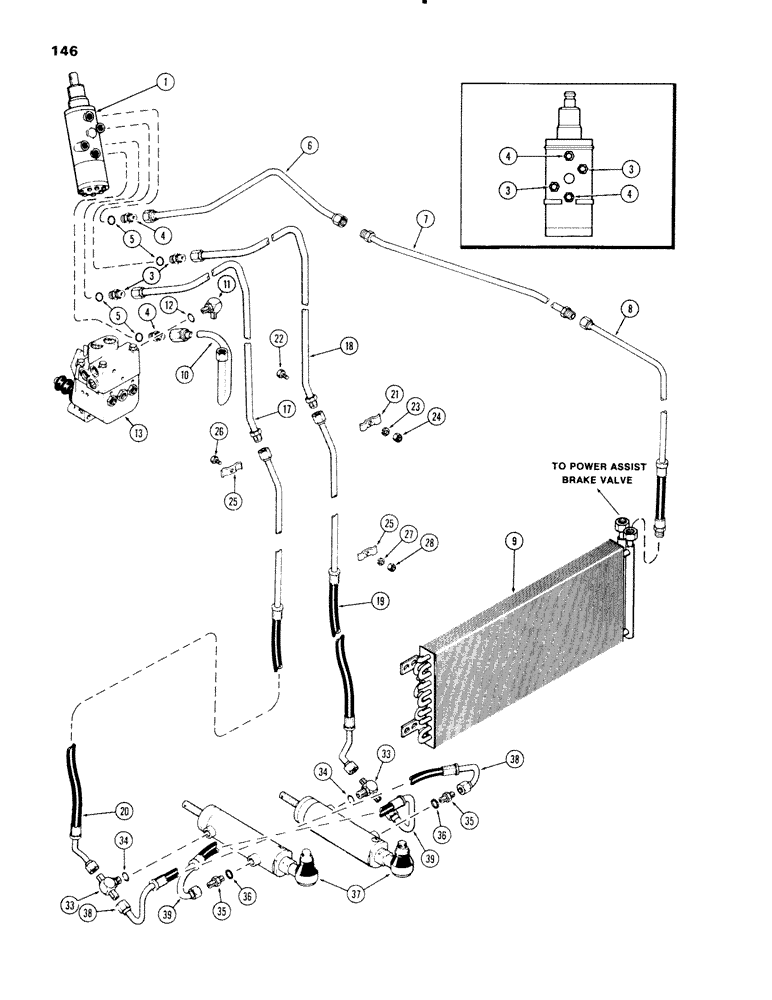

Запчасти Case IH 1270 (146) - HYDROSTATIC STEERING SYSTEM (05) - STEERING

1

REF

INSTRUCTION

PUMP ASSEMBLY - steering control, See Figure: 148

1шт.

3

D76050

HARDWARE

CONNECTOR - restrictor, cylinder ports (See Inset), Includes Ref: 5

2шт.

4

218-5351

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, O-Ring

CONNECTOR ASSEMBLY - (See Inset) (Replaces A36663), Includes Ref: 5

2шт.

5

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

6

A63654

TUBE

- steering return (steering pump to center oil cooler inlet tube)

1шт.

7

A63655

TUBE

- oil cooler inlet (center)

1шт.

8

A145875

HOSE

TUBE - transmission oil cooler inlet (front) (Replaces A64919)

1шт.

9

REF

INSTRUCTION

COOLER - oil (See Figure 004)

1шт.

10

A139385

TUBE

- steering valve inlet (Replaces A66431)

1шт.

11

218-5106

90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB

ASSEMBLY - 90 degree (in brake valve outlet port), Includes Ref: 12

1шт.

13

REF

INSTRUCTION

VALVE ASSEMBLY - power brake, See Figure: 266

1шт.

17

A63550

TUBE

- steering valve (right turn)

1шт.

18

A63551

TUBE

- steering vavle (left turn)

1шт.

19

A63552

HOSE ASSY.

HOSE - left hand steering cylinder

1шт.

20

A63553

HOSE

- right hand steering cylinder

1шт.

21

A63323

CLAMP

- tube (steering, Serial Range: tube-firewall)

1шт.

22

13-520

BOLT,Hex, 5/16" - 18 x 1-1/4", Gr 5

- (5/16 x 1-1/4" NC hex), clamp to firewall

1шт.

23

92-5

LOCK WASHER,5/16"

1шт.

24

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" NC)

1шт.

25

A63323

CLAMP

- hose (right hand to left hand steering hole)

2шт.

26

13-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

Clamps Hex, 5/16"-18 x 7/8", G5, Full Thd

1шт.

27

92-5

LOCK WASHER,5/16"

1шт.

28

9635082

NUT,5/16" - 18, Gr 5

- hex (5/16" NC)

2шт.

33

218-5193

TEE,3/4"-16, 37 Degree x 9/16"-18 x 7/8"-14, O-Ring Br

ASSEMBLY - branch, Includes Ref: 34

2шт.

34

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

35

218-5057

HYD CONNECTOR,9/16" - 18 JIC x 9/16" - 18 ORB

CONNECTOR ASSEMBLY - male

2шт.

36

218-5005

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.

37

REF

INSTRUCTION

CYLINDER ASSEMBLY - steering, See Figures: 156, 160

2шт.

38

A63644

HOSE

- cylinder crossover, lower

1шт.

39

A63645

HOSE

- cylinder crossover, upper

1шт.

12

218-5006

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

- 1/2 x 21/32 x 3/32")

1шт.
