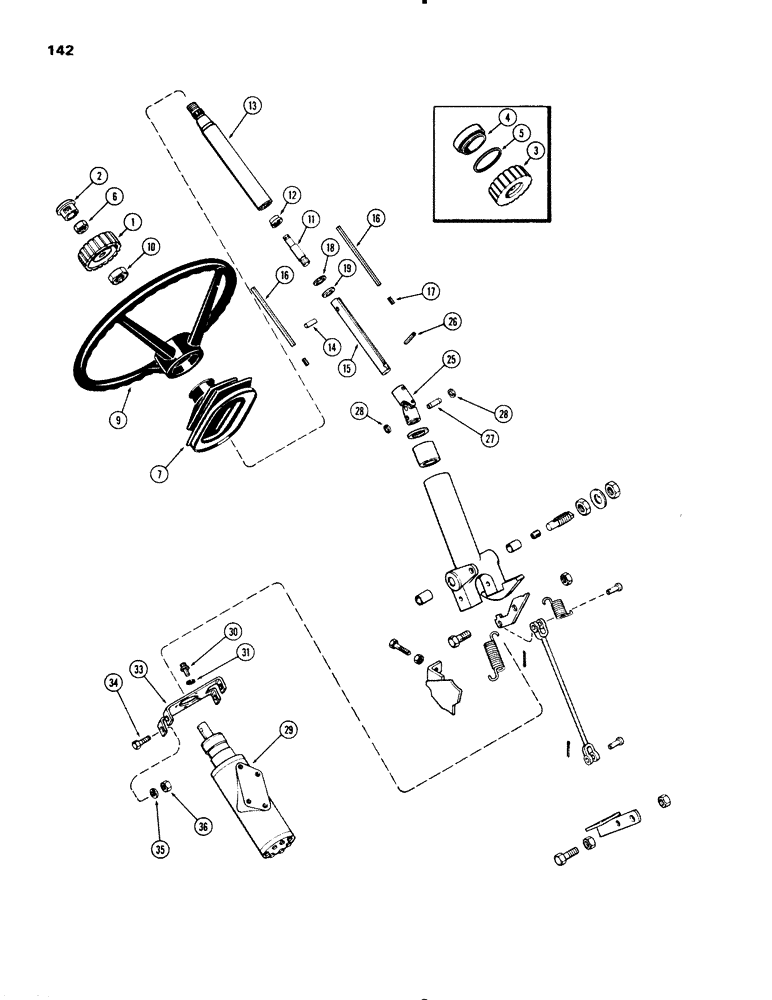

Запчасти Case IH 1270 (142) - STEERING WHEEL AND SHAFTS (05) - STEERING

1

A141827

CAP

KNOB - lock (1st used P.I.N. 8808494)

1шт.

2

353-413

PLUG,Dome, 1.187" hole, Nylon

- nylon, lock knob (1st used P.I.N. 8808494)

1шт.

3

A61293

KNOB

- lock, (Order A141827 & 353-413), Serial Range: -8808494

1шт.

4

A62210

PLUG

MEDALLION, Serial Range: -8808494

1шт.

5

D26115

O-RING,0.139" Thk x 2.109" ID, -227, Cl 5, 75 Duro

RING - medallion, Serial Range: -8808494

1шт.

6

25-146

JAM NUT,Jam, 3/8"-16, G5

- (3/8" N.C. hex. jam), knob to shaft

1шт.

7

A61910

BOOT

- rubber

1шт.

9

A65544

STEERING WHEEL

1шт.

10

A14567

JAM NUT

- (13/16" N.F. hex.), Serial Range: wheel-shaft

1шт.

11

A63683

SHAFT

- steering, telescopic lock

1шт.

12

A63684

LOCK NUT

- steering lock (1/2-13 N.C. special) (L.H. thread)

1шт.

13

A63681

SHAFT

- steering, outer

1шт.

14

A63685

PIN

- stop

1шт.

15

A63697

SHAFT

- steering, inner

1шт.

16

A63686

KEY

- steering lock

2шт.

17

A63687

LOCK

- friction

2шт.

18

A63688

FRICTION WASHER

- friction lock retainer

1шт.

19

A58116

RING

- snap, internal

1шт.

25

A63689

JOINT

- universal

1шт.

26

138-172

LOCK PIN,3/8" x 1 1/4", Slotted

PIN, 3/8" x 1 1/4", Slotted

1шт.

27

A64000

PIN,9.42mm OD x 38.1mm L

- steering pump shaft

1шт.

28

A27795

RING

E-RING - steering pump pin

2шт.

29

REF

INSTRUCTION

PUMP ASSEMBLY - steering control, See Figure: 148

1шт.

30

166-24

12 PT SCREW,Flg, 5/16" - 18 x 3/4", Gr 8

SCREW - (5/16 x 3/4" Ferry Cap)

4шт.

31

92-5

LOCK WASHER,5/16"

4шт.

33

A65562

BRACKET

- mounting, steering pump

1шт.

34

13-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

4шт.

35

92-5

LOCK WASHER,5/16"

4шт.

36

9635082

NUT,5/16" - 18, Gr 5

- hex. (5/16" N.C.)

4шт.
