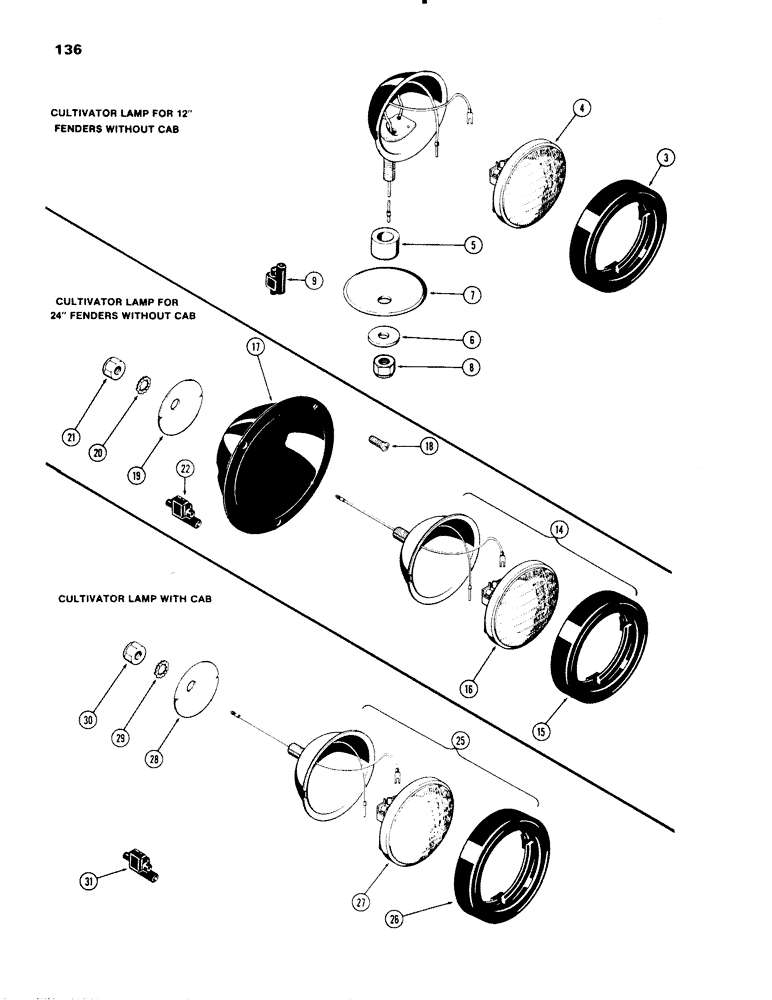

Запчасти Case IH 1270 (136) - CULTIVATOR LAMPS, WITH 12 INCH FENDERS WITHOUT CAB (04) - ELECTRICAL SYSTEMS
№
Артикул
Название
Примечание
Количество
A60510
LAMP
ATTACHMENT - lamp, Includes Ref: 3-9
1шт.
A59724
HEADLAMP
LAMP ASSEMBLY - cultivator, Includes Ref: 3-5
2шт.
3
A25213
RETAINER
- sealed beam
1шт.
4
A42294
SEALED BEAM UNIT
BULB - sealed beam
1шт.
5
D37048
BUSHING
- lamp pivot
1шт.
6
D37049
WASHER
- lamp mounting
2шт.
7
A59725
SPACER
BRACE - lamp
2шт.
8
129-125
NUT,1/2"-20, G5
2шт.
9
A62556
CONNECTOR, ELEC
CONNECTOR - splice
2шт.
A60511
LAMP
ATTACHMENT - lamp, Includes Ref: 14-22
1шт.
14
A59723
LAMP
ASSEMBLY - front cultivator, w/ 24" fenders without cab, Includes Ref: 15, 16
2шт.
15
A25213
RETAINER
- sealed beam, with 24" fenders without cab
1шт.
16
A42294
SEALED BEAM UNIT
BULB - sealed beam, with 24' fenders without cab
1шт.
17
A59698
BEZEL
- lamp mounting, R.H., with 24" fenders without cab
1шт.
17
A59699
BEZEL
- lamp mounting, L.H., with 24" fenders without cab
1шт.
18
187-1062
SELF-TAP SCREW,Cross Oval Hd, #10 x 1/2"
SCREW - #10 x 1/2" N.C. self-tapping, Phillips oval hd, with 24" fenders without cab
6шт.
19
A59702
RETAINER
- cultivator lamp, with 24" fenders without cab
2шт.
20
193-87
LOCK WASHER,Ext-Int Tooth, 1/2"
WASHER, LOCK, , with 24" fenders w/o Cab Ext-Int Tooth, 1/2"
2шт.
21
129-105
NUT,Hex, 1/2" - 13, Gr 5
with 24" fenders w/o Cab 1/2"-13, G5
2шт.
22
A62556
CONNECTOR, ELEC
CONNECTOR - splice, with 24" fenders without cab
1шт.
A61753
ATTACHMENT
- lamp, with cab, Includes Ref: 25-31
1шт.
25
A59723
LAMP
ASSEMBLY - front cultivator, with cab, Includes Ref: 26, 27
2шт.
26
A25213
RETAINER
- sealed beam, with cab
2шт.
27
A42294
SEALED BEAM UNIT
BULB - sealed beam, with cab
1шт.
28
A59702
RETAINER
- front cultivator lamp, with cab
2шт.
29
193-87
LOCK WASHER,Ext-Int Tooth, 1/2"
WASHER, LOCK, , w/Cab Ext-Int Tooth, 1/2"
2шт.
30
129-105
NUT,Hex, 1/2" - 13, Gr 5
w/Cab 1/2"-13, G5
2шт.
31
A62556
CONNECTOR, ELEC
CONNECTOR - splice, with cab
2шт.
193-52
LOCK WASHER,Ext Csk Tooth, 1/4"
WASHER, LOCK, , for better grounding, with cab Ext Csk Tooth, 1/4"
1шт.
Выбрано товаров: 29
