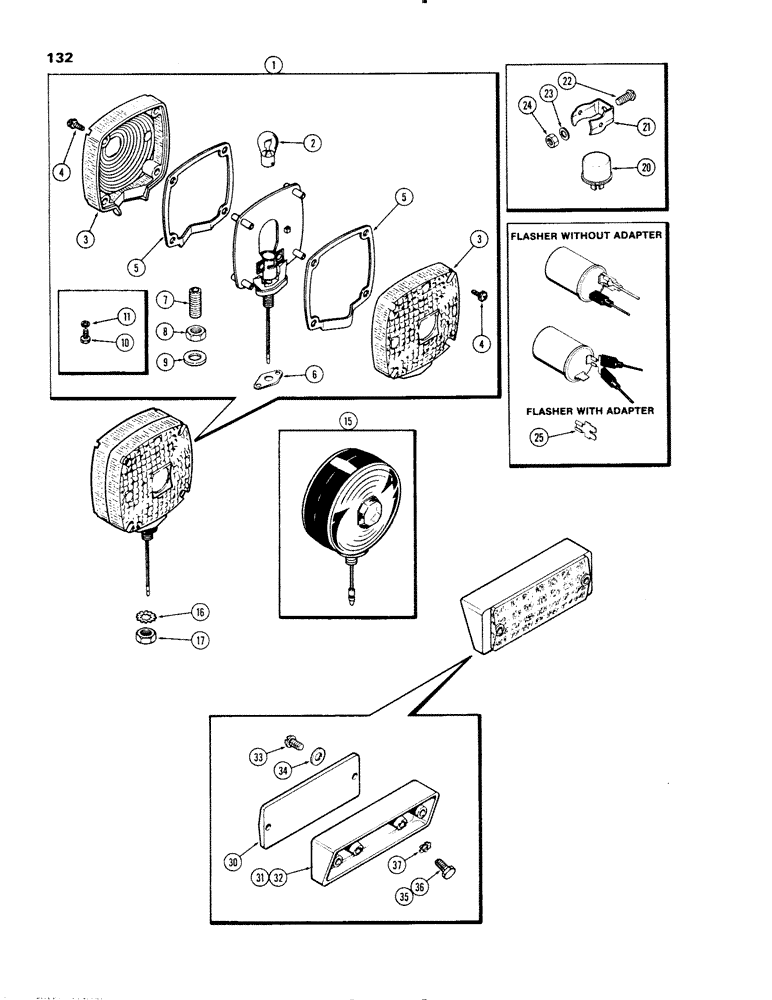

Запчасти Case IH 1270 (132) - WARNING LAMP (04) - ELECTRICAL SYSTEMS

1

A44201

LIGHT ASSY.

LAMP ASSEMBLY - flasher (Tractor without cab order A143600), Includes Ref: 2-11

2шт.

2

A41264

BULB,#1156, 12V

Lamp #1156, 12V

1шт.

A44202

KIT

- lens replacement

1шт.

3

NSS

NOT SOLD SEPARAT

LENS - lamp amber

2шт.

4

187-1083

SELF-TAP SCREW,Cross Pan Hd, #8 x 5/8"

SCREW - #8-32 x 3/4" round head Phillister type

8шт.

5

A43731

GASKET

- lens

2шт.

6

F63435

GASKET

- lamp base

1шт.

7

A45118

STUD

- mounting (without cab)

1шт.

8

25-118

NUT,1/2"-20, G5

- 1/2" NF hex (without cab)

1шт.

9

95-8

WASHER,1/2"

(9/16 x 1-3/8 x 7/64") (without cab) 1/2"

1шт.

10

113-39

BOLT,Hex, 1/4" - 20 x 1/2", Gr 2

- 1/4 x 1/2" NC hex mounting (with cab)

2шт.

11

192-19

LOCK WASHER,Helical Spring, 0.256" ID, CST, ZND

WASHER, LOCK, (w/Cab) 1/4"

2шт.

15

A143600

LAMP

ASSEMBLY - flasher (Use without cab only)

2шт.

A41264

BULB,#1156, 12V

Replacement #1156, 12V

1шт.

16

193-87

LOCK WASHER,Ext-Int Tooth, 1/2"

WASHER, LOCK, , w/o Cab Ext-Int Tooth, 1/2"

2шт.

17

129-125

NUT,1/2"-20, G5

w/o Cab 1/2"-20, G5

2шт.

18

A34862

KIT

ADAPTER KIT - flasher by-pass

1шт.

20

A65550

FLASHER UNIT

FLASHER - element

1шт.

21

A34869

BRACKET

- flasher element mounting

1шт.

22

173-217

SCREW,Sl Rnd Hd, 5/16" - 18 x 3/4"

- 5/16 x 3/4" NC round head machine

1шт.

23

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

24

9635082

NUT,5/16" - 18, Gr 5

1шт.

25

A34862

KIT

ADAPTER KIT - flasher by-pass (Required for steady light) (See Inset)

1шт.

30

A62415

REFLECTOR

- red

2шт.

31

A62416

BRACKET

- reflector, without cab, red

2шт.

32

A64302

BRACKET

- reflector, with cab, red

2шт.

33

187-1058

SELF-TAP SCREW,Slotted Pan Hd, #10 x 5/8"

SCREW - #10 x 5/8" round head self-tapping, red reflector

4шт.

34

195-512

WASHER,#10

- 7/32 x 7/16 x 1/16", red reflector

4шт.

35

187-1043

SCREW

- 1/4 x 1/2" hex head, self-tapping (Used without cab), red reflector

4шт.

36

187-1073

SELF-TAP SCREW,Hex Washer, 1/4" - 20 x 5/8"

SCREW - 1/4 x 5/8" hex head, self-tapping (Used with cab), red reflector

4шт.

37

193-73

LOCK WASHER,Ext-Int Tooth, 1/4"

WASHER - Shakeproof, 1/4" internal/external, red reflector

4шт.
