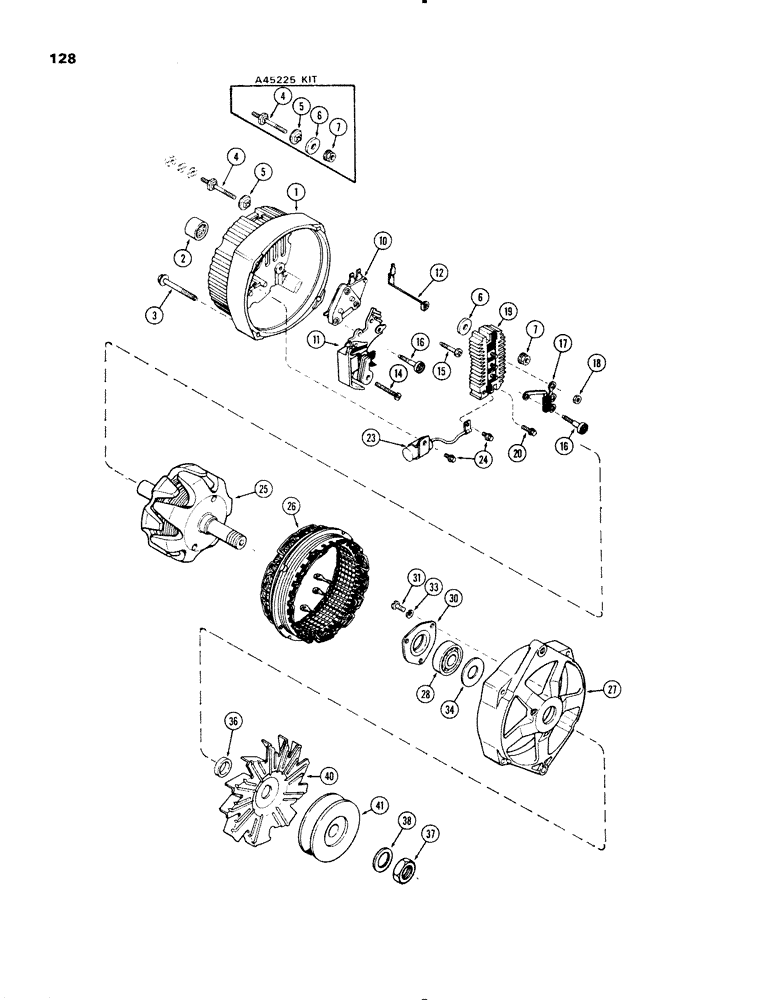

Запчасти Case IH 1270 (128) - ALTERNATOR, DELCO-REMY NUMBER 1102928 (04) - ELECTRICAL SYSTEMS

A147159

ALTERNATOR - 61 amp (Delco #1102928) (Prod. only) (Order A47057 alternator, A43384 fan and A45231 pulley), Includes Ref: 1-38

1шт.

A47057

ALTERNATOR

ALTERNATOR - 61 amp (Delco #1102921) (Less pulley and fan) (Repairs only) (Order A147240), Includes Ref: 1-48

1шт.

87297244

REMAN-ALTERNATOR

Remanufactured Alternator, 12 volt, 61 ampere

1шт.

87297245

CORE-ALTERNATOR

Return Number, Alternator, 12 volt, 61 ampere

1шт.

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

103804A1GV

ALTERNATOR

Value, 12V, 72A

1шт.

103804A1R

REMAN-ALTERNATOR

Reman for New PN A47625

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

ZAP804A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator (Higher Amp version of 72 amp 103804A1R)

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

1

A47041

FRAME

FRAME ASSEMBLY - slip ring end, Includes Ref: 2

1шт.

2

A47046

ROLLER BEARING,0.6699" ID x 0.9375" OD x 0.67"

BEARING - roller

1шт.

3

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT - thru, #10-24 x 1-3/4" hex. head with washer

4шт.

A45225

MULTIPOLE CONNECTOR

TERMINAL KIT - battery, Includes Ref: 4-7

1шт.

4

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

5

NSS

NOT SOLD SEPARAT

INSULATOR

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER - insulating

1шт.

7

NSS

NOT SOLD SEPARAT

NUT ASSEMBLY

2шт.

10

A45213

REGULATOR

REGULATOR - voltage

1шт.

11

A47042

HOLDER

BRUSH HOLDER ASSEMBLY - (Includes brushes)

1шт.

12

A47045

TERMINAL CONNECTOR

TERMINAL - relay

1шт.

14

182-558

SCREW,Slotted Pan Hd, #8-32 x 1 1/4"

SCREW - pivot, #8-32 x 1-1/4" pan hd

1шт.

15

A47043

SCREW,#8 - 32 x 21"

SCREW - ground, brush holder

1шт.

16

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW - insulated, brush holder

2шт.

17

A45219

DIODE ELEMENT

DIODE - trio

1шт.

18

129-16

NUT,#8-32

NUT, #8-32

3шт.

19

A45394

RECTIFIER

RECTIFIER BRIDGE

1шт.

20

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW - rectifier bridge (#8-32 x 1")

1шт.

23

A45017

CAPACITOR

CAPACITOR ASSEMBLY - (Includes bracket) (Replaces A45226)

1шт.

24

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW - capacitor (#8-32 x 3/8")

2шт.

25

A47047

ROTOR

ROTOR ASSEMBLY - (Includes slip rings)

1шт.

26

A47049

STATOR

STATOR ASSEMBLY

1шт.

27

A45229

FRAME

FRAME - drive end

1шт.

28

A45230

BEARING ASSY

BEARING - ball, drive end

1шт.

30

A44433

PLATE

PLATE - bearing retainer

1шт.

31

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

SCREW - bearing plate, #10-24 x 3/8" rd. hd.

3шт.

33

195-512

WASHER,#10

WASHER - 7/32 x 7/16 x 1/16"

3шт.

34

A45232

WASHER

WASHER - grease slinger, bearing

1шт.

36

A72047

COLLAR

COLLAR - outer, rotor shaft

1шт.

37

A25546

NUT

NUT - pulley and, Serial Range: fan-shaft

1шт.

38

R16171

SPRING WASHER

WASHER - lock

1шт.

40

A43384

FAN

FAN - alternator (Replaces A51560)

1шт.

41

A45231

PULLEY

PULLEY - drive, alternator - 3.221 +/- .025 Diameter Hub OD 1.12

1шт.
