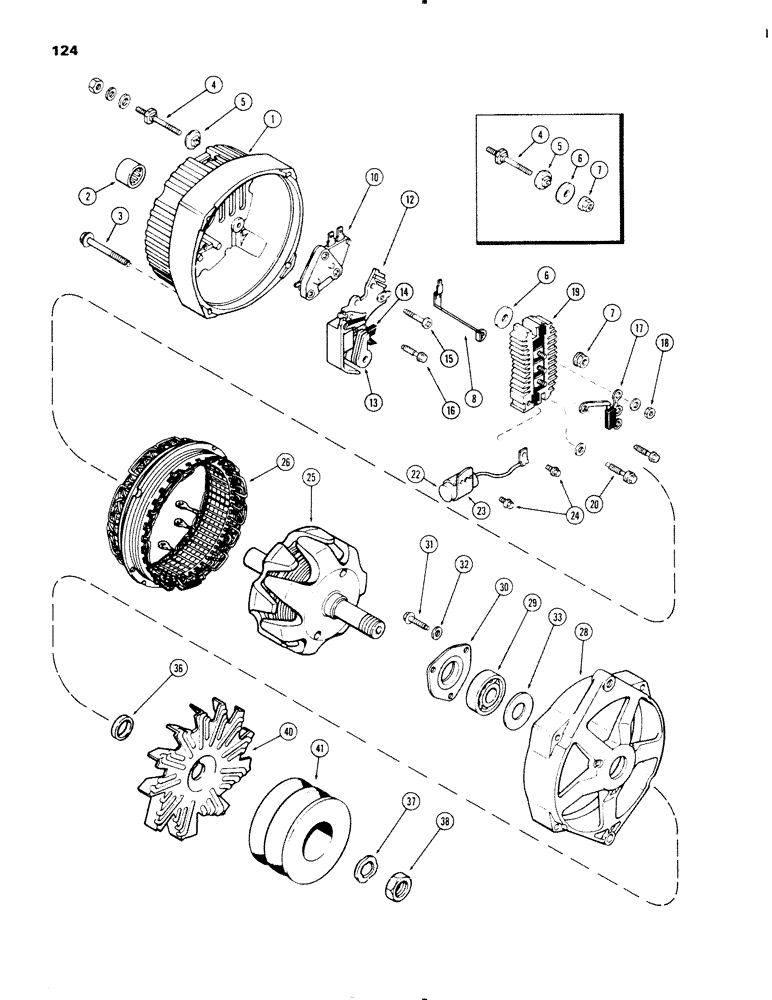

Запчасти Case IH 1270 (124) - A47044 ALTERNATOR, 72 AMPERE DELCO-REMY (04) - ELECTRICAL SYSTEMS

A47044

ALTERNATOR

ALTERNATOR ASSEMBLY - (Delco #1102922), Includes Ref: 1-38

1шт.

A47625

ALTERNATOR

ALTERNATOR - 12 Volt 72 ampere

1шт.

103804A1GV

ALTERNATOR

Value

1шт.

103804A1R

REMAN-ALTERNATOR

Reman for New PN A47625

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

ZAP804A1R

REMAN-ALTERNATOR

Remanufactured 12 VOLT, 100 AMP Alternator (Higher Amp version of 72 amp 103804A1R)

1шт.

103804A1C

CORE-ALTERNATOR

Return Number

1шт.

1

A47041

FRAME

FRAME ASSEMBLY - slip ring end, Includes Ref: 2

1шт.

2

A47046

ROLLER BEARING,0.6699" ID x 0.9375" OD x 0.67"

BEARING - roller

1шт.

3

163-6

SCREW,Hex, #10 - 24 x 1 3/4"

BOLT - through, #10-24 x 1-3/4" hex head with washer

4шт.

A45225

MULTIPOLE CONNECTOR

KIT - terminal, battery, Includes Ref: 4-7

1шт.

4

NSS

NOT SOLD SEPARAT

STUD - terminal

1шт.

5

NSS

NOT SOLD SEPARAT

INSULATOR - stud

1шт.

6

NSS

NOT SOLD SEPARAT

WASHER - insulating

1шт.

7

NSS

NOT SOLD SEPARAT

NUT - terminal

2шт.

8

A47045

TERMINAL CONNECTOR

TERMINAL - relay

1шт.

10

A45213

REGULATOR

REGULATOR - voltage

1шт.

A47042

HOLDER

BRUSH HOLDER ASSEMBLY - (Includes brushes), Includes Ref: 12-14

1шт.

12

NSS

NOT SOLD SEPARAT

HOLDER - brush

1шт.

13

A43678

SPRING

SPRING - brush

2шт.

14

A47626

COMMUTATOR BRUSH

BRUSH - commutator

2шт.

15

A47043

SCREW,#8 - 32 x 21"

SCREW - brush holder, grounded (#8-32 x 1-1/16" Phillips)

1шт.

16

A45223

SCREW,Spcl, #8 - 32 x 1 1/8"

SCREW - brush holder, insulated

2шт.

17

A45219

DIODE ELEMENT

DIODE - trio

1шт.

18

129-16

NUT,#8-32

NUT, #8-32

3шт.

19

A45394

RECTIFIER

RECTIFIER - bridge

1шт.

20

A45221

SCREW,Hex Wshr Hd, #8 - 32 x 0.99"

SCREW - #8-32 x 1"

1шт.

22

A45017

CAPACITOR

CAPACITOR ASSEMBLY - (Includes bracket ), Includes Ref: 23

1шт.

23

A45227

CLAMP

BRACKET - capacitor

1шт.

24

A45228

SELF-TAP SCREW,Hex Wash Hd, #8-32 x .59", Spc

SCREW - #8-32 x 3/8"

2шт.

25

A47047

ROTOR

ROTOR ASSEMBLY - (Includes slip rings)

1шт.

26

A47040

STATOR

STATOR ASSEMBLY - field

1шт.

28

A45229

FRAME

FRAME - drive end

1шт.

29

A45230

BEARING ASSY

BEARING - ball, drive end

1шт.

30

A44433

PLATE

PLATE - bearing retainer

1шт.

31

173-210

SCREW,Sl Rnd Hd, #10 - 24 x 3/8"

SCREW - #10-24 x 3/8" round head

3шт.

32

195-512

WASHER,#10

WASHER - 7/32 x 7/16 x 1/16"

3шт.

33

A45232

WASHER

WASHER - bearing, grease slinger

1шт.

36

A72047

COLLAR

COLLAR - rotor shaft outer, 43/64 x 7/8 x 13/64"

1шт.

37

R16171

SPRING WASHER

WASHER - lock

1шт.

38

A25546

NUT

NUT - pulley and fan mounting

1шт.

40

A43384

FAN

FAN - ALTERNATOR

1шт.

41

L59716

PULLEY

PULLEY - drive, alternator

1шт.
