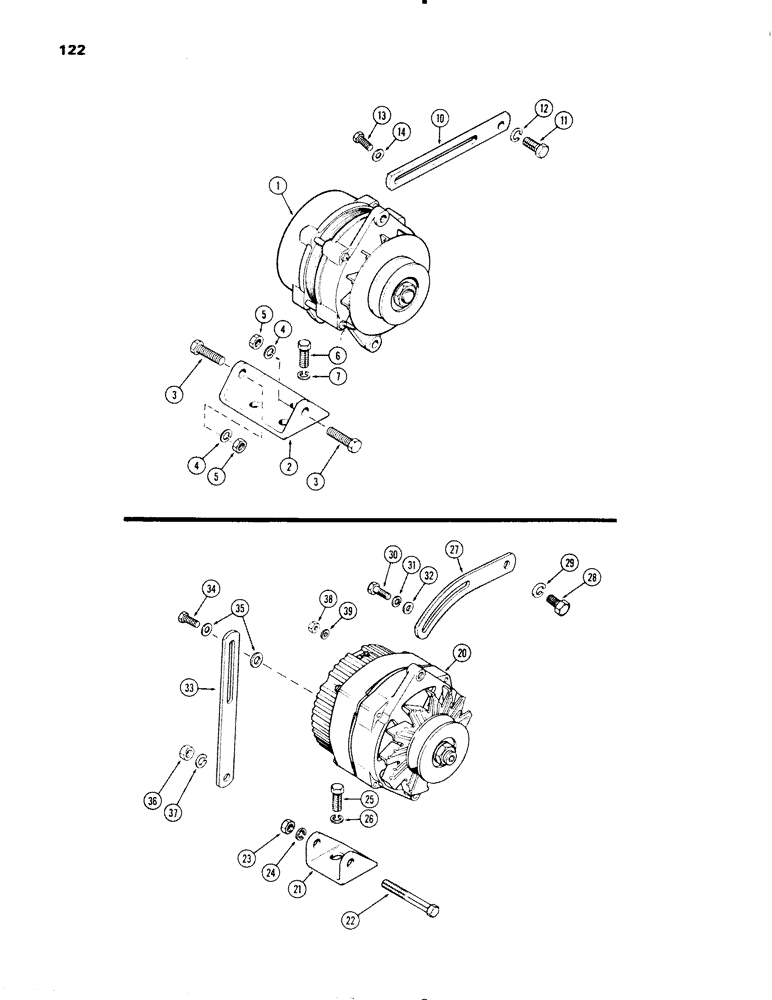

Запчасти Case IH 1270 (122) - ALTERNATOR MOUNTING, PRESTOLITE (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

ALTERNATOR (Prestolite), See Figure: 126

1шт.

2

A61063

BRACKET

- alternator mounting

1шт.

3

113-209

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

(Alternator to bracket) Hex, 3/8"-16 x 1 1/2", G5

2шт.

4

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

5

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

6

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Mounting bracket to timing gear cover Hex, 3/8"-16 x 1", G5, Full Thd

3шт.

7

92-6

LOCK WASHER,3/8"

3шт.

10

A59167

STRAP

- alternator adjusting

1шт.

11

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Alternator strap to water pump housing Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

12

92-6

LOCK WASHER,3/8"

1шт.

13

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Strap to alternator Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

14

195-521

WASHER,5/16", SAE

- 11/32 x 11/16 x 1/16"

1шт.

20

REF

INSTRUCTION

ALTERNATOR - (Delco), See Figure: 128

1шт.

21

A160391

BRACKET

- alternator mounting (Replaces A38492), Delco-Remy

1шт.

22

113-341

BOLT,Hex, 7/16" - 14 x 8-1/2", Gr 2

- 3/8 x 3" NC hex, Delco- Remy

1шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, , Delco- Remy 3/8"-16, G5

1шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, , Delco-Remy 3/8"

1шт.

25

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Bracket to cover, Delco-Remy Hex, 3/8"-16 x 1", G5, Full Thd

2шт.

26

92-6

LOCK WASHER,3/8"

Delco-Remy 3/8"

2шт.

27

A34705

ADJUSTER

STRAP - alternator adjusting (Replaces A135718), Delco-Remy

1шт.

28

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

Delco-Remy Hex, 3/8"-16 x 1", G5, Full Thd

1шт.

29

92-6

LOCK WASHER,3/8"

Delco-Remy 3/8"

1шт.

30

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Delco-Remy Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

31

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, , Delco-Remy 5/16"

1шт.

32

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64", Delco-Remy

2шт.

33

A59098

STRAP

- support, alternator rear, Delco-Remy

1шт.

34

113-103

BOLT,Hex, 5/16" - 18 x 1", Gr 5

Strap to alternator, Delco-Remy Hex, 5/16"-18 x 1", G5, Full Thd

1шт.

35

195-103

WASHER,5/16"

- 11/32 x 11/16 x 1/16", Delco-Remy

2шт.

36

25-106

NUT,3/8"-16, G5

- 3/8" hex, Delco-Remy

1шт.

37

92-6

LOCK WASHER,3/8"

Delco-Remy 3/8"

1шт.

38

129-18

NUT,#12-24

- hex. (alternator terminal), Delco-Remy #12-24

1шт.

39

192-17

LOCK WASHER,#12

Washer, Lock, , Delco-Remy #12

1шт.
