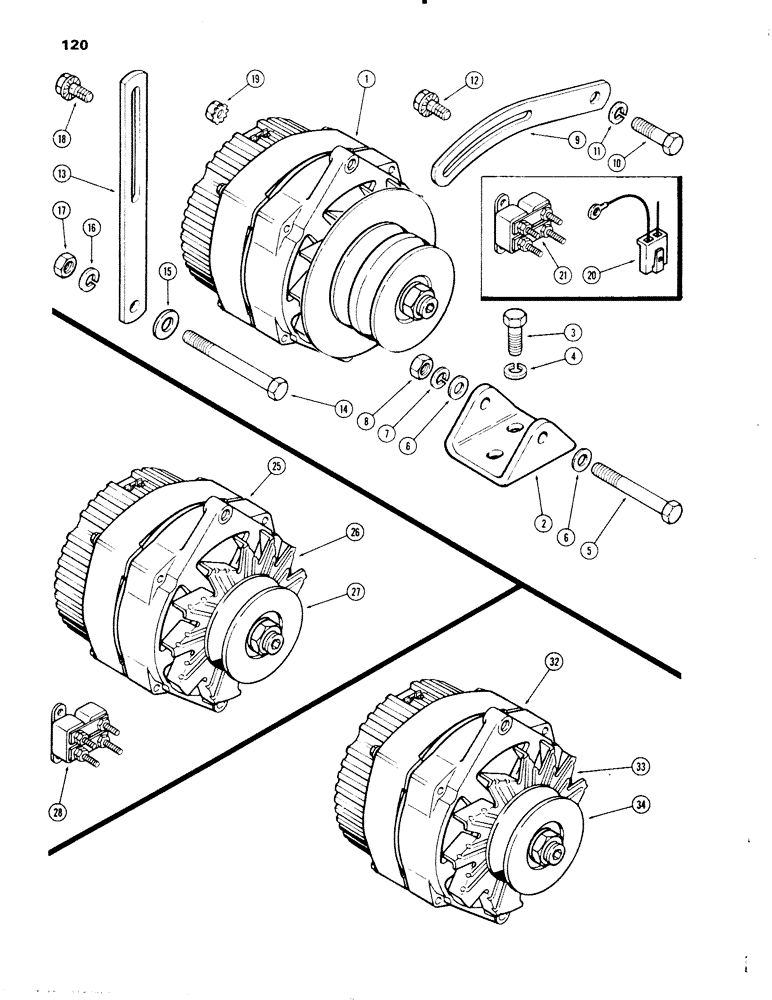

Запчасти Case IH 1270 (120) - ALTERNATOR CONVERSION KIT, TO CONVERT FROM 55 AMPERE PRESTOLITE TO 72 AMPERE DELCO-REMY (04) - ELECTRICAL SYSTEMS

A147241

ALTERNATOR

KIT - alternator, Includes Ref: 1-21

1шт.

1

A47044

ALTERNATOR

ASSEMBLY - 72 ampere, See Figure: 124

1шт.

2

A139871

BRACKET

- alternator mounting

1шт.

3

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

3шт.

4

92-6

LOCK WASHER,3/8"

3шт.

5

113-247

BOLT,Hex, 3/8" - 16 x 3-1/4", Gr 5

1шт.

6

D41740

WASHER

- 45/64 x 1 x 7/64"

2шт.

7

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

1шт.

9

A34705

ADJUSTER

STRAP - alternator adjusting

1шт.

10

13-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5, Full Thd

1шт.

11

92-6

LOCK WASHER,3/8"

1шт.

12

121-113

BOLT,Hex Serr, 5/16" - 18 x 3/4"

- 5/16 x 3/4" NC Whizlock

1шт.

13

A59098

STRAP

- support, alternator rear

1шт.

14

13-660

BOLT,Hex, 3/8" - 16 x 3-3/4", Gr 5

- 3/8 x 3-3/4" NC hex, grade 5

1шт.

15

195-103

WASHER,5/16"

- 3/8 x 7/8 x 5/64"

1шт.

16

92-6

LOCK WASHER,3/8"

1шт.

17

25-106

NUT,3/8"-16, G5

- 3/8" NC hex

1шт.

18

121-113

BOLT,Hex Serr, 5/16" - 18 x 3/4"

- 5/16 x 3/4" NC Whizlock

1шт.

19

193-1008

NUT,Keps, w/LW,#12-24

- #12-24 Keps

1шт.

20

A141700

WIRE HARNESS,Adaptor

- engine harness

1шт.

21

A147004

BREAKER

- circuit, 100 amperes

1шт.

A147239

KIT

- alternator conversion, to a 55 Ampere Delco to a 72 Ampere Delco, Includes Ref: 25-28

1шт.

25

A47044

ALTERNATOR

- 72 ampere, See Figure: 124, to Convert a 55 Ampere Delco to a 72 Ampere Delco

1шт.

26

A43384

FAN

- alternator, to Convert a 55 Ampere Delco to a 72 Ampere Delco

1шт.

27

A45231

PULLEY

- single groove, to Convert a 55 Ampere Delco Alternator to a 72 Ampere Delco Alternator

1шт.

28

A147004

BREAKER

- circuit (100 ampere), to Convert a 55 Ampere Delco Alternator to a 72 Ampere Delco Alternator

1шт.

A147240

KIT

- alternator conversation, to a 61 Ampere Delco to a 72 Ampere Delco, Includes Ref: 32-34

1шт.

32

A47044

ALTERNATOR

- 72 ampere, See Figure: 124, to Convert a 61 Ampere Delco to a 72 Ampere Delco

1шт.

33

A43384

FAN

- alternator, to Convert a 61 Ampere Delco to a 72 Ampere Delco

1шт.

34

A45231

PULLEY

- single groove, 3.221 +/- .025 diameter hub OD 1.12 hub ID after plating .669/.6720" to Convert a 61 Ampere Delco Alternator to a 72 Ampere Delco Atlernator

1шт.
