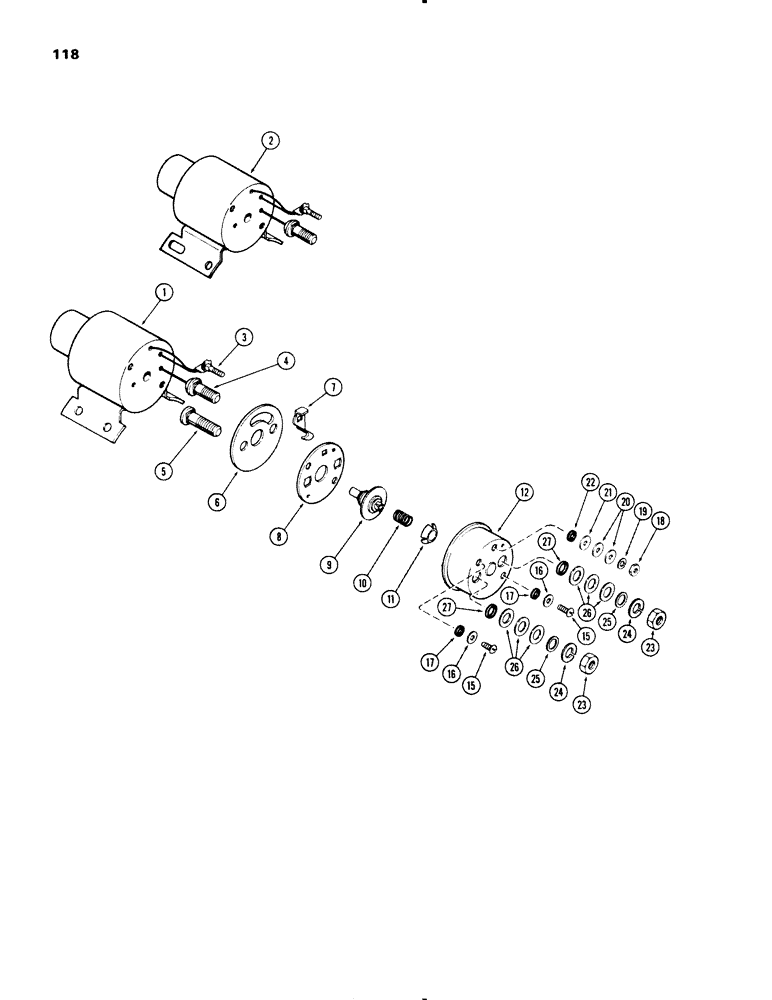

Запчасти Case IH 1270 (118) - STARTING MOTOR SOLENOID (04) - ELECTRICAL SYSTEMS

A43846

SOLENOID

ASSEMBLY - (Delco #1115528) (For A64907 or A149056 starter) (Order A44817), Includes Ref: 1-27

1шт.

A44817

SOLENOID

ASSEMBLY - (Delco #1115544) (For A145555 starter), Includes Ref: 1-27

1шт.

1

NSS

NOT SOLD SEPARAT

CASE AND COIL ASSEMBLY - (For A43846)

1шт.

2

NSS

NOT SOLD SEPARAT

CASE AND COIL ASSEMBLY - (For A44817)

1шт.

3

A42090

TERMINAL CONNECTOR

TERMINAL - solenoid switch

1шт.

4

A42383

TERMINAL CONNECTOR

TERMINAL - solenoid motor

1шт.

5

A42387

SCREW,3/8" - 16 x 1.46"

TERMINAL - solenoid battery

1шт.

6

A42377

GASKET

- solenoid cover

1шт.

7

A42384

CLIP

- solenoid terminal

1шт.

8

A42386

INSULATOR

- solenoid cover

1шт.

9

A42385

CONTACT

- solenoid

1шт.

10

A42059

SPRING

- contact return

1шт.

11

A42391

INSULATOR

- solenoid cover cup

1шт.

12

A42388

COVER

- solenoid

1шт.

15

A42380

SCREW,#10 - 32 x 9/16"

- #10 N.F. nylock

2шт.

16

A42378

WASHER

- 3/16 x 1/2 x 1/32"

2шт.

17

A42392

WASHER

- 3/16 x 21/64 x 3/32" rubber

2шт.

18

129-37

NUT,#10-32

1шт.

19

80684

LOCK WASHER,4.9mm ID x 8.48mm OD x 1.19mm Thk

WASHER, LOCK, #10

1шт.

20

R16177

WASHER

- 3/16 x 1/2 x 3/64"

2шт.

21

A42390

WASHER

- 3/16 x 1/2 x 1/16"

1шт.

22

A42392

WASHER

- 3/16 x 21/64 x 3/32" rubber

1шт.

23

129-103

NUT,Hex, 3/8" - 16, Gr 5

NUT, 3/8"-16, G5

2шт.

24

192-21

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

25

R15013

WASHER

- 25/64 x 11/16 x 1/16"

2шт.

26

A42379

WASHER

- 25/64 x 3/4 x 1/16"

6шт.

27

A42389

WASHER

- 3/8 x 17/32 x 3/32" rubber

2шт.
