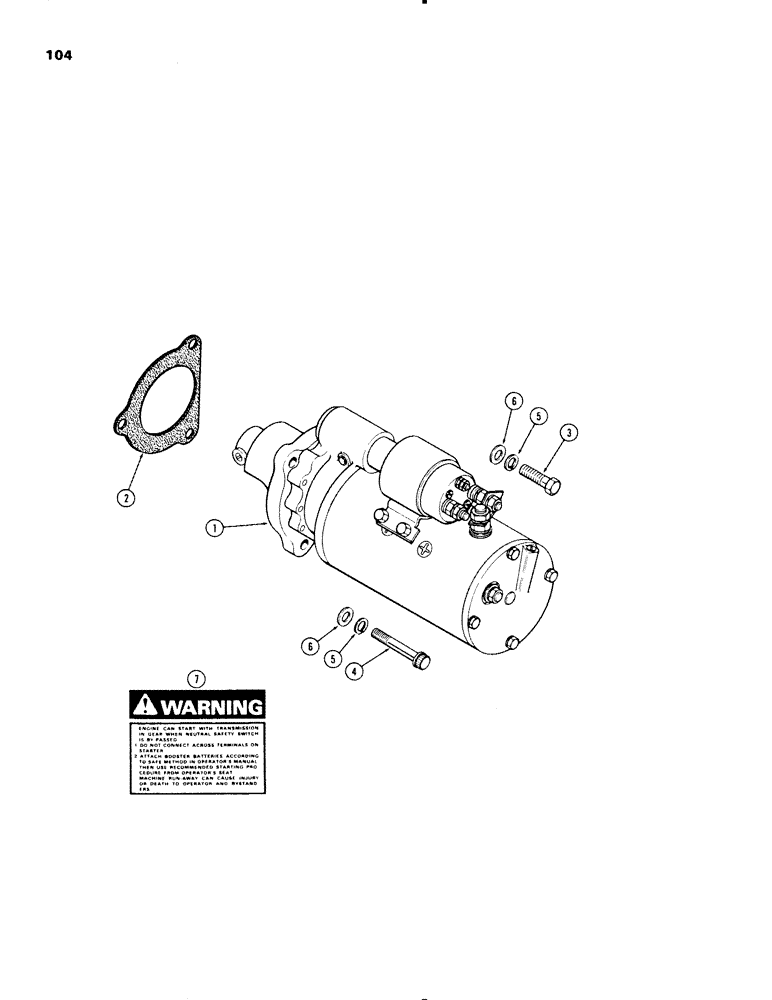

Запчасти Case IH 1270 (104) - STARTING MOTOR (04) - ELECTRICAL SYSTEMS

REF

INSTRUCTION

STARTER, See Figures: 106, 110

1шт.

2

A27933

GASKET

- starting motor

1шт.

3

113-2437

PREV TORQUE BOLT,Locking, 1/2"-13 x 1 3/4", G5

BOLT - 1/2 x 1-3/4" N.C. hex. (Poly-Lok)

2шт.

4

166-94

12 PT SCREW,Flg, 1/2" - 13 x 3 1/4", Gr 8

SCREW - 1/2 x 3-1/4" N.C. Ferry hd. cap

1шт.

5

92-8

LOCK WASHER,1/2"

3шт.

6

L30674

WASHER

- 17/32 x 1 x 1/8"

3шт.

7

321-3709

DECAL

- Warning, jumper starting (on starter)

1шт.
