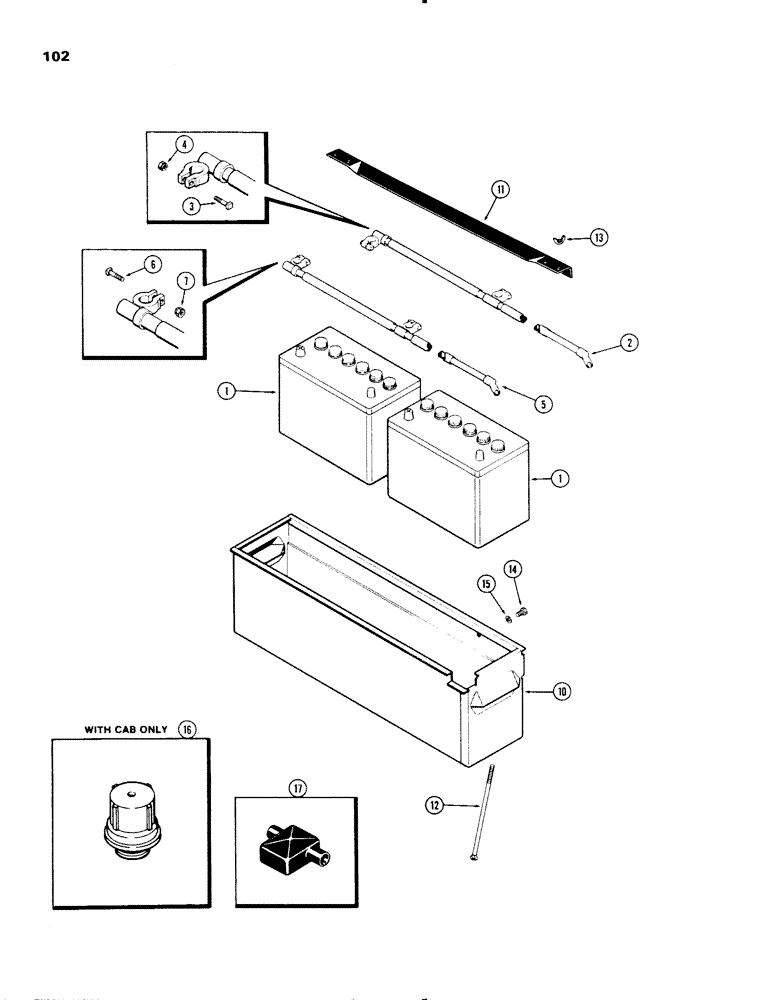

Запчасти Case IH 1270 (102) - BATTERY, CABLES AND BOX (04) - ELECTRICAL SYSTEMS

1

A38411

DRY BATTERY

- 12 V., used w/o cab

2шт.

1

A60878

BATTERY

- 12 V., used w/cab (non-spill cap) (Order A38411 battery & A60553 caps)

2шт.

2

A59728

CABLE

ASSEMBLY - battery negative (ground), Includes Ref: 3, 4

1шт.

3

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- 5/16 x 1-3/8" N.C. sq. hd

2шт.

4

129-516

NUT

- 5/16" N.C. hex

2шт.

5

A65817

CABLE

ASSEMBLY - battery positive, Includes Ref: 6, 7

1шт.

6

117-108

SQUARE BOLT,5/18" - 16 x 1 3/8", Gr 5

- 5/16 x 1-3/8" N.C. sq. hd

2шт.

7

129-516

NUT

- 5/16" N.C. hex

2шт.

10

A62137

BOX

ASSEMBLY - battery

1шт.

11

A59173

CLAMP

- battery hold down

1шт.

12

11-5160

BOLT

- 5/16 x 10" N.C. carr

2шт.

13

G49020

NUT

- 5/16" N.C. wing

2шт.

14

113-113

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

1шт.

15

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

16

A60553

CAP

- battery, non-spill vent (Used w/cab)

12шт.

17

A139372

CAP

- battery, non-spill (Used 2 middle terminals)

1шт.
