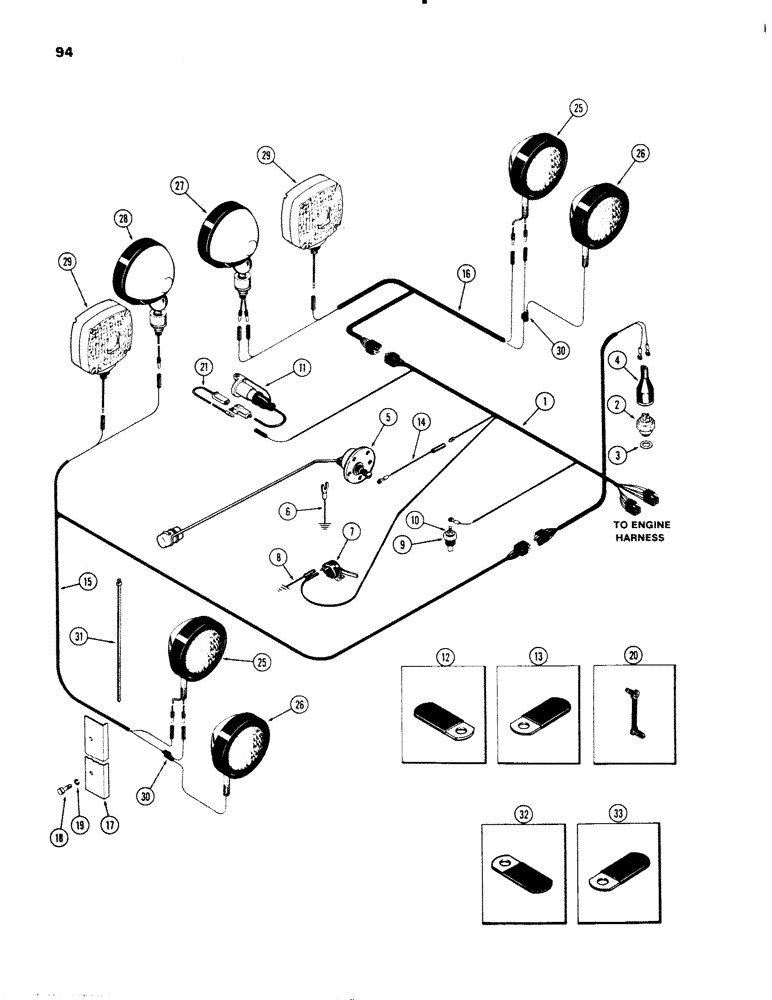

Запчасти Case IH 1270 (094) - TRANSMISSION HARNESS, USED PRIOR TO P.I.N. 8753831 (04) - ELECTRICAL SYSTEMS

1

A65813

HARNESS

- transmission wire

1шт.

2

A20990

SWITCH

- safety, neutral start

1шт.

3

G49402

SHIM,.010" Thk

Neutral start switch .010" Thk

1шт.

4

A20991

BOOT

- neutral start switch

1шт.

5

A63704

TRANSMITTER

UNIT - fuel gauge sending

1шт.

6

A63739

ELECTRICAL WIRE

WIRE - fuel gauge sender, ground

1шт.

7

A33977

SWITCH

- hand brake warning, See Figure: 214

1шт.

8

A59711

ELECTRICAL WIRE

WIRE - hand brake switch ground

1шт.

9

A21462

SENDER UNIT

SENSOR - transmission temperature

1шт.

10

193-1000

NUT,Keps, w/LW,#10-32

- (#10-32 Keps)

1шт.

11

REF

INSTRUCTION

SOCKET - auxiliary outlet (Order from Figure: 96)

1шт.

12

A37179

CLIP

- wire to fender (w/o cab) (2-3/4" long w/13/32" hole)

2шт.

13

A22880

CLIP

- fender harness (2-3/4" long w/17/32" hole)

1шт.

14

A65812

ELECTRICAL WIRE

WIRE - fuel gauge sender

1шт.

15

A63740

HARNESS

- fender wire, R.H., See Figure: 500 w/cab

1шт.

16

A63741

HARNESS

- fender wire, L.H., See Figure: 500 w/cab

1шт.

17

A63744

GUARD

SHIELD - fender wire harness (w/12" fender) (w/o cab)

2шт.

17

A60893

GUARD

SHIELD - fender wire harness (w/24" fender) (w/o cab)

2шт.

18

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

20

A62547

CLAMP

- fender, Serial Range: wire-fender

10шт.

21

A65060

ELECTRICAL WIRE

WIRE - lead (3")

1шт.

25

REF

INSTRUCTION

LAMP - front driving, See Figure 134

2шт.

26

REF

INSTRUCTION

LAMP - front cultivator, See Figure 136

2шт.

27

REF

INSTRUCTION

LAMP - rear flood & tail, See Figure 138

1шт.

28

REF

INSTRUCTION

LAMP - rear flood, See Figure 138

1шт.

29

REF

INSTRUCTION

LAMP - flasher, See Figure 132

2шт.

30

A62556

CONNECTOR, ELEC

CONNECTOR - splice, cultivating lamp

2шт.

31

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - harness (Replaces L11541)

1шт.

32

A22883

CLIP

- fender harness (w/o cab) (6" long w/17/32" hole)

2шт.

33

A38066

CLIP

- fender harness (P.T.O. cover bolt) (2-3/4" long w/11/16" hole)

1шт.
