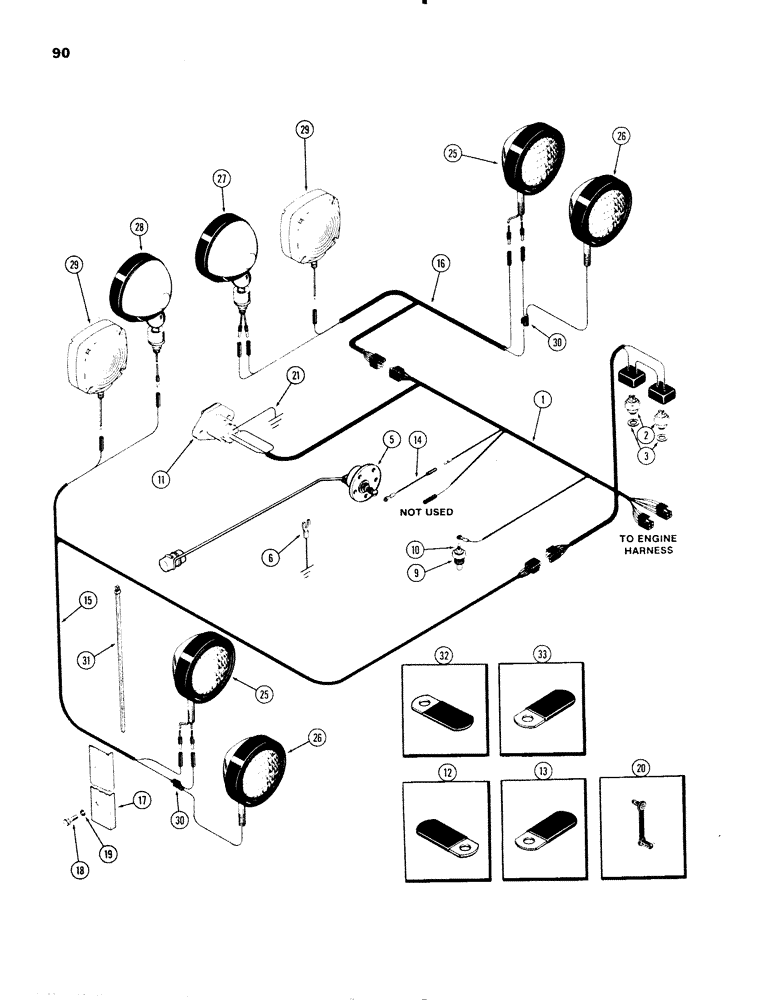

Запчасти Case IH 1270 (090) - TRANSMISSION HARNESS, FIRST USED P.I.N. 8797567 (04) - ELECTRICAL SYSTEMS

1

A139926

HARNESS

- transmission wire

1шт.

2

A139078

SWITCH

- neutral start

2шт.

3

G49402

SHIM,.010" Thk

Neutral start switch .010" Thk

1шт.

5

A63704

TRANSMITTER

UNIT - fuel gauge sender

1шт.

6

A63739

ELECTRICAL WIRE

WIRE - ground, fuel gauge sender

1шт.

9

A21462

SENDER UNIT

SENDER - transmission temperature

1шт.

10

193-1000

NUT,Keps, w/LW,#10-32

- #10-32 keps

1шт.

11

REF

INSTRUCTION

CONNECTOR - auxiliary, 7 way, See Figure: 96

1шт.

12

A37179

CLIP

- wire to fender (w/o cab)

2шт.

13

A57061

CLIP

- fender harness

1шт.

14

A65812

ELECTRICAL WIRE

WIRE - fuel gauge sender

1шт.

15

A66912

HARNESS

- fender, R.H, See Figure: 500 w/cab

1шт.

16

A66914

HARNESS

- fender, L.H., See Figure: 500 w/ cab

1шт.

17

A63744

GUARD

SHIELD - fender harness (12" fender w/o cab)

2шт.

17

A60893

GUARD

SHIELD - fender harness (24" fender w/o cab)

2шт.

18

113-101

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

4шт.

19

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

4шт.

20

A62547

CLAMP

-, Serial Range: harness-fender

10шт.

21

A66893

ELECTRICAL WIRE

WIRE - ground, 7 way connector

1шт.

25

REF

INSTRUCTION

LAMP - front, driving, See Figure: 134

2шт.

26

REF

INSTRUCTION

LAMP - front, cultivating, See Figure 136

2шт.

27

REF

INSTRUCTION

LAMP - rear, flood & tail, See Figure 138

1шт.

28

REF

INSTRUCTION

LAMP - rear flood, See Figure 138

1шт.

29

REF

INSTRUCTION

LAMP - flasher, See Figure 132

2шт.

30

A62556

CONNECTOR, ELEC

CONNECTOR - splice, cultivating lamp

2шт.

31

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - harness (Replaces L11541)

1шт.

32

A22883

CLIP

- fender harness (w/o cab)

2шт.

33

A38066

CLIP

- fender harness (P.T.O. cover bolt)

1шт.
