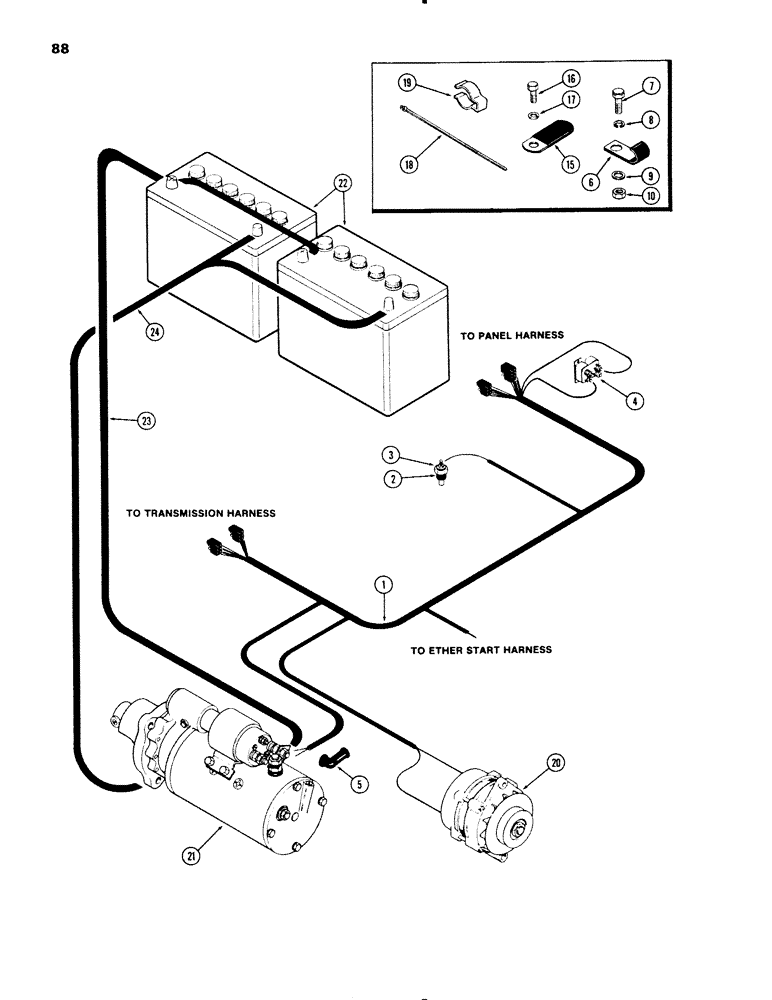

Запчасти Case IH 1270 (088) - ENGINE HARNESS (04) - ELECTRICAL SYSTEMS

1

A135743

HARNESS

- (Use w/Delco alternator & w/turn signals)

1шт.

1

A66909

HARNESS

- (Use w/Delco alternator & w/o turn signals)

1шт.

1

A65986

HARNESS

- (Use w/Prestolite alternator & w/o turn signals)

1шт.

2

A61787

TRANSMITTER

UNIT - engine temperature sending

1шт.

3

193-1000

NUT,Keps, w/LW,#10-32

- (#10 N.F. Keps hex.)

1шт.

4

REF

INSTRUCTION

BREAKER - circuit, See Figure: 96

1шт.

5

A21753

CAP

- starter, positive terminal, rubber

1шт.

6

A143668

CLIP

- engine wire harness

1шт.

7

182-515

SCREW,Sl Pan Hd, 5/16" - 18 x 5/8"

BOLT - 5/16 x 5/8" standard pan head machine (harness clip to firewall baffle)

1шт.

8

192-20

LOCK WASHER,Helical Spring, 0.318" ID, CST, ZND

WASHER, LOCK, 5/16"

1шт.

9

195-103

WASHER,5/16"

- ( plain) 5/16"

1шт.

10

9635082

NUT,5/16" - 18, Gr 5

1шт.

15

A37179

CLIP

- alternator wires

1шт.

16

13-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5, Full Thd

1шт.

17

92-6

LOCK WASHER,3/8"

1шт.

18

L18331

CABLE TIE,375.9mm L, Nylon, Black

STRAP - engine wire harness (Replaces L11541)

1шт.

19

A60894

CLIP

- alternator wire harness to breather tube

1шт.

20

REF

INSTRUCTION

ALTERNATOR ASSEMBLY, See Figure: 128

1шт.

21

REF

INSTRUCTION

STARTER ASSEMBLY, See Figure: 106

1шт.

22

REF

INSTRUCTION

BATTERY - 12 V., See Figure: 102

2шт.

23

A65817

CABLE

- battery, positive, See Figure: 102

1шт.

24

A59728

CABLE

- battery, negative (ground), See Figure: 102

1шт.
