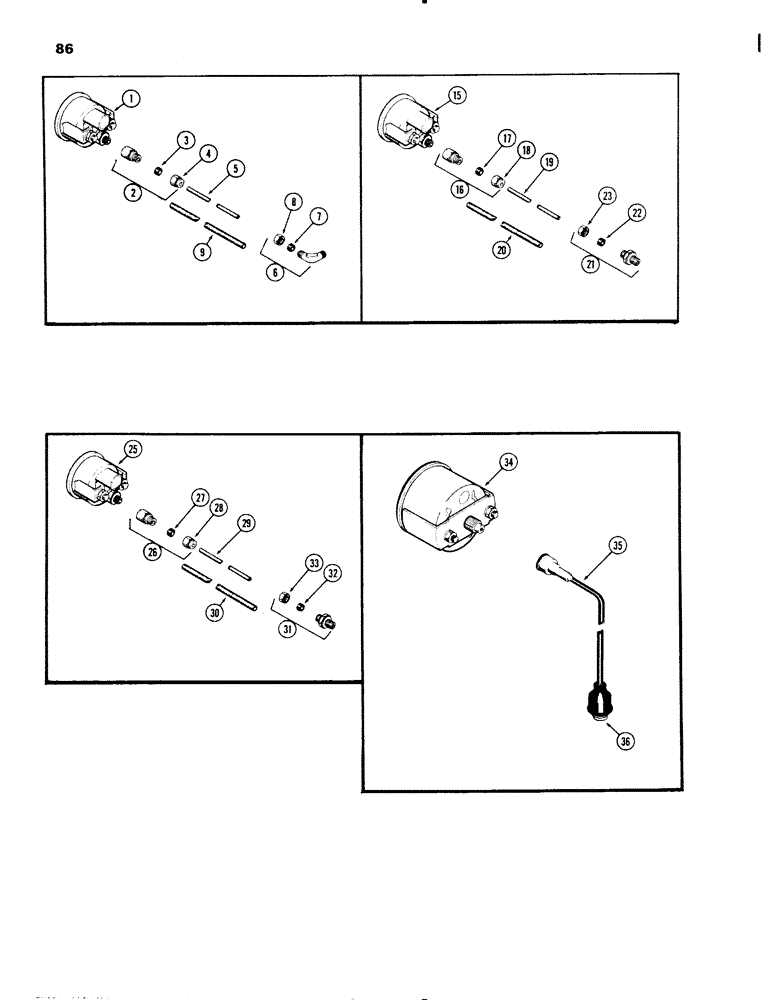

Запчасти Case IH 1270 (086) - OIL PRESSURE GAUGES (04) - ELECTRICAL SYSTEMS

1

A62006

GAUGE

- engine oil pressure

1шт.

2

222-11

FITTING,3/8"-24 Inv Fl x 1/8" NPT Fem

CONNECTOR ASSEMBLY - 3/16" tube x 1/8" P.T. (in gauge), Includes Ref: 3, 4

1шт.

3

222-101

SLEEVE,3/16" Tube

- 3/16" Tube

1шт.

4

222-111

TUBE NUT,7/16" - 24

NUT - 3/16" tube

1шт.

5

A66386

TUBE

- engine oil pressure (3/16" O.D. x 71" copper)

1шт.

6

222-41

ELBOW,90 Degree, 7/16"-24 x 1/8 NPT

ASSEMBLY - 3/16" tube x 1/8" P.T. -90deg. (in eng. block), Includes Ref: 7, 8

1шт.

7

222-101

SLEEVE,3/16" Tube

- 3/16" Tube

1шт.

8

222-111

TUBE NUT,7/16" - 24

NUT - 3/16" tube

1шт.

9

A59680

LOOM

- eng. oil pressure tube (1/4" I.D. x 63" plastic)

1шт.

15

A59684

ELECTRICAL GAUGE

GAUGE - transmission pressure

1шт.

16

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR ASSEMBLY - 1/8" tube x 1/8" P.T. (in gauge), Includes Ref: 17, 18

1шт.

17

222-100

TUBE NUT,1/8" Tube

SLEEVE - 1/8" Tube

1шт.

18

222-110

TUBE NUT,3/8"-24

NUT - 1/8" tube

1шт.

19

A59685

TUBE

- trans. pressure gauge (1/8" O.D. x 77" copper)

1шт.

20

A59686

LOOM

- trans pressure tube (1/4" I.D. x 73" plastic)

1шт.

21

222-20

CONNECTOR, ELEC,3/8"-24 x 1/8" NPTF

CONNECTOR ASSEMBLY - 1/8" tube x 1/8" P.T.-90deg. (in torque tube), Includes Ref: 22, 23

1шт.

22

222-100

TUBE NUT,1/8" Tube

SLEEVE - 1/8" Tube

1шт.

23

222-110

TUBE NUT,3/8"-24

NUT - 1/8" tube

1шт.

25

A65062

GAUGE

- trans. oil filter pressure

1шт.

26

222-10

FITTING,3/8" - 24 JIC x 1/8" NPT

CONNECTOR ASSEMBLY - 1/8" tube x 1/8" P.T. (in gauge), Includes Ref: 27, 28

1шт.

27

222-100

TUBE NUT,1/8" Tube

SLEEVE - 1/8" Tube

1шт.

28

222-110

TUBE NUT,3/8"-24

NUT - 1/8" tube

1шт.

29

A59685

TUBE

- pressure gauge (1/8" O.D. x 77" copper)

1шт.

30

A138167

LOOM

- trans. filter pressure tube (1/4" plastic)

1шт.

31

222-20

CONNECTOR, ELEC,3/8"-24 x 1/8" NPTF

CONNECTOR ASSEMBLY - 1/8" tube x 1/8" P.T.-90deg. (in regulator valve), Includes Ref: 32, 33

1шт.

32

222-100

TUBE NUT,1/8" Tube

SLEEVE - 1/8" Tube

1шт.

33

222-110

TUBE NUT,3/8"-24

NUT - 1/8" tube

1шт.

34

A63735

TACHOMETER

ASSEMBLY, and drive

1шт.

35

A59691

CABLE

ASSEMBLY - tachometer drive, Includes Ref: 36

1шт.

36

A24523

KIT

- repair, tach. cable, drive

1шт.
