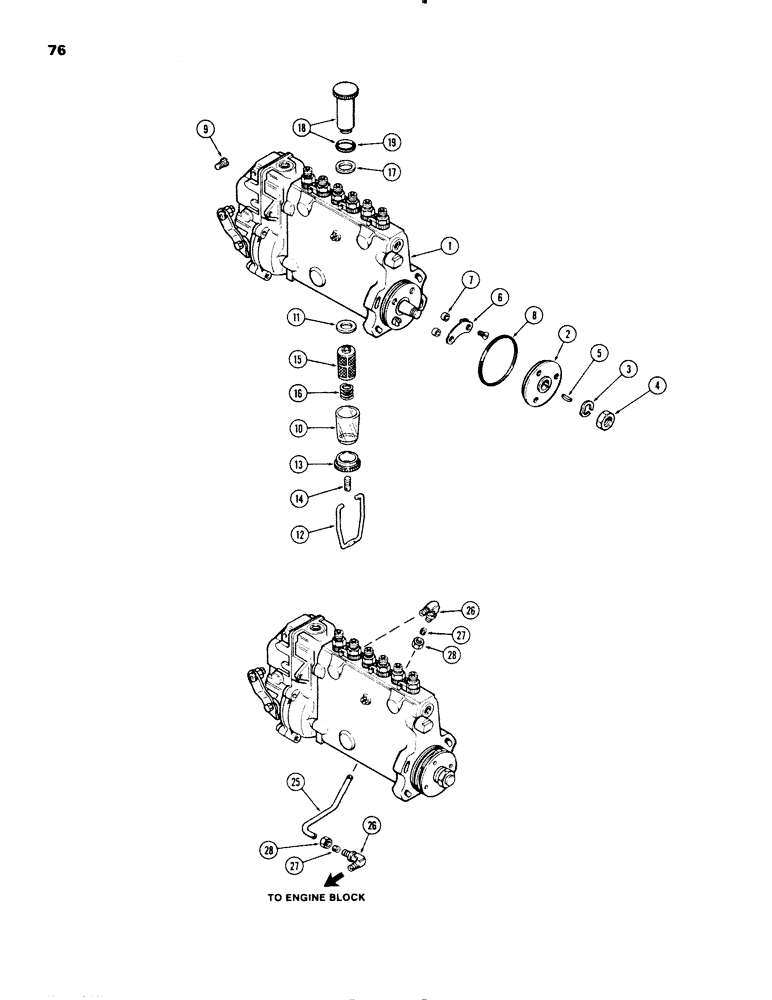

Запчасти Case IH 1270 (076) - FUEL INJECTION PUMP, (451BDT) DIESEL ENGINE, WITH LUBE TUBE ON OUTSIDE (03) - FUEL SYSTEM

1

A138069

PUMP

ASSEMBLY - fuel injection (2200 R.P.M.), Includes Ref: 2-19

1шт.

2

A41857

HUB

- pump drive

1шт.

3

A41851

LOCK WASHER

- lock, hub nut

1шт.

4

A41852

LOCK NUT

- hub retaining

1шт.

5

A41850

KEY

- hub to pump shaft

1шт.

6

A41858

INDICATOR

POINTER - hub adjustment

1шт.

7

A41859

BUSHING

SPACER - pointer

2шт.

8

A41856

O-RING,3mm Thk x 75mm ID

- (2-21/64 x 3-3/16 x 1/8")

1шт.

9

814-4008

BOLT,Hex, M4 x 0.7 x 8mm, Cl 8.8, Full Thd

- stop control cable, 4 x 0.7 x 8 mm (Replaces A44259)

1шт.

10

A43347

BOWL

- filter

1шт.

11

A43346

GASKET

- bowl

1шт.

12

A43350

CLAMP

BAIL - bowl

1шт.

13

A43348

NUT

BAILNUT - bowl seat

1шт.

14

A43349

STUD

- bail-nut retaining

1шт.

15

A43344

FILTER, ELEMENT

ELEMENT - filter

1шт.

16

A43345

SPRING

- element retaining

1шт.

17

A43351

SEAL

- hand primer pump (copper)

1шт.

18

A43343

CARTRIDGE

PUMP ASSEMBLY - hand primer, Includes Ref: 19

1шт.

19

A45342

GASKET

- hand primer pump (Replaces A44761)

1шт.

25

A136903

TUBE

- lube oil, Serial Range: end.-pump

1шт.

26

222-42

ELBOW,90 Degree, 1/2"-24 Fem x 1/8"-27 NPTF

ASSEMBLY - 1/4" tube x 1/8" P.T., Includes Ref: 27, 28

2шт.

27

222-102

SLEEVE,1/4" Tube

1шт.

28

87017024

TUBE NUT,1/2"-24

NUT - 1/4" tube

2шт.
