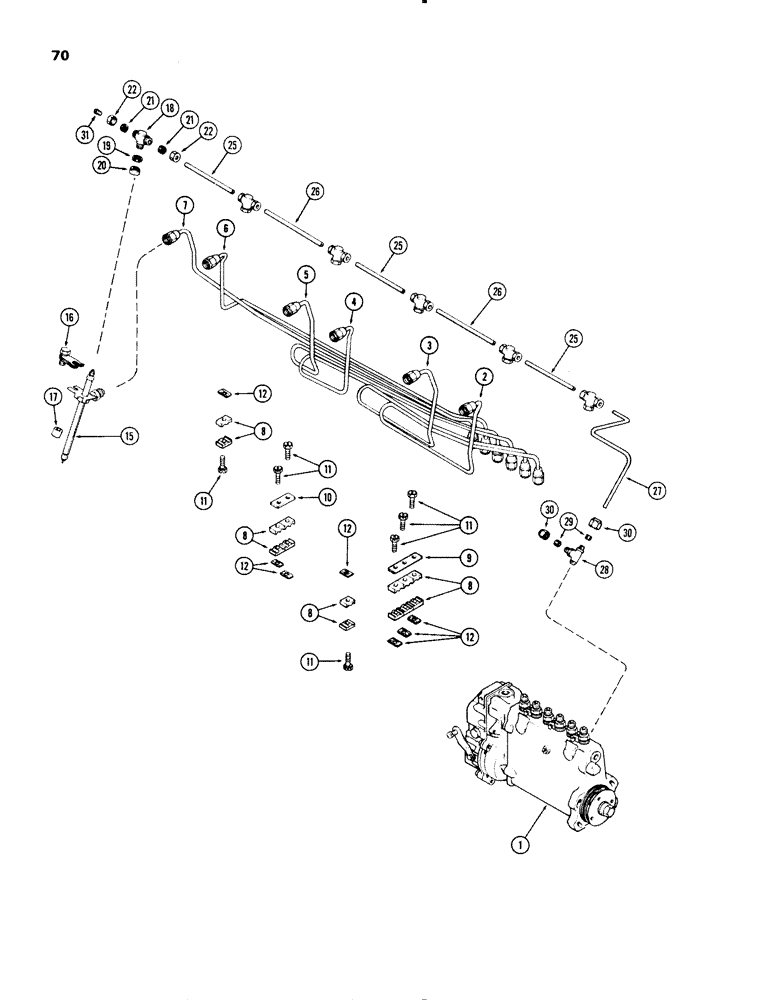

Запчасти Case IH 1270 (070) - FUEL INJECTION SYSTEM, (451BDT) DIESEL ENGINE (03) - FUEL SYSTEM

1

REF

INSTRUCTION

PUMP ASSEMBLY - fuel injection, See Figures: 76, 78

1шт.

2

A58702

TUBE

ASSEMBLY - fuel injection #1 cylinder

1шт.

3

A58703

TUBE

ASSEMBLY - fuel injection #2 cylinder

1шт.

4

A58704

TUBE

ASSEMBLY - fuel injection, #3 cylinder

1шт.

5

A58705

TUBE

ASSEMBLY - fuel injection, #4 cylinder

1шт.

6

A58706

TUBE

ASSEMBLY - fuel injection, #5 cylinder

1шт.

7

A58707

TUBE

ASSEMBLY - fuel injection, #6 cylinder

1шт.

8

A58709

BRACKET

- injection tube

14шт.

9

A58708

PLATE

- injection tube bracket (6 line)

1шт.

10

A58710

PLATE

- injection tube bracket (4 line)

1шт.

11

163-19

SCREW,Sl Hex Wshr Hd, #10 - 24 x 1"

- #10 x 1" N.C. hex. slotted washer head

7шт.

12

131-612

SPRING NUT,Flat, #10 - 24, 0.022" Thk

NUT - #10 flat. Tinnerman

7шт.

15

REF

INSTRUCTION

NOZZLE ASSEMBLY - fuel injection, See Figure: 72

6шт.

16

A58695

CLAMP

ASSEMBLY - nozzle

6шт.

17

A58696

SPACER

- nozzle clamp

6шт.

18

A58960

TEE,1/2" - 25 NPT x 1/2" - 25 NPT x 9/16" - 24 NPT

TEE ASSEMBLY - nozzle leak-off

6шт.

19

A58962

GROMMET,9.14mm ID x 12.82mm OD x 5.28mm Thk

- cap

6шт.

20

A58961

NUT

- cap

6шт.

21

222-102

SLEEVE,1/4" Tube

12шт.

22

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

12шт.

25

A58965

TUBE

- leak-off (4-5/8" long)

3шт.

26

A58964

TUBE

- leak-off (5-5/8" long)

2шт.

27

A58963

TUBE

- leak-off, #1, Serial Range: nozzle-valve

1шт.

28

A59097

VALVE

ASSEMBLY - leak-off check (in injection pump), Includes 29, 30

1шт.

29

222-102

SLEEVE,1/4" Tube

2шт.

30

87017024

TUBE NUT,1/2"-24

NUT - for 1/4" tube

2шт.

31

47-47

RIVET,FH, 1/4" x 7/16"

PLUG - leak-off boot

1шт.
